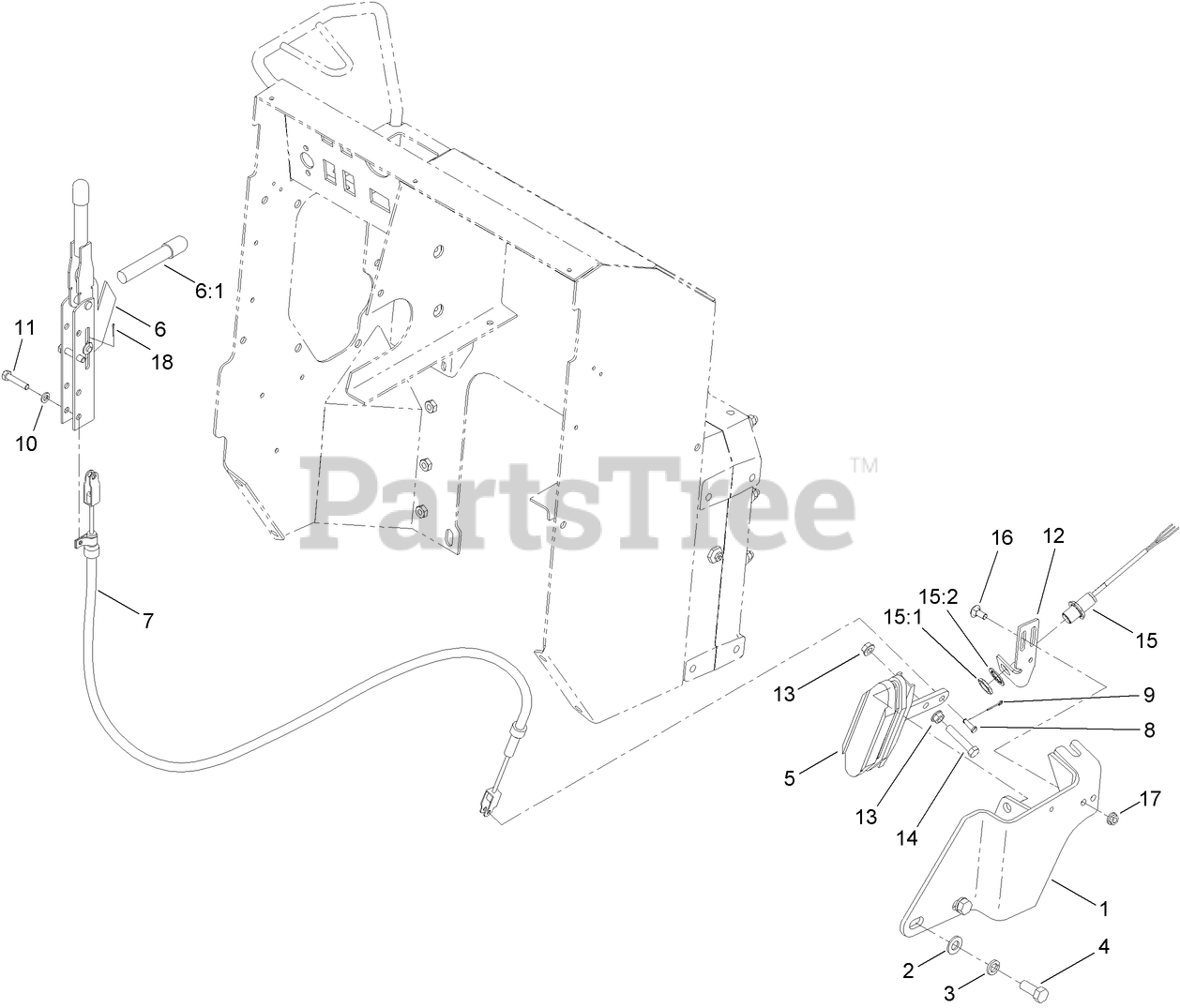

25403 - Toro Pro Sneak 365 Vibratory Plow (SN: 408000000 - 999999999) Brake Assembly Parts Diagram

Pro Sneak 365 Vibratory Plow

Brake Assembly Parts Diagram

  • Title

1

Toro 125-8534-03

BRACKET-BRAKE

$174.99

$

Usually ships in 3-6 days

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro AUH673926

CALIPER ASM

$508.99

$

Usually ships in 3-6 days

0

6

Toro AUH506881

LEVER-BRAKE

$137.99

$

Usually ships in 3-6 days

0

6:1

Toro AUH53942

SPACER

$9.99

$

Usually ships in 3-6 days

0

7

Toro AU119124A2

CABLE-BRAKE

$313.99

$

Usually ships in 3-6 days

0

8

Toro 9321204

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0

9

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 5-1470

SCREW-HH

$0.99

$

In Stock, Qty 9

0

12

Toro 125-8536-03

BRACKET-SENSOR

$51.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-32

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

15

Toro 115-0282

PROXIMITY SENSOR ASM

$247.99

$

Usually ships in 3-6 days

0

15:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

15:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$12.99

$

In Stock, only 4 left!

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0
