25411 E - Toro Trencher Drive for Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) Hydraulic Control Selector Valve Assembly Parts Diagram
Trencher Drive for Pro Sneak 365 Vibratory Plow

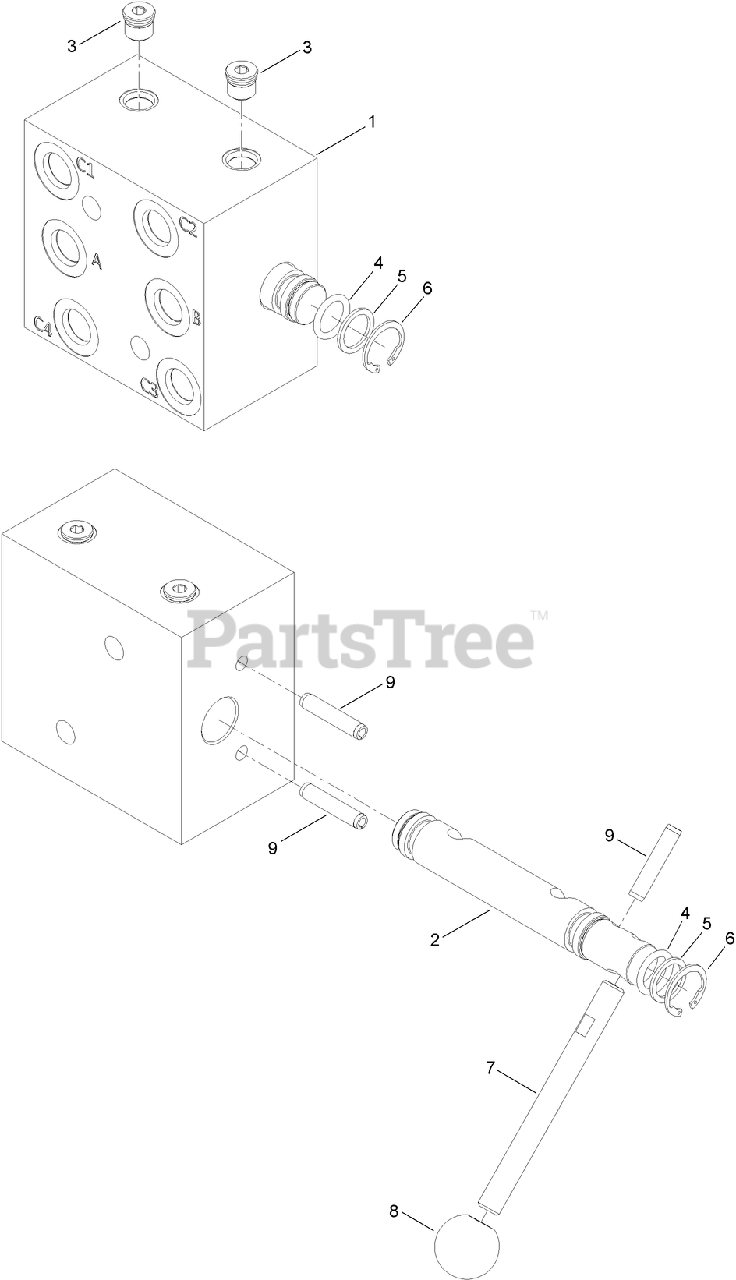

Hydraulic Control Selector Valve Assembly Parts Diagram
1
BLOCK-MANIFOLD
Note: Not serviced separately
$
$
Not available
Toro 131-2702
SPOOL-SELECTOR
$417.99
$
Usually ships in 3-6 days
3
HUB and BEARING ASM
Note: Not serviced separately
$
$
Not available
Toro 117-4606
O-RING
$7.99
$
Usually ships in 3-6 days
Toro 112-6534
RING-BACK UP
$19.99
$
Usually ships in 3-6 days
Toro 112-6532
RING-RETAINING
$9.99
$
Usually ships in 3-6 days
Toro 131-2701
HANDLE-SPOOL, LONG
$116.99
$
Usually ships in 3-6 days
Toro 131-2700
KNOB-BALL, PLASTIC
$19.99
$
Usually ships in 3-6 days
Toro 112-6531
PIN-SPRING
$8.99
$
Usually ships in 3-6 days
