25430 A (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) Roll-Over Protection System and Platform Assembly Parts Diagram

Trencher

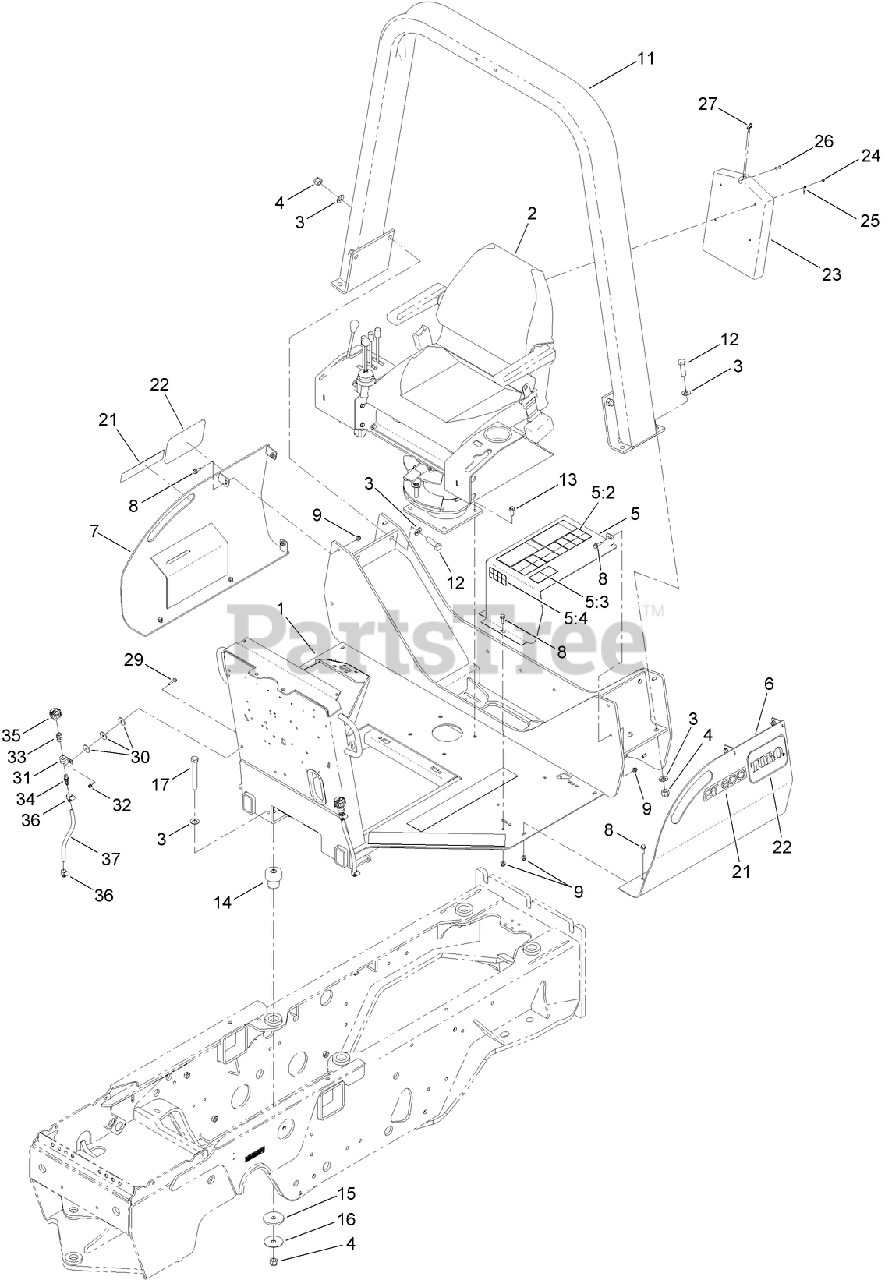

Roll-Over Protection System and Platform Assembly Parts Diagram

  • Title

1

Toro 125-6730-03

PLATFORM-OPERATOR

$

$

Currently unavailable

2

Toro 125-6737

SEAT ASM

$

$

Currently unavailable

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

4

Toro 120-0924

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

5

Toro 127-1235

BATTERY COVER ASM

$

$

Not available

5:2

Toro 125-6699

DECAL-SAFETY

$

$

Currently unavailable

5:3

Toro 125-6691

DECAL-SAFETY

$

$

Currently unavailable

5:4

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

6

Toro AU125419-01

FENDER-LH

$

$

Currently unavailable

7

Toro AU125424-01

FENDER-RH

$

$

Currently unavailable

8

Toro 33104-025

SCREW-HHF

$8.49

$

In Stock, only 2 left!

0

9

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 127-1884

ROPS ASM

$

$

Currently unavailable

12

Toro 327-26

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

14

Toro AUA141451

MOUNT-REAR

$115.99

$

Usually ships in 3-6 days

0

15

Toro AUA141470

WASHER-SNUBBING

$

$

Currently unavailable

16

Toro AUD89007

WASHER

$30.99

$

Usually ships in 3-6 days

0

17

Toro AU113-2649

SCREW-HH

$

$

Currently unavailable

21

Toro 125-6692

DECAL

$

$

Currently unavailable

22

Toro 62-7400

DECAL

$28.99

$

Usually ships in 3-6 days

0

23

Toro AU103216

HOLDER-MANUAL, OPERATOR

$86.99

$

Usually ships in 3-6 days

0

24

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

25

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

26

Toro AUR46463

POST-MANUAL

$2.49

$

Usually ships in 3-6 days

0

27

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0

29

Toro 33103-030

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

30

Toro 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 20+

0

31

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

32

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

33

Toro AU217-1101

COUPLING-PIPE (NPTF)

$6.99

$

Usually ships in 3-6 days

0

34

Toro 108-0342

FITTING-STRAIGHT

$9.49

$

Usually ships in 3-6 days

0

35

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

36

Toro 2412-119

CLAMP-HOSE, WORM DRIVE

$2.49

$

Usually ships in 3-6 days

0

37

Toro 130-8819

HOSE-BREATHER

$

$

Currently unavailable
