25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) Air Cleaner and Exhaust Assembly Parts Diagram

Trencher

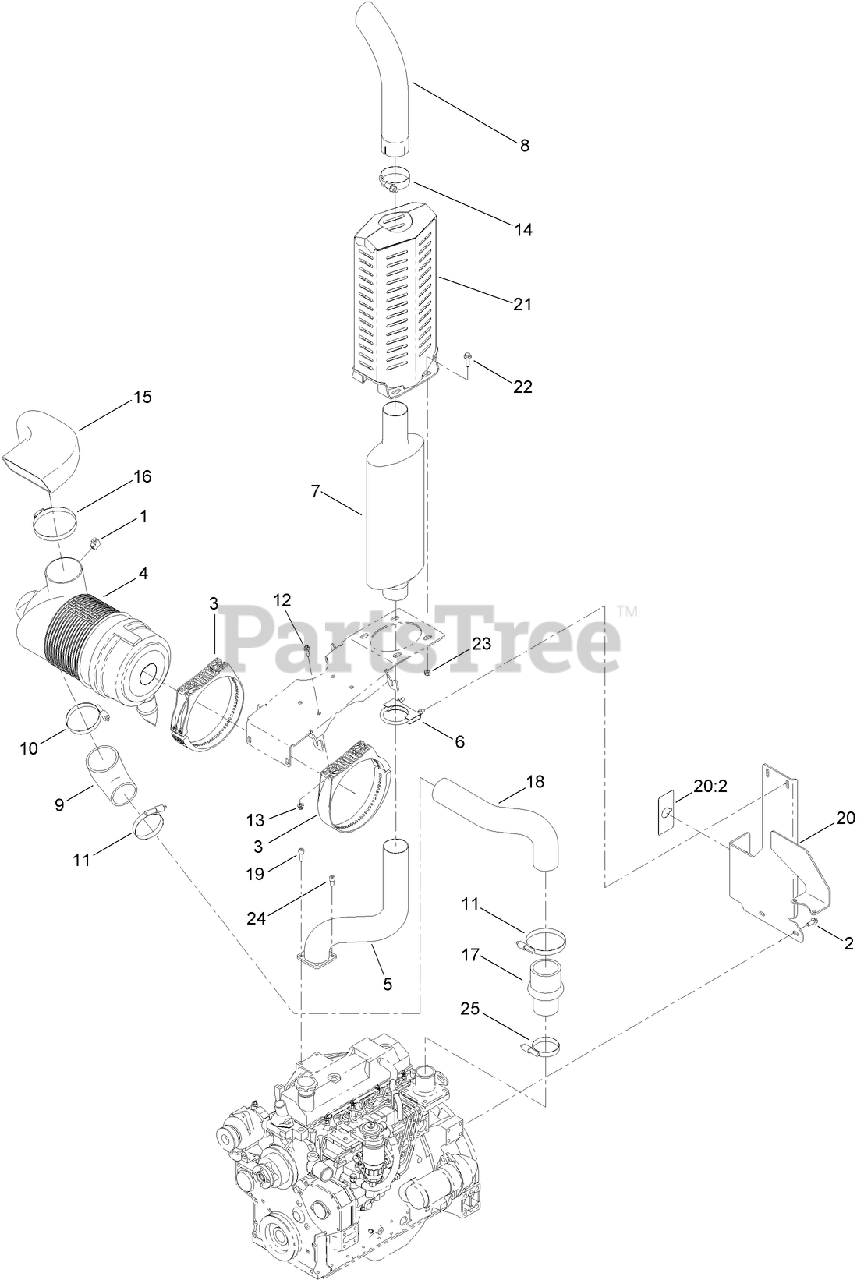

Air Cleaner and Exhaust Assembly Parts Diagram

  • Title

1

Toro AU217-1050

FITTING-ELBOW, 90

$

$

Currently unavailable

2

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

3

Toro 112-7340

BAND-MOUNTING, AIR CLEANER

$107.99

$

Usually ships in 3-6 days

0

4

Toro 112-7329

AIR CLEANER ASM

$582.99

$

Usually ships in 3-6 days

0

5

Toro AU125242

TUBE-EXHAUST

$

$

Currently unavailable

6

Toro AU111840

BOLT-U, CLAMP

$

$

Currently unavailable

7

Toro AU129272A1

MUFFLER-VERTICAL, OVAL

$

$

Not available

8

Toro AU115334

EXHAUST-STACK

$

$

Currently unavailable

9

Toro AU125249

CONNECTOR-AIR INTAKE

$

$

Currently unavailable

10

Toro AU102427

CLAMP-TORQUE, CONSTANT

$18.99

$

Usually ships in 3-6 days

0

11

Toro AU102431

CLAMP-TORQUE, CONSTANT

$43.99

$

Usually ships in 3-6 days

0

12

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU106185

CLAMP-MUFFLER

$52.99

$

Usually ships in 3-6 days

0

15

Toro AU125498

INTAKE-Air

$

$

Currently unavailable

16

Toro AU214-3180

CLAMP-HOSE, WORM GEAR (HEAVY DUTY)

$

$

Currently unavailable

17

Toro AU125250

CONNECTOR-INTAKE, AIR

$

$

Currently unavailable

18

Toro AU125248

TUBE-INTAKE, AIR

$

$

Currently unavailable

19

Toro 3273-41

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

20

Toro 127-1239

MUFFLER SUPPORT MOUNT ASM

$

$

Currently unavailable

20:2

Toro 125-8470

DECAL-DISCONNECT, BATTERY

$

$

Currently unavailable

21

Toro 125-6741-03

SHIELD-EXHAUST

$

$

Currently unavailable

22

Toro 33105-030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

23

Toro 103-9511

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

24

Toro AU119330

SCREW-HSH

$

$

Currently unavailable

25

Toro 114-0031

CLAMP, T-BOLT

$

$

Not available
