25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) Hydraulic Tank and Tandem Pump Assembly Parts Diagram

Trencher

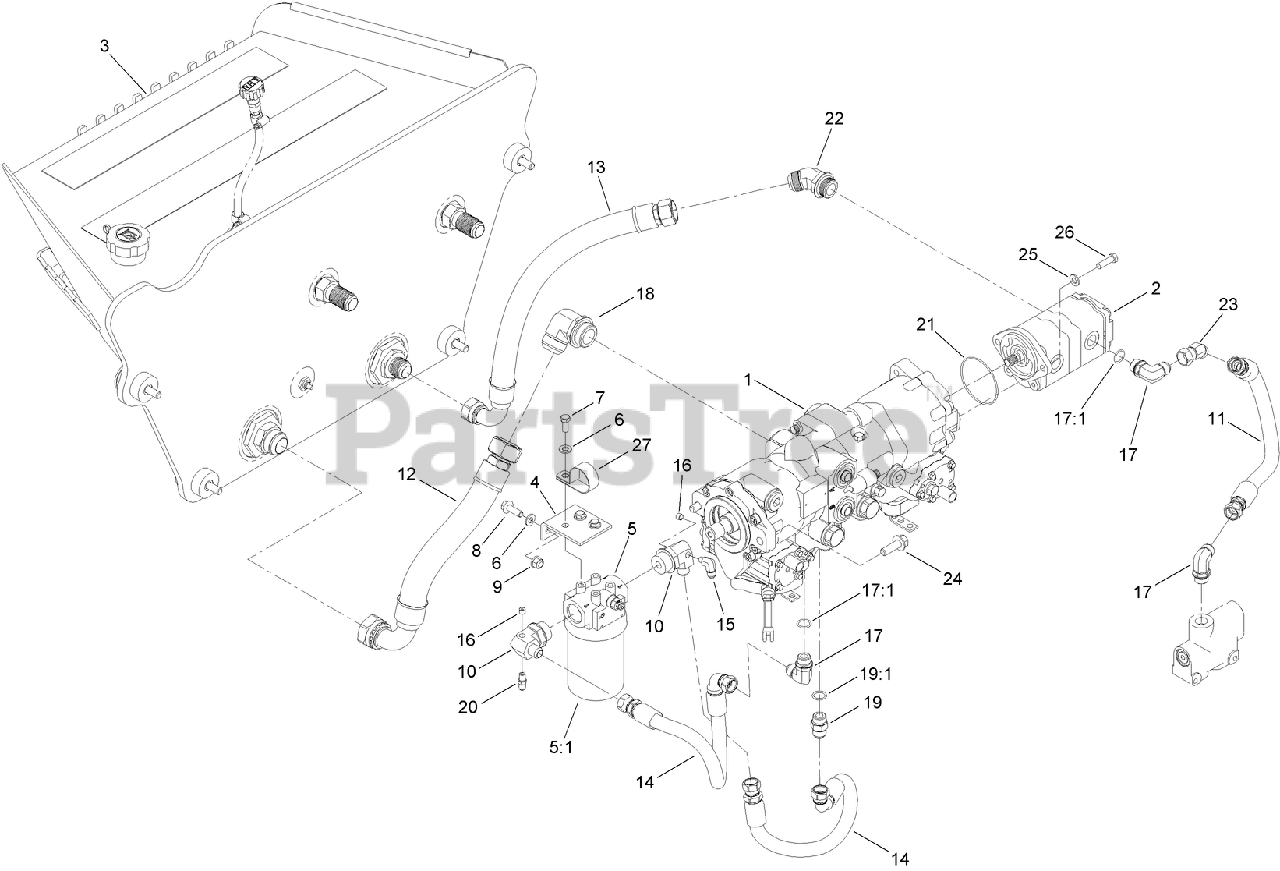

Hydraulic Tank and Tandem Pump Assembly Parts Diagram

  • Title

1

Toro AU125034

TANDEM PUMP ASM

$

$

Currently unavailable

2

Toro AU105969A1

HYD GEAR PUMP ASM

$

$

Not available

2:1

Toro 550LG31619002

Overhaul Service Seal Kit - Purchase from DYNAMATICS LIMITED Dealer

Note: Obtain locally.

$

$

Currently unavailable

2:1

Toro 550LG31619002

Overhaul Service Seal Kit - Purchase from DYNAMATICS LIMITED Dealer

Note: Not illustrated

$

$

Currently unavailable

3

Toro 127-1242

HYD TANK ASM

$

$

Currently unavailable

4

Toro AU111774A1

BRACKET-MOUNTING, FILTER

$63.99

$

Usually ships in 3-6 days

0

5

Toro AUD121629

OIL FILTER ASM

$266.99

$

Usually ships in 3-6 days

0

5:1

Toro 110-4146

FILTER-HYD

$65.99

$

In Stock, only 2 left!

0

6

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

8

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

9

Toro 103-9511

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

10

Toro AUH439363

ADAPTER-SPECIAL

$435.99

$

Usually ships in 3-6 days

0

11

Toro 125-6708

HOSE ASM

$

$

Currently unavailable

12

Toro 125-6719

HYD HOSE ASM

$

$

Currently unavailable

13

Toro 125-6723

HOSE ASM

$

$

Currently unavailable

14

Toro 125-6727

HOSE ASM

$

$

Currently unavailable

15

Toro AU218-492

ELBOW-90

$23.99

$

Usually ships in 3-6 days

0

16

Toro 285-17

PLUG-PIPE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 353-370

FITTING-ELBOW, 90 DEG

$87.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

18

Toro AU218-5112

ELBOW-90

$84.99

$

Usually ships in 3-6 days

0

19

Toro 353-385

FITTING-STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

20

Toro 112-3282

FITTING-STRAIGHT

$8.99

$

Usually ships in 3-6 days

0

21

Toro AU238-5152

O-RING

$1.99

$

Usually ships in 3-6 days

0

22

Toro AU218-5140

FITTING-ELBOW, 45

$

$

Not available

23

Toro 127-0519

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

24

Toro 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 323-44

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

27

Toro 127-0518

CLAMP-R

$

$

Currently unavailable
