25432 E - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 313000001 - 313999999) (2013) Backhoe Frame and Cylinder Mounting Assembly Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

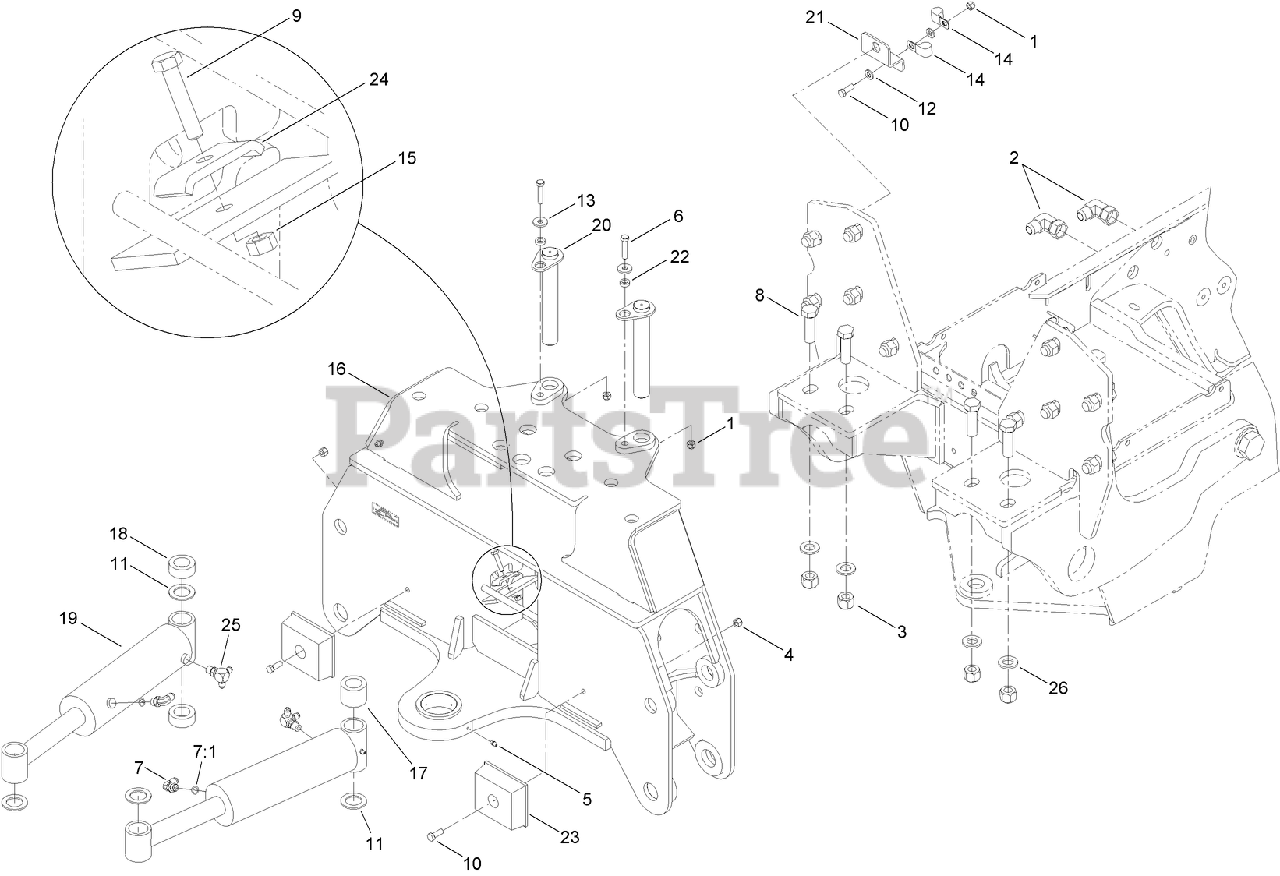

Backhoe Frame and Cylinder Mounting Assembly Parts Diagram

  • Title

1

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2

Toro AU218-5231

FITTING-ELBOW, 90

$24.99

$

Usually ships in 3-6 days

0

3

Toro AU230-42112

NUT-HEX LOCK

$

$

Not available

4

Toro AU230-4216

See Supercession: 125-5069
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

5

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

6

Toro 323-52

SCREW-HH

$4.99

$

In Stock, Qty 12

0

7

Toro 353-374

See Supercession: 103-1802
(Superseded to 103-1802)

$27.99

$

In Stock, only 2 left!

0

7:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

8

Toro AU426-1240

BOLT

$4.99

$

Usually ships in 3-6 days

0

9

Toro 5-1470

SCREW-HH

$0.99

$

In Stock, Qty 9

0

10

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU495-81203

WASHER

$22.99

$

Usually ships in 3-6 days

0

12

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU496-41041

WASHER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

16

Toro AU101281-03

FRAME-BACKHOE

$

$

Currently unavailable

17

Toro AU102603

BOSS-PIN (40MM)

$

$

Currently unavailable

18

Toro AU102604

BOSS-PIN (20.5MM)

$

$

Currently unavailable

19

Toro AU103336

HYD CYLINDER ASM

$

$

Currently unavailable

20

Toro AU111339

PIN-PIVOT W/ FLAG

$

$

Not available

21

Toro AU116460-03

BRACKET-MOUNTING, TUBE

$

$

Currently unavailable

22

Toro AU349192A1

SPACER

$12.99

$

Usually ships in 3-6 days

0

23

Toro AUD90990

See Supercession: 136-3998
(Superseded to 136-3998)

$153.99

$

Usually ships in 3-6 days

0

24

Toro AUH434900

CLAMP-TUBE

$

$

Currently unavailable

25

Toro AUL104616

FITTING

$47.99

$

Usually ships in 3-6 days

0

26

Toro AUH426817

WASHER-FLAT

$13.99

$

Usually ships in 3-6 days

0
