25432 E - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 313000001 - 313999999) (2013) Right and Left Mounting Assembly Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

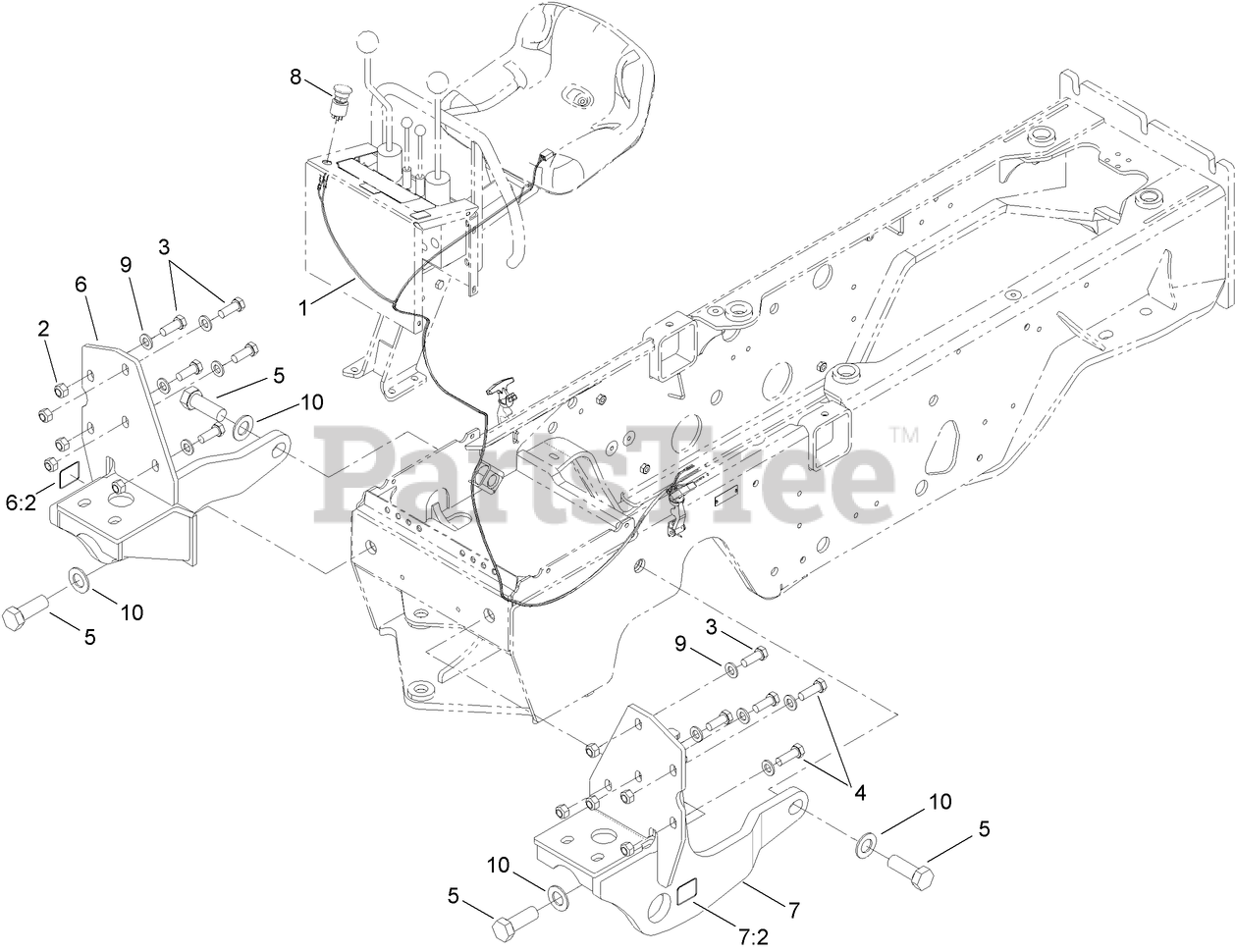

Right and Left Mounting Assembly Parts Diagram

  • Title

1

Toro 122-0155

HARNESS-WIRE

$

$

Currently unavailable

2

Toro 120-7252

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

3

Toro AU426-1232

BOLT

$9.99

$

Usually ships in 3-6 days

0

4

Toro AU426-1236

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

5

Toro AU426-2056

BOLT

$

$

Not available

6

Toro 127-1270

RH MOUNTING BRACKET ASM

$

$

Not available

6:2

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

7

Toro 127-1271

LH MOUNTING BRACKET ASM

$

$

Currently unavailable

7:2

Toro 125-6694

DECAL-TIE DOWN

$3.99

$

Usually ships in 3-6 days

0

8

Toro AU445945A1

BUTTON-E-STOP

$150.99

$

Usually ships in 3-6 days

0

9

Toro AUH426817

WASHER-FLAT

$13.99

$

Usually ships in 3-6 days

0

10

Toro AUH426858

WASHER

$

$

Not available
