25450 (RT 1200) - Toro Trencher (SN: 314000501 - 314999999) (2014) Controller and Display Assembly Parts Diagram

Trencher

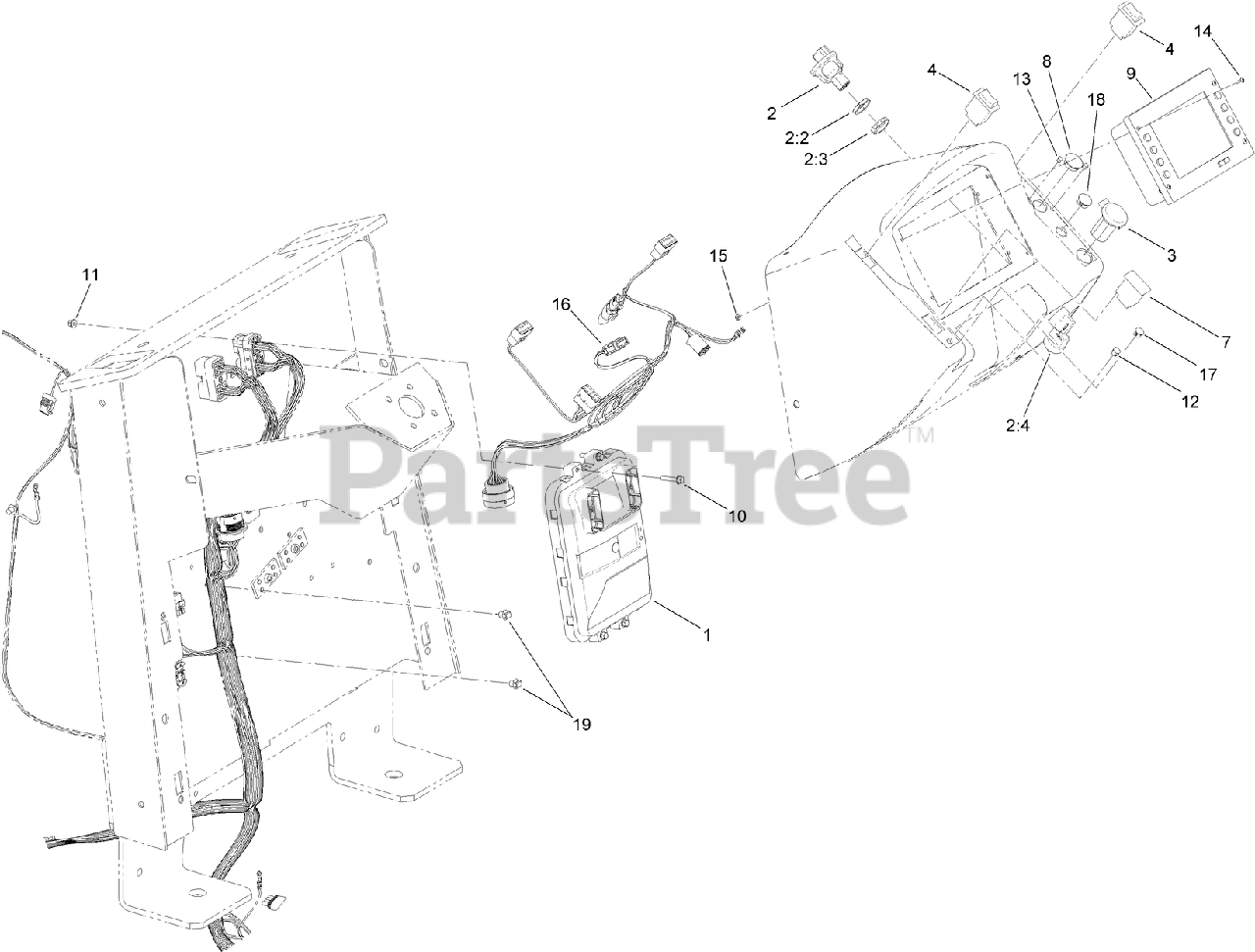

Controller and Display Assembly Parts Diagram

  • Title

1

Toro AU117890

CONTROLLER ASM (88 PIN, UNPROGRAMMED)

$

$

Currently unavailable

2

Toro 121-5159

IGNITION SWITCH ASM

$134.99

$

In Stock, only 2 left!

0

2:2

Toro 121-5160

NUT-HEX

$124.99

$

Usually ships in 3-6 days

0

2:3

Toro 121-5161

NUT-FACE
(Superseded to 122-2704)

$2.99

$

Usually ships in 3-6 days

0

2:4

Toro 121-5162

SET-KEY, IGNITION

$37.99

$

In Stock, Qty 10

0

3

Toro AU22000121

RECEPTICAL-12V DC
(Superseded to 109-9376)

$55.99

$

Usually ships in 3-6 days

0

4

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

7

Toro AU124043

PLUG-PANEL

$

$

Currently unavailable

8

Toro 103-8018

PLUG-DOME

$5.99

$

Usually ships in 3-6 days

0

9

Toro AU103384

See Supercession: 132-4181
(Superseded to 132-4181)

$12442.99

$

Usually ships in 3-6 days

0

10

Toro 33103-035

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-9645

NUT-HHF

$0.99

$

Usually ships in 3-6 days

0

12

Toro 104-9368

PLUG-DOME

$0.99

$

In Stock, Qty 9

0

13

Toro AU353-400

PLUG-DOME

$

$

Not available

14

Toro 3249-3

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0

15

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

16

Toro 125-6884

HARNESS-DASH

$

$

Currently unavailable

17

Toro 130-8444

PLUG-DOME

$

$

Currently unavailable

18

Toro 130-8439

PLUG-DOME

$

$

Currently unavailable

19

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0
