25450 (RT 1200) - Toro Trencher (SN: 314000501 - 314999999) (2014) Main Electrical Harness Assembly Parts Diagram

Trencher

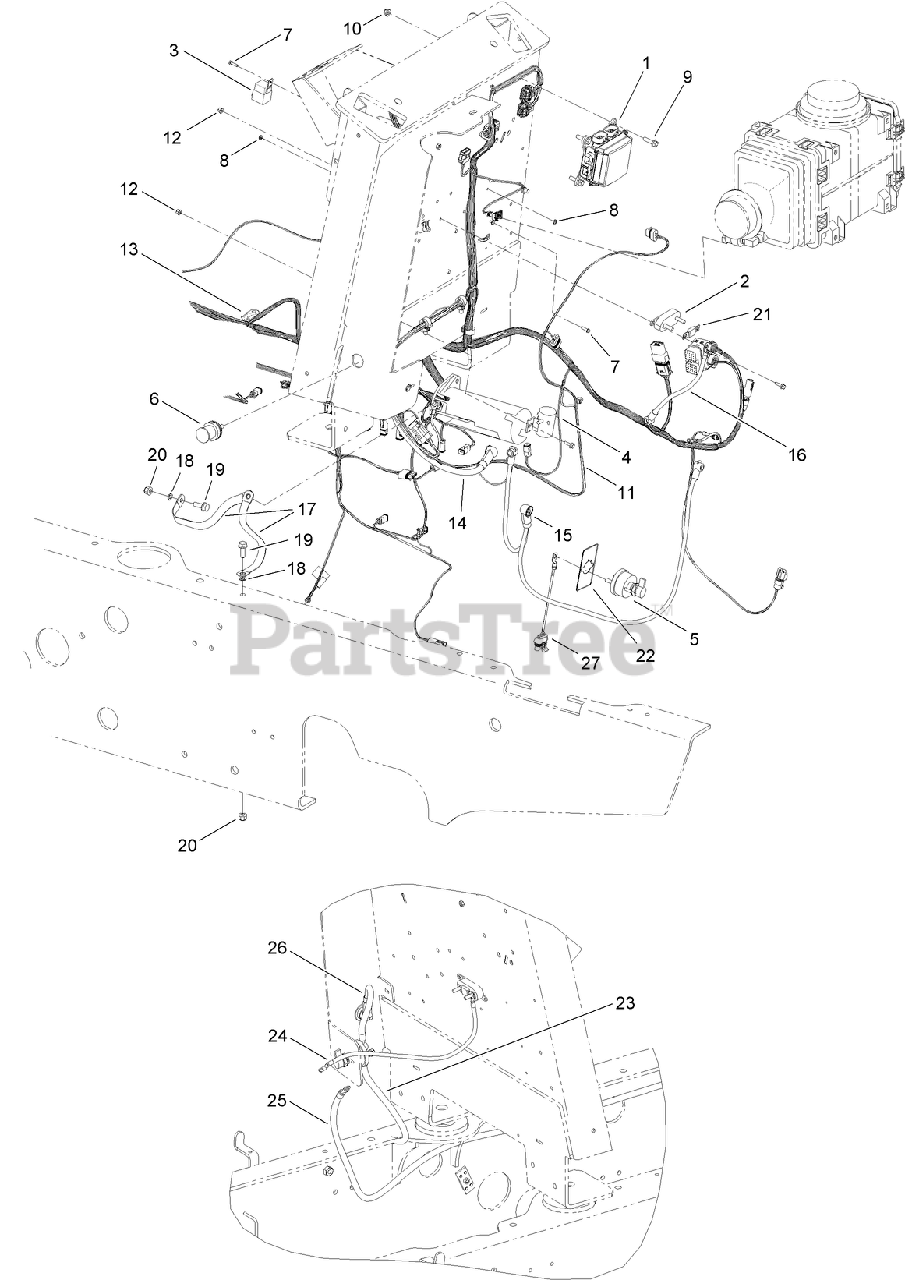

Main Electrical Harness Assembly Parts Diagram

  • Title

1

Toro AU116154

BOX-VEHICLE, MAIN

$

$

Currently unavailable

2

Toro AU126233

HOLDER-FUSE

$

$

Currently unavailable

3

Toro 99-7430

RELAY-MINI

$27.99

$

In Stock, only 2 left!

0

4

Toro AU126234

SOLENOID-RELAY 12V, 300A

$

$

Currently unavailable

5

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$177.99

$

Usually ships in 3-6 days

0

6

Toro AU105186

POST-BATTERY, REMOTE

$101.99

$

Usually ships in 3-6 days

0

7

Toro AU63-81012

SCREW-HWH

$

$

Currently unavailable

8

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

9

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

10

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

12

Toro 120-9645

NUT-HHF

$0.99

$

Usually ships in 3-6 days

0

13

Toro 127-1748

HARNESS-MAIN

$

$

Currently unavailable

14

Toro 122-0290

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

15

Toro 122-0291

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

16

Toro 122-0365

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

17

Toro AUD127018

STRAP-GROUNDING

$63.99

$

Usually ships in 3-6 days

0

18

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

19

Toro 33105-030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

20

Toro 103-9511

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

21

Toro AU126232

FUSE-100A

$21.99

$

Usually ships in 3-6 days

0

22

Toro 125-6157

DECAL-DISCONNECT, BATTERY

$

$

Currently unavailable

23

Toro 122-0289

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

24

Toro 122-0293

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

25

Toro 122-0294

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

26

Toro 122-0295

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

27

Toro 122-0084

HARNESS-WIRE, FUSIBLE LINK

$544.99

$

Usually ships in 3-6 days

0
