25450 (RT 1200) - Toro Trencher (SN: 314000501 - 314999999) (2014) Pedal Assembly No. AU106377 Parts Diagram

Trencher

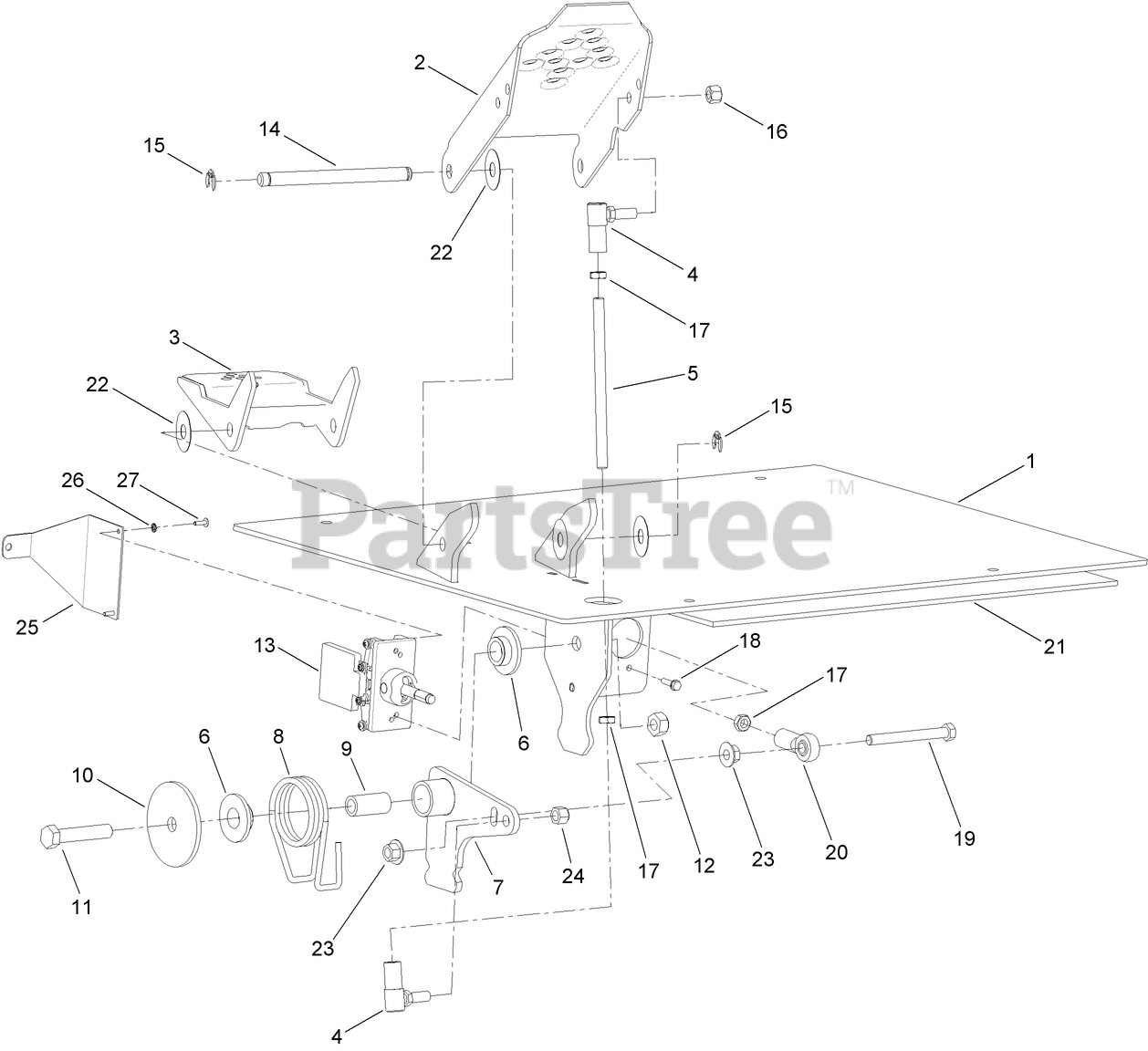

Pedal Assembly No. AU106377 Parts Diagram

  • Title

1

Toro AU106362-03

PLATE-FLOOR

$

$

Not available

2

Toro AUH403816-03

PEDAL-FOOT, GROUND DRIVE

$

$

Currently unavailable

3

Toro AUH672181-03

PEDAL-HEEL

$

$

Currently unavailable

4

Toro AUD38296

See Supercession: 94-7572
(Superseded to 94-7572)

$37.99

$

In Stock, Qty 5

0

5

Toro AU398314A1

ROD-CONTROL

$

$

Currently unavailable

6

Toro AUD128616

BUSHING-INSERT, PLASTIC

$33.99

$

Usually ships in 3-6 days

0

7

Toro AU106453

PIVOT-W/BELLCRANK

$

$

Currently unavailable

8

Toro AUH436303

SPRING

$94.99

$

Usually ships in 3-6 days

0

9

Toro AUH435694

SPACER

$44.99

$

Usually ships in 3-6 days

0

10

Toro AUH436215

WASHER-SPECIAL

$16.99

$

Usually ships in 3-6 days

0

11

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

12

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

13

Toro 131-0434

SENSOR-TRACTION

$

$

Currently unavailable

14

Toro AUH403840

PIN

$

$

Currently unavailable

15

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

16

Toro AU232-4616

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

18

Toro 32144-64

TSCREW-HWH

$7.99

$

Usually ships in 3-6 days

0

19

Toro 1-800805

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

20

Toro AUS108030

See Supercession: 92-7008
(Superseded to 92-7008)

$58.99

$

Usually ships in 3-6 days

0

21

Toro AU109930

INSULATION-FLOOR

$

$

Currently unavailable

22

Toro AU126572

WASHER

$

$

Currently unavailable

23

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 131-0481

PLATE-SENSOR, PEDAL

$

$

Currently unavailable

26

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3249-3

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0
