25450 (RT 1200) - Toro Trencher (SN: 314000501 - 314999999) (2014) Tandem Pump Plumbing Assembly Parts Diagram

Trencher

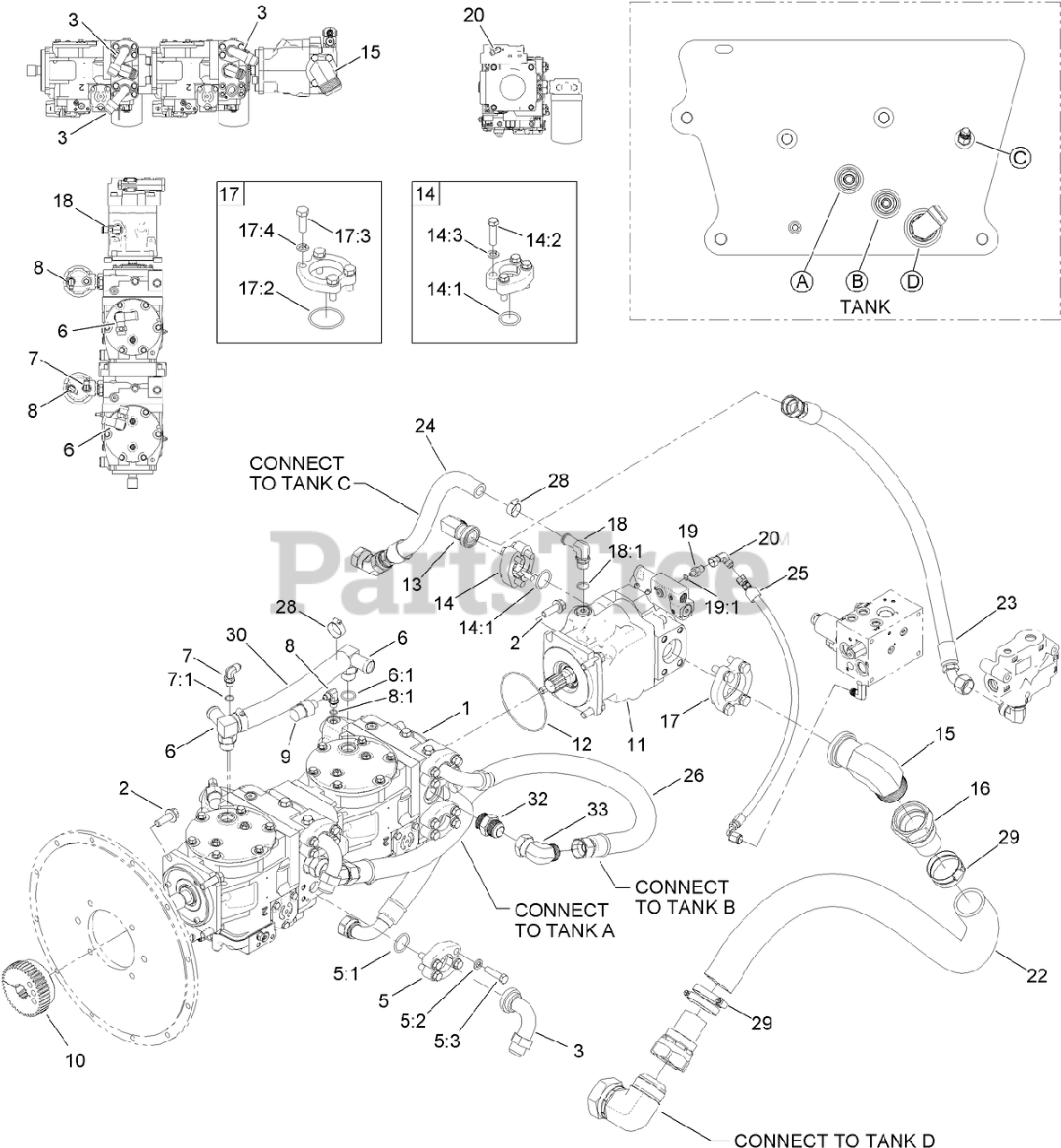

Tandem Pump Plumbing Assembly Parts Diagram

  • Title

1

Toro AU115782

TANDEM PUMP ASM

$

$

Currently unavailable

2

Toro 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

3

Toro AUH439280

FITTING-ELBOW

$76.99

$

Usually ships in 3-6 days

0

5

Toro AU114285A1

HYD FLANGE KIT

$77.99

$

Usually ships in 3-6 days

0

5:1

Toro 121-3904

O-RING

$6.99

$

Usually ships in 3-6 days

0

5:2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5:3

Toro AU113-372

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

6

Toro AU375462A1

CONNECTOR

$155.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

7

Toro 353-374

See Supercession: 103-1802
(Superseded to 103-1802)

$27.99

$

In Stock, only 2 left!

0

7:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

8

Toro 340-134

FITTING-ELBOW, 90

$9.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

9

Toro AU443897A1

SWITCH-PRESSURE

$199.99

$

Usually ships in 3-6 days

0

10

Toro AU358988A1

HUB-COUPLER

$

$

Currently unavailable

11

Toro AU115760

HYD PUMP ASM
(Superseded to 127-1812)

$

$

Not available

12

Toro AU70-9004104-158

SEAL-O RING

$

$

Currently unavailable

13

Toro AU91-500024-16S

ADAPTER-FLANGE, SPLIT

$

$

Currently unavailable

14

Toro AU91-FF593-16

FLANGE KIT

$

$

Currently unavailable

14:1

Toro 121-3904

O-RING

$6.99

$

Usually ships in 3-6 days

0

14:2

Toro AU426-728

BOLT

$

$

Currently unavailable

14:3

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro AU91-500024-32S

ADAPTER-FLANGE, SPLIT

$

$

Currently unavailable

16

Toro 130-7530

FITTING-STRAIGHT

$

$

Currently unavailable

17

Toro 125-4538

FLANGE KIT

$

$

Currently unavailable

17:2

Toro 125-6148

O-RING

$

$

Currently unavailable

17:3

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

17:4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

18

Toro 87-8170

FITTING-90

$52.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

19

Toro AU218-5352

ADAPTER-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-78

O-RING

$4.99

$

In Stock, Qty 11

0

20

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$10.99

$

Usually ships in 3-6 days

0

22

Toro AU124968

HOSE-FUEL, TANK FILL

$

$

Currently unavailable

23

Toro 125-6802

HYD HOSE ASM, HP

$

$

Currently unavailable

24

Toro 125-6812

HYD HOSE ASM, LP

$

$

Currently unavailable

25

Toro 125-6773

HYD HOSE ASM

$

$

Currently unavailable

26

Toro 125-6815

HYD RETURN HOSE ASM

$

$

Currently unavailable

28

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

29

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

30

Toro 125-6853

HOSE

$

$

Currently unavailable

32

Toro AU218-5069

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

33

Toro AU218-5234

FITTING-ELBOW, 90

$

$

Currently unavailable
