25452 E - Toro Backhoe for RT1200 Trencher (SN: 314000001 - 314999999) (2014) Seat and Console Assembly Parts Diagram

Backhoe for RT1200 Trencher

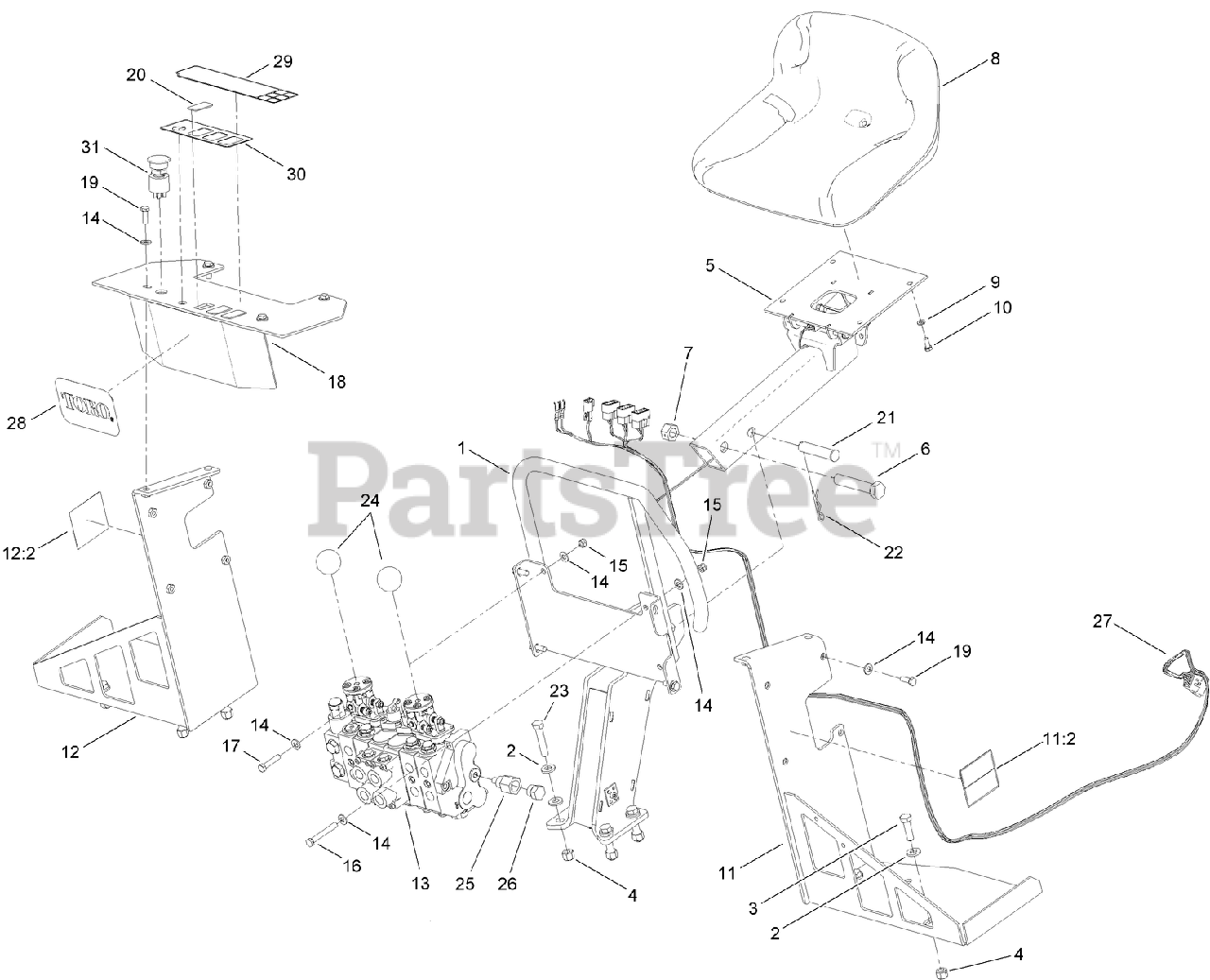

Seat and Console Assembly Parts Diagram

  • Title

1

Toro AUH672346-03

CONSOLE-MOUNT, VALVE/SEAT

$

$

Currently unavailable

2

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

3

Toro 121-1524

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro 130-7501

SEAT POST KIT

$

$

Currently unavailable

6

Toro AU426-1264

BOLT

$8.49

$

Usually ships in 3-6 days

0

7

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

8

Toro AU116536

SEAT-BLACK, LOW-BACK
(Superseded to 144-2554)

$251.99

$

Usually ships in 3-6 days

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro AU426-512

BOLT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 130-8435

LH FOOT GUARD ASM

$

$

Currently unavailable

11:2

Toro 125-6690

DECAL-DANGER, CRUSHING

$

$

Currently unavailable

12

Toro 130-8436

RH FOOT GUARD ASM

$

$

Currently unavailable

12:2

Toro 125-6690

DECAL-DANGER, CRUSHING

$

$

Currently unavailable

13

Toro AUH672270

VALVE-BACKHOE, 6 SPOOL

$

$

Currently unavailable

14

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU426-644

BOLT-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 323-52

SCREW-HH

$4.99

$

In Stock, Qty 12

0

18

Toro AU113301-03

COVER-TOP

$

$

Currently unavailable

19

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$9.49

$

Usually ships in 3-6 days

0

21

Toro AUS10839

PIN-CLEVIS

$

$

Not available

22

Toro AU136-164

PIN-HAIR COTTER, INT
(Superseded to 3290-355)

$2.99

$

In Stock, Qty 20+

0

23

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

24

Toro AU31375

KNOB-BALL

$47.99

$

Usually ships in 3-6 days

0

25

Toro AU121895

FITTING-SLEEVE, POWER BEYOND

$

$

Currently unavailable

26

Toro AU218-5157

PLUG-HH

$11.99

$

Usually ships in 3-6 days

0

27

Toro 127-1863

HARNESS-WIRE

$

$

Currently unavailable

28

Toro 99-4693

DECAL

$27.99

$

In Stock, only 2 left!

0

29

Toro 125-8474

DECAL-OPERATION, BUCKET

$

$

Currently unavailable

30

Toro 127-1827

DECAL-BACKHOE CONTROLS

$

$

Currently unavailable

31

Toro AU445945A1

BUTTON-E-STOP

$150.99

$

Usually ships in 3-6 days

0
