25463 E - Toro Plow Kit for RT1200 Trencher (SN: 314000001 - 314999999) (2014) Hydraulic Plumbing Assembly Parts Diagram

Plow Kit for RT1200 Trencher

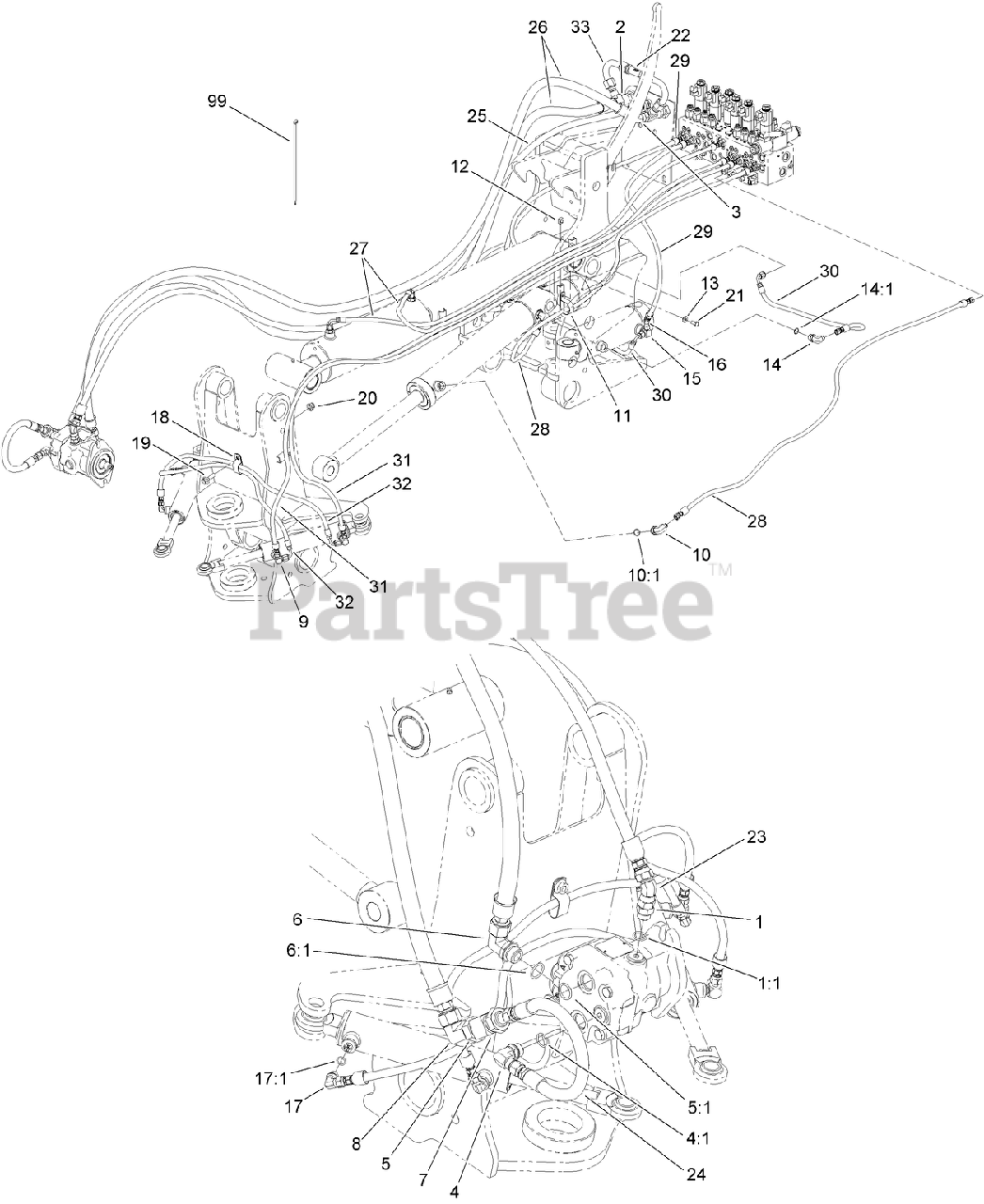

Hydraulic Plumbing Assembly Parts Diagram

  • Title

1

Toro 353-385

FITTING-STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

2

Toro AU218-5412

TEE-SWIVEL

$

$

Currently unavailable

3

Toro 127-0542

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

4

Toro 353-426

FITTING-90 DEG

$35.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

5

Toro AU91-203003-12-1

FITTING-TEE

$

$

Currently unavailable

5:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

6

Toro 353-369

FITTING-ELBOW, 90 DEG

$70.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

7

Toro AUH439323

FITTING-Restrictor

$

$

Currently unavailable

8

Toro AU218-5382

ELBOW-SWIVEL, 90 DEG

$62.99

$

Usually ships in 3-6 days

0

9

Toro AUL104616

FITTING

$47.99

$

Usually ships in 3-6 days

0

10

Toro AU218-5281

FITTING-ELBOW, 90 DEG

$31.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

11

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

12

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro 353-537

FITTING-ELBOW, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

15

Toro AUH428623

TEE-SPECIAL

$

$

Currently unavailable

16

Toro AU218-5172

FITTING-ELBOW, 45 DEG

$14.99

$

Usually ships in 3-6 days

0

17

Toro 353-374

See Supercession: 103-1802
(Superseded to 103-1802)

$27.99

$

In Stock, only 2 left!

0

17:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

18

Toro AUL302731

CLAMP-DOUBLE

$

$

Currently unavailable

19

Toro AU100830

SCREW

$3.49

$

Usually ships in 3-6 days

0

20

Toro AU100528

NUT-HHF, LOCK

$2.99

$

Usually ships in 3-6 days

0

21

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro AUL126503

VALVE-CHECK

$

$

Currently unavailable

23

Toro 127-0519

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

24

Toro 127-1714

HYD HOSE ASM, HP

$

$

Currently unavailable

25

Toro 127-1713

HYD HOSE ASM, LP

$

$

Currently unavailable

26

Toro 127-1719

HYD HOSE ASM, HP

$

$

Currently unavailable

27

Toro 127-1729

HYD HOSE ASM, HP

$

$

Currently unavailable

28

Toro 127-1712

HYD HOSE ASM, HP

$

$

Currently unavailable

29

Toro 127-1715

HYD HOSE ASM, HP

$

$

Currently unavailable

30

Toro 127-1720

HYD HOSE ASM, HP

$

$

Currently unavailable

31

Toro 127-1718

HYD HOSE ASM, HP

$

$

Currently unavailable

32

Toro 127-1717

HYD HOSE ASM, HP

$

$

Currently unavailable

33

Toro 130-1745

HYD TUBE ASM, HP

$

$

Currently unavailable

99

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
