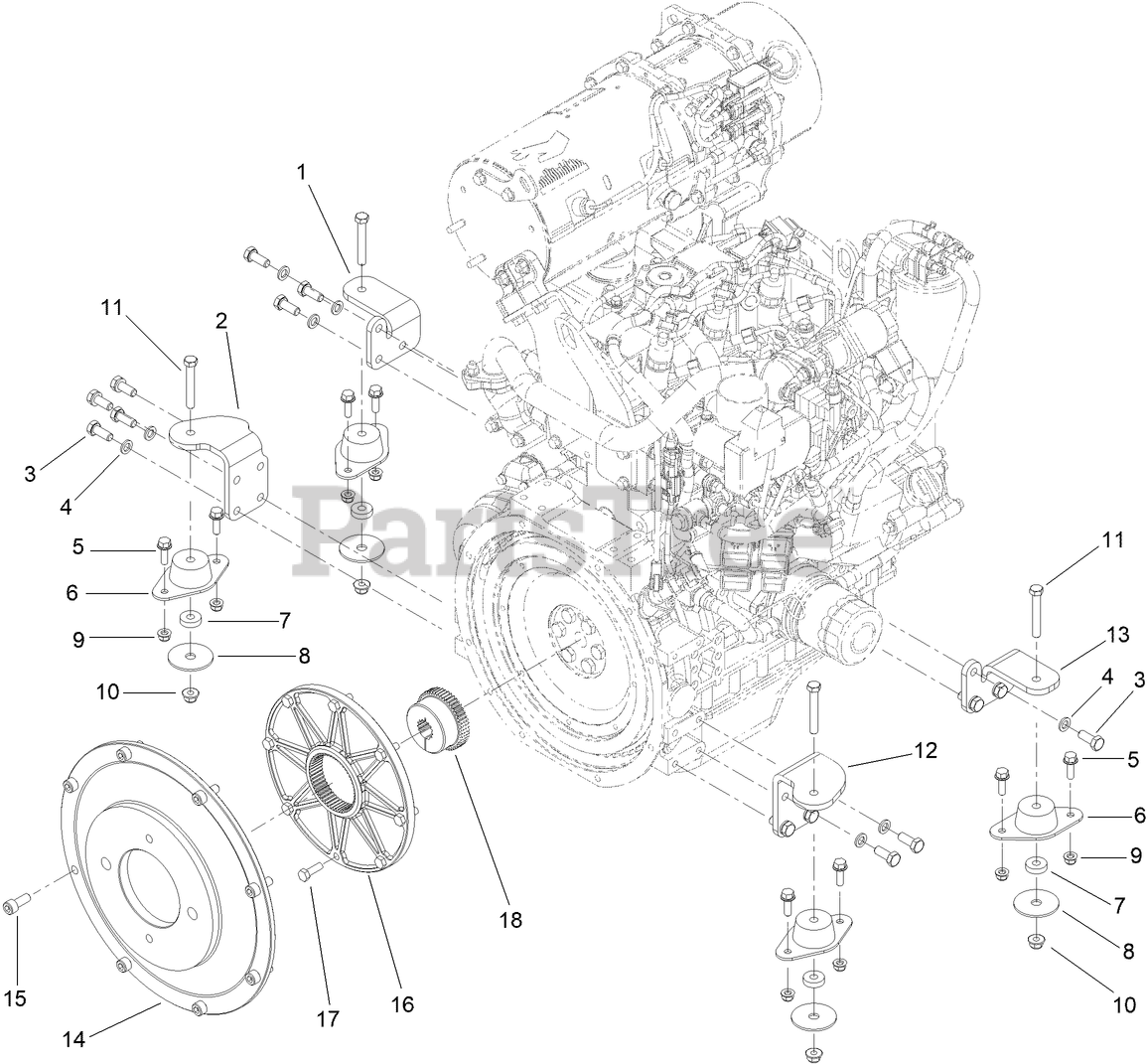

25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Engine Mount Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

Engine Mount Assembly Parts Diagram

  • Title

1

Toro 147-5388

ENGINE MOUNT

$76.99

$

Usually ships in 3-6 days

0

2

Toro 147-5385

MOUNT-ENGINE, LH REAR

$84.99

$

Usually ships in 3-6 days

0

3

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 48-9590

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

6

Toro 120-6274

MOUNT-ENGINE

$48.99

$

In Stock, only 2 left!

0

7

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 5

0

8

Toro 87-5100

WASHER-SNUBBING

$4.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 147-5386

MOUNT-ENGINE, RH REAR

$84.99

$

Usually ships in 3-6 days

0

13

Toro 147-5389

ENGINE MOUNT

$72.99

$

Usually ships in 3-6 days

0

14

Toro 147-5784

PLATE - MOUNTING, PUMP

$758.99

$

Usually ships in 3-6 days

0

15

Toro 3273-41

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

16

Toro 127-6607

FLANGE-FLYWHEEL

$394.99

$

Usually ships in 3-6 days

0

17

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 14

0

18

Toro 127-6606

HUB

$193.99

$

Usually ships in 3-6 days

0
