25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Frame Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

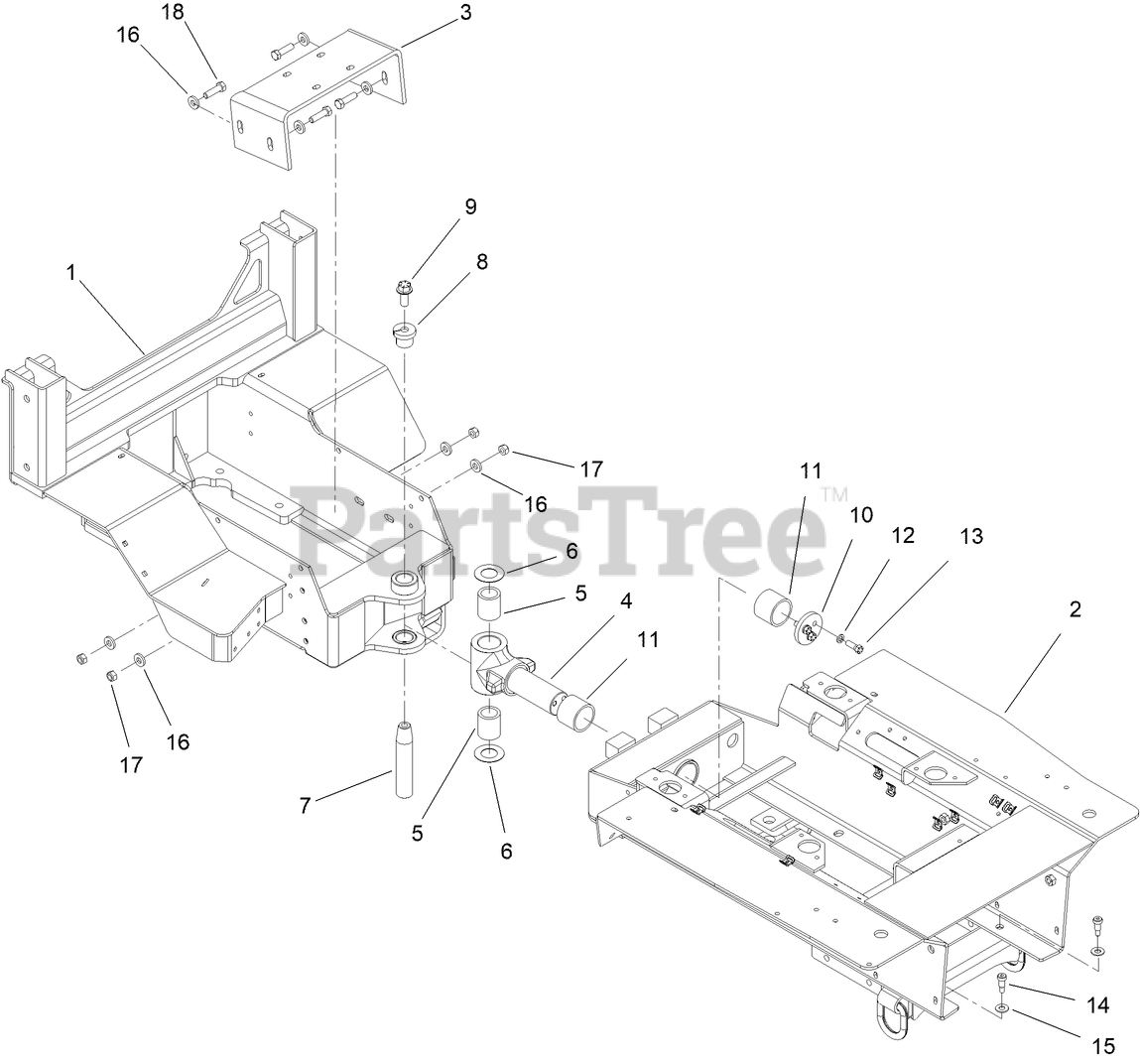

Frame Assembly Parts Diagram

  • Title

1

Toro 147-5411

REAR FRAME

$3053.99

$

Usually ships in 3-6 days

0

2

Toro 147-5413

FRAME-FRONT WELDED

$2659.99

$

Usually ships in 3-6 days

0

3

Toro 147-5412

MOUNT-GEARBOX

$106.99

$

Usually ships in 3-6 days

0

4

Toro 147-5410

PIVOT-MACHINING

$433.99

$

Usually ships in 3-6 days

0

5

Toro 147-5402

BEARING-COMPOSITE

$32.99

$

Usually ships in 3-6 days

0

6

Toro 147-5787

WASHER - MACHINERY (1.375)

$4.49

$

Usually ships in 3-6 days

0

7

Toro 147-5407

TAPERED PIN (1.375" X 7.000")

$108.99

$

Usually ships in 3-6 days

0

8

Toro 147-5408

TAPERED INSERT (1.375")

$41.99

$

Usually ships in 3-6 days

0

9

Toro 147-5399

FLG BLT (5/8-NC X 1-1/2", GR 8)

$7.49

$

Usually ships in 3-6 days

0

10

Toro 147-5414

CAP-PIVOT

$15.99

$

Usually ships in 3-6 days

0

11

Toro 147-5788

BEARING - COMPOSITE

$29.99

$

Usually ships in 3-6 days

0

12

Toro 137-3071

WASHER-LOCK

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3212-5

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

14

Toro 147-5398

SHOULDER BOLT

$15.99

$

Usually ships in 3-6 days

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 107-3395

WASHER-HARDENED

$2.49

$

Usually ships in 3-6 days

0

17

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

18

Toro 325-7

SCREW-HH

$2.49

$

In Stock, Qty 11

0
