25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Harness and Component Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

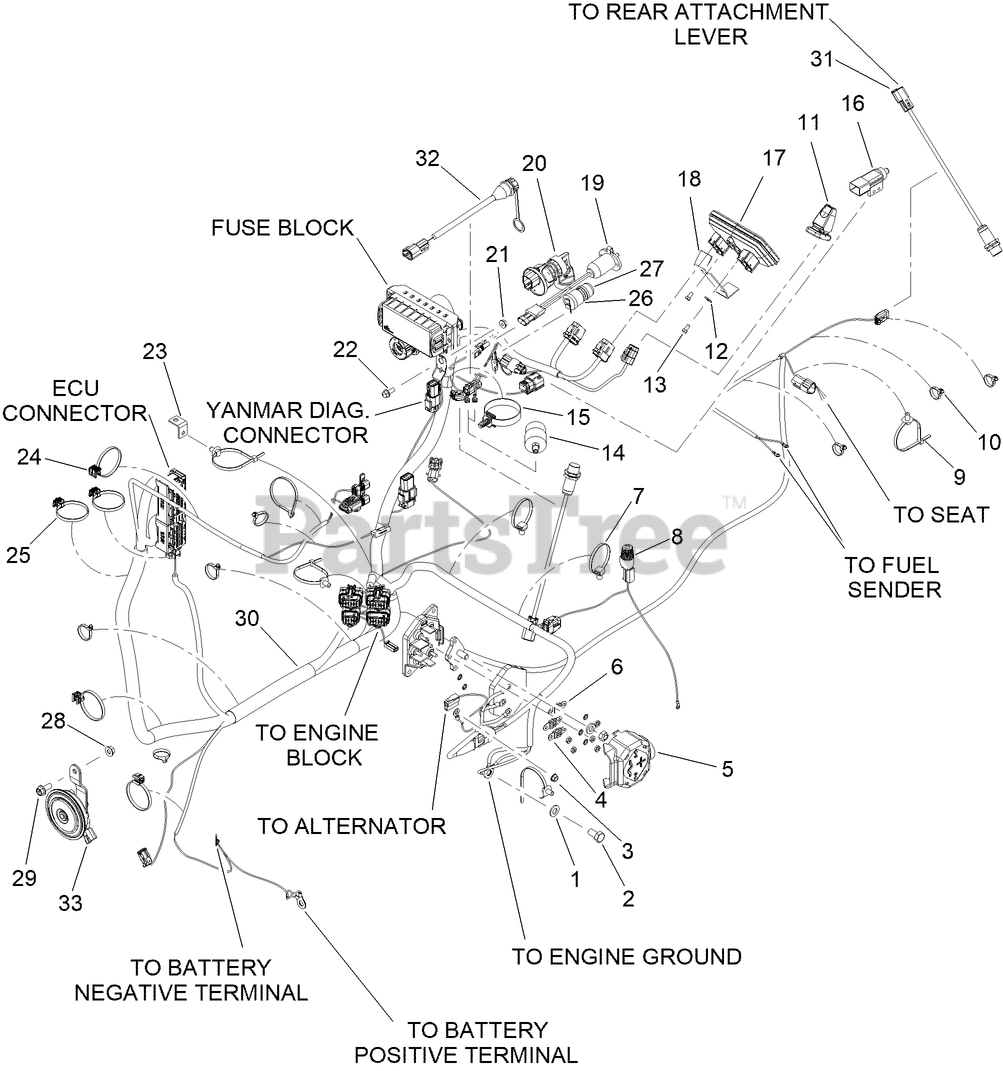

Harness and Component Assembly Parts Diagram

  • Title

1

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

4

Toro 147-5488

BK/AMI 60 AMP FUSE

$8.99

$

Usually ships in 3-6 days

0

5

Toro 147-5791

MAIN FUSE HOLDER (3 BK/AMI FUSES)

$

$

Currently unavailable

6

Toro 147-5487

BK/AMI 80 AMP FUSE

$8.99

$

Usually ships in 3-6 days

0

7

Toro 147-5484

FIR TREE SMALL TIE

$1.99

$

Usually ships in 3-6 days

0

8

Toro 121-6599

SWITCH-TEMP, 200 DEGREE

$252.99

$

Usually ships in 3-6 days

0

9

Toro 147-5792

FIR TREE CABLE MOUNT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 147-5793

CABLE TIE (1/16" TO 4")

$1.49

$

Usually ships in 3-6 days

0

11

Toro 147-5496

HPW SWITCH (FRICTION HOLD)

$286.99

$

Usually ships in 3-6 days

0

12

Toro 137-3073

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

13

Toro 121-6320

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU292950A1

SWITCH-PRESSURE, VACUUM

$55.99

$

Usually ships in 3-6 days

0

15

Toro 147-5794

HEAVY DUTY FIR TREE (.04-.62 THK)

$7.49

$

Usually ships in 3-6 days

0

16

Toro 147-5493

PLUNGER SWITCH

$23.99

$

Usually ships in 3-6 days

0

17

Toro 147-5503

CCPILOT VI_2 3.5" DISPLAY

$882.99

$

Usually ships in 3-6 days

0

18

Toro 147-5506

DISPLAY BRACKET

$39.99

$

Usually ships in 3-6 days

0

19

Toro 147-5489

ACCESSORY SOCKET

$110.99

$

Usually ships in 3-6 days

0

20

Toro 121-5159

IGNITION SWITCH ASM

$134.99

$

In Stock, only 2 left!

0

20:1

Toro 121-5160

NUT-HEX

Note: Not illustrated

$124.99

$

Usually ships in 3-6 days

0

20:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

20:3

Toro 121-5162

SET-KEY, IGNITION

Note: Not illustrated

$37.99

$

In Stock, Qty 10

0

21

Toro 139-2619

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 33103-016

SCREW-HHF

$6.99

$

In Stock, Qty 6

0

23

Toro 147-5504

BRACKET

$15.99

$

Usually ships in 3-6 days

0

24

Toro 147-5485

EDGE CLIP SIDE VERTICAL (.12-.24)

$5.49

$

Usually ships in 3-6 days

0

25

Toro 147-5795

EDGE CLIP SIDE HORIZONTAL (.12-.24)

$3.99

$

Usually ships in 3-6 days

0

26

Toro 161-0698

BUTTON-HORN

$

$

Currently unavailable

27

Toro 161-0699

COVER-BUTTON

$

$

Currently unavailable

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

30

Toro 163-2403

HARNESS-MAIN

$5869.99

$

Usually ships in 3-6 days

0

30:1

Toro 161-0685

DIODE CONNECTOR

Note: Not illustrated

$39.99

$

Usually ships in 3-6 days

0

30:2

Toro 161-0686

RESISTOR PACK

Note: Not illustrated

$123.99

$

Usually ships in 3-6 days

0

30:3

Toro 161-0687

RELAY SPST ULTRA-MICRO 280

Note: Not illustrated

$

$

Currently unavailable

30:4

Toro 161-0688

RELAY SPDT MICRO 280

Note: Not illustrated

$

$

Currently unavailable

31

Toro 147-5490

PROXIMITY SWITCH 18MM NPN N/O

$180.99

$

Usually ships in 3-6 days

0

32

Toro 163-2402

USB DATA JUMPER W/CAP

$372.99

$

Usually ships in 3-6 days

0

33

Toro 163-2400

HORN-HIGH FREQUENCY

$

$

Currently unavailable
