25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Hood Support Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

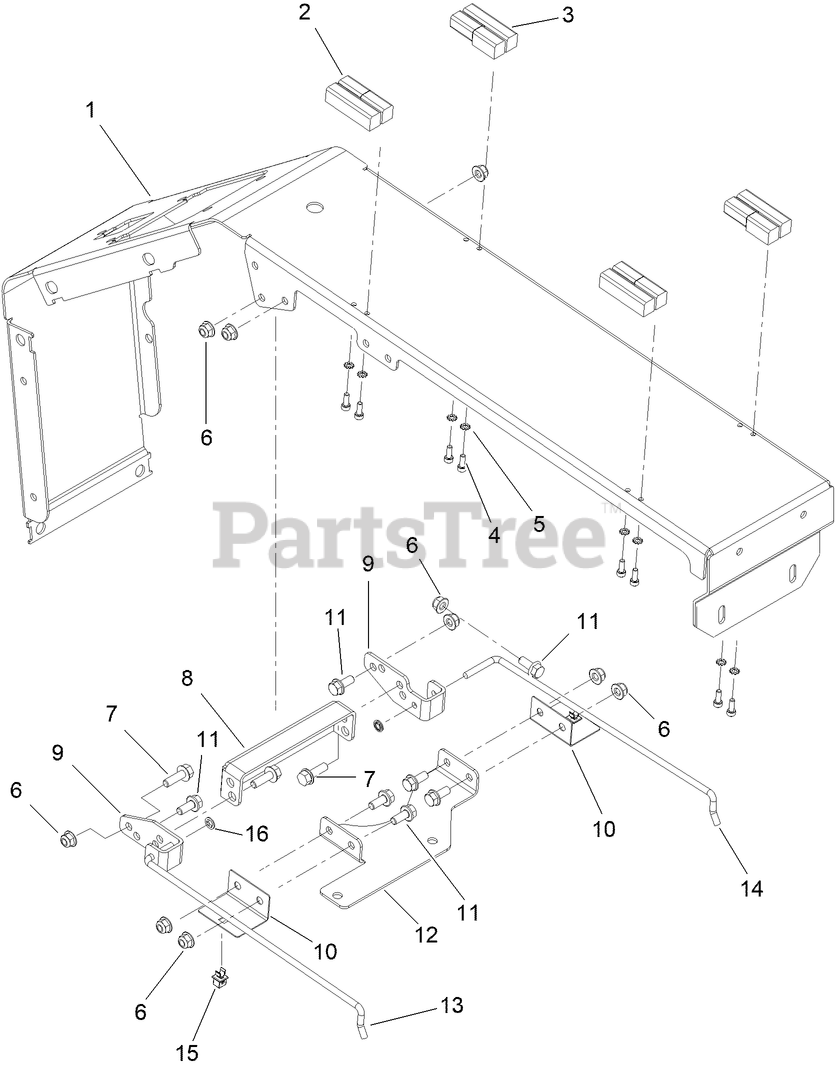

Hood Support Assembly Parts Diagram

  • Title

1

Toro 147-5549

SUPPORT

$353.99

$

Usually ships in 3-6 days

0

2

Toro 147-5534

LIFT-OFF HINGE (OFFSET)

$53.99

$

Usually ships in 3-6 days

0

3

Toro 147-5539

LIFT-OFF HINGE (OFFSET)

$53.99

$

Usually ships in 3-6 days

0

4

Toro 112-5181

SCREW -HSH

$12.99

$

Usually ships in 3-6 days

0

5

Toro 3255-5

WASHER-LOCK, EXT

$

$

Not available

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

8

Toro 147-5555

CROSS BRACE

$24.99

$

Usually ships in 3-6 days

0

9

Toro 147-5552

SUPPORT, PROP ROD

$14.99

$

Usually ships in 3-6 days

0

10

Toro 147-5547

TAB, PROP ROD

$13.99

$

Usually ships in 3-6 days

0

11

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

12

Toro 147-5543

BRACKET-AIR FILTER

$34.99

$

Usually ships in 3-6 days

0

13

Toro 147-5554

PROP ROD, RIGHT

$44.99

$

Usually ships in 3-6 days

0

14

Toro 147-5553

PROP ROD, LEFT

$44.99

$

Usually ships in 3-6 days

0

15

Toro 147-5532

PROP ROD CLIP

$8.99

$

Usually ships in 3-6 days

0

16

Toro 147-5528

PUSH NUT (1/4)

$0.99

$

Usually ships in 3-6 days

0
