25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Hydraulic Configuration Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

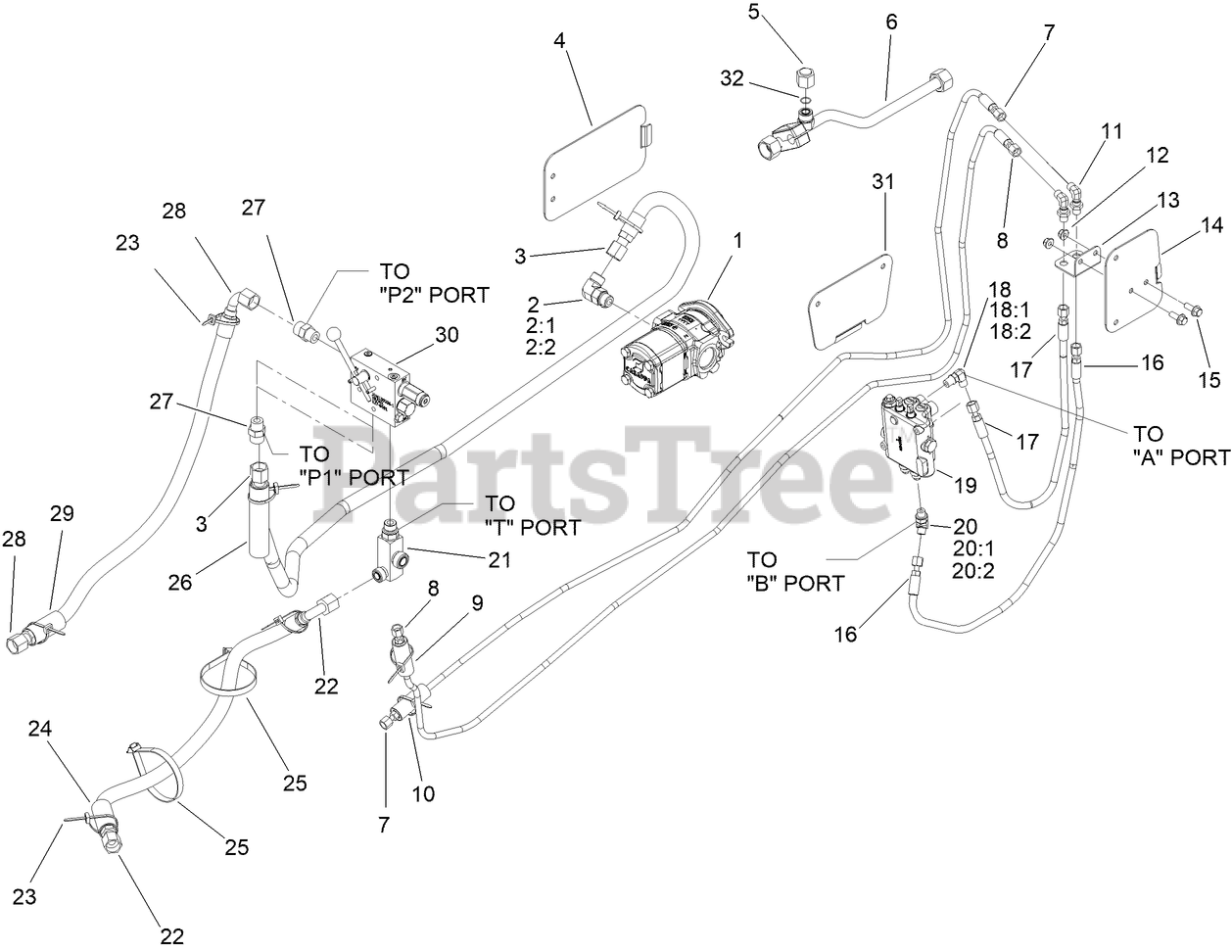

Hydraulic Configuration Assembly Parts Diagram

  • Title

1

Toro 147-5454

PUMP TANDEM (1.29/.44 CIR)

$607.99

$

Usually ships in 3-6 days

0

2

Toro 340-17

FITTING-ELBOW, 90 DEG

$67.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

2:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

3

Toro 147-5481

HOSE (10OFX-64"-3000)

$107.99

$

Usually ships in 3-6 days

0

4

Toro 147-5480

COVER-HYRDABORER (TORO RED)

$17.99

$

Usually ships in 3-6 days

0

5

Toro 340-150

CAP

$

$

Currently unavailable

6

Toro 147-5430

HARDLINE (-12 RETURN TO COOLER)

$95.99

$

Usually ships in 3-6 days

0

7

Toro 147-5471

HOSE (04OFX-82"-3000)

$80.99

$

Usually ships in 3-6 days

0

8

Toro 147-5472

HOSE (04OFX-92.5"-3000)

$85.99

$

Usually ships in 3-6 days

0

9

Toro 147-5797

ABRASION SLEEVE (1.00" X 92")

$36.99

$

Usually ships in 3-6 days

0

10

Toro 147-5798

ABRASION SLEEVE (1.00" X 82")

$26.99

$

Usually ships in 3-6 days

0

11

Toro 147-5475

BK CONNECTOR (04O-04O90BK)

$51.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 147-5477

PLATE-BULKHEAD

$16.99

$

Usually ships in 3-6 days

0

14

Toro 147-5478

COVER-SELECTOR (TORO RED)

$22.99

$

Usually ships in 3-6 days

0

15

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

16

Toro 147-5476

HOSE (04OFX-32"-3000)

$63.99

$

Usually ships in 3-6 days

0

17

Toro 147-5470

HOSE (04OFX-27"-3000)

$57.99

$

Usually ships in 3-6 days

0

18

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

18:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

19

Toro AU407213A1

HYD STEERING VALVE ASM

$2726.99

$

Usually ships in 3-6 days

0

20

Toro 95-4136

See Supercession: 340-137
(Superseded to 340-137)

$44.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

20:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

21

Toro 147-5435

CONNECTOR (10S-10O-12O)

$116.99

$

Usually ships in 3-6 days

0

22

Toro 147-5473

HOSE (10OFX90S-33"-3000)

$132.99

$

Usually ships in 3-6 days

0

23

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

24

Toro 147-5468

ABRASION SLEEVE (1.25" X 33")

$21.99

$

Usually ships in 3-6 days

0

25

Toro 147-5467

CABLE TIE (1/2") 20" LG

$10.99

$

Usually ships in 3-6 days

0

26

Toro 147-5799

ABRASION SLEEVE (1.25" X 64")

$28.99

$

Usually ships in 3-6 days

0

27

Toro 147-5727

CONNECTOR (10S-10O)

$10.99

$

Usually ships in 3-6 days

0

28

Toro 147-5482

HOSE (10OFX90S-36"-3000)

$192.99

$

Usually ships in 3-6 days

0

29

Toro 147-5469

ABRASION SLEEVE (1.25" X 37")

$23.99

$

Usually ships in 3-6 days

0

30

Toro 127-6591

VALVE-CONTROL, VIBE PLOW

$1369.99

$

Usually ships in 3-6 days

0

31

Toro 147-5479

COVER-TRENCHER (TORO RED)

$17.99

$

Usually ships in 3-6 days

0

32

Toro 147-5445

O-RING (016 D90)

$0.99

$

Usually ships in 3-6 days

0
