25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Tank Plumbing Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

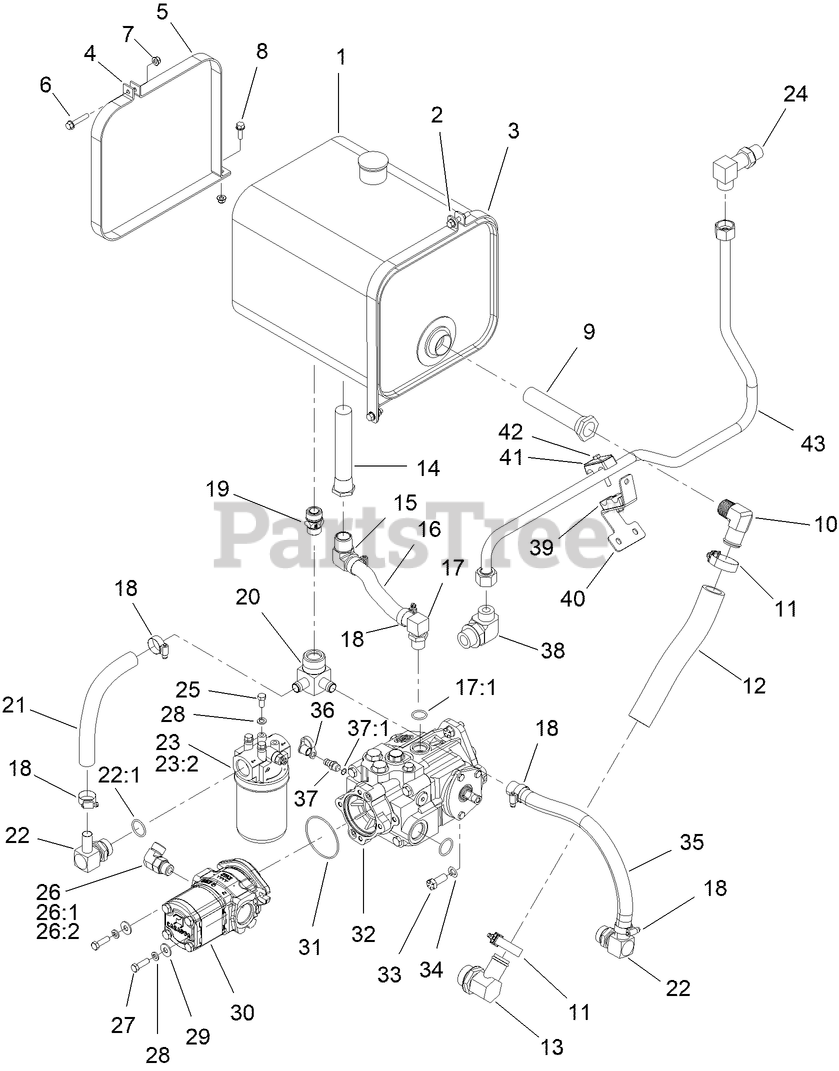

Tank Plumbing Assembly Parts Diagram

  • Title

1

Toro AU111566A1

See Supercession: 127-1097
(Superseded to 127-1097)

$1437.99

$

Usually ships in 3-6 days

0

2

Toro 130-4316

STRAP-TANK

$

$

Currently unavailable

3

Toro 147-5462

STRAP-TANK, HYDRAULIC

$40.99

$

Usually ships in 3-6 days

0

4

Toro AUH435847

STRAP-TANK

$

$

Not available

5

Toro AUH435811

STRAP-TANK

$

$

Not available

6

Toro 94-5780

SCREW-HWH

$8.99

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Toro AUH584631

FILTER ASM

$161.99

$

Usually ships in 3-6 days

0

10

Toro AU217-166

FITTING-ELBOW, 90

$34.99

$

Usually ships in 3-6 days

0

11

Toro 2412-75

CLAMP

$19.99

$

Usually ships in 3-6 days

0

12

Toro 147-5455

HOSE SUCTION

$36.99

$

Usually ships in 3-6 days

0

13

Toro 147-5459

S/O COUPLER (20S-20H90)

$94.99

$

Usually ships in 3-6 days

0

14

Toro AUH151399

FILTER ASM

$

$

Not available

15

Toro 130-4319

FITTING-ELBOW, 90

$61.99

$

Usually ships in 3-6 days

0

16

Toro 147-5457

HOSE LP

$37.99

$

Usually ships in 3-6 days

0

17

Toro 353-987

FITTING-ELBOW, 90

$87.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

18

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

19

Toro 147-5453

FLOW CHECK VALVE (-12S-120, 5 PSI)

$171.99

$

Usually ships in 3-6 days

0

20

Toro 147-5452

S/O COUPLER

$97.99

$

Usually ships in 3-6 days

0

21

Toro 147-5456

HOSE RETURN

$61.99

$

Usually ships in 3-6 days

0

22

Toro 98-0971

FITTING-ELBOW, 90

$169.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-117

O-RING

$8.99

$

Usually ships in 3-6 days

0

23

Toro 127-8423

HYD FILTER ASM

$388.99

$

Usually ships in 3-6 days

0

23:2

Toro 110-4146

FILTER-HYD

$65.99

$

In Stock, only 2 left!

0

24

Toro 147-5434

CONNECTOR (12S-12O90, XL)

$74.99

$

Usually ships in 3-6 days

0

25

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

26

Toro 340-17

FITTING-ELBOW, 90 DEG

$67.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

26:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

27

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

29

Toro 147-5447

WASHER

$1.49

$

Usually ships in 3-6 days

0

30

Toro 147-5454

PUMP TANDEM (1.29/.44 CIR)

$607.99

$

Usually ships in 3-6 days

0

31

Toro 147-5460

O-RING (152 D70)

$2.99

$

Usually ships in 3-6 days

0

32

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3980.99

$

Usually ships in 3-6 days

0

33

Toro 3234-38

SCREW-HHF

$6.99

$

In Stock, only 3 left!

0

34

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

35

Toro 147-5458

HOSE-RETURN 3/4

$44.99

$

Usually ships in 3-6 days

0

36

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

37

Toro 59-7410

FITTING-DIAGNOSTIC

$49.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

38

Toro 147-5441

CONNECTOR (12O-16S90)

$74.99

$

Usually ships in 3-6 days

0

39

Toro 94-8105

CLAMP-TUBE

$7.99

$

In Stock, only 2 left!

0

40

Toro 147-5466

BRACKET-TUBE

$24.99

$

Usually ships in 3-6 days

0

41

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

42

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

43

Toro 147-5431

HARDLINE (-12 COOLER TO FILTER)

$98.99

$

Usually ships in 3-6 days

0
