25530 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000102 - 324999999) (2024) Vibratory Box Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

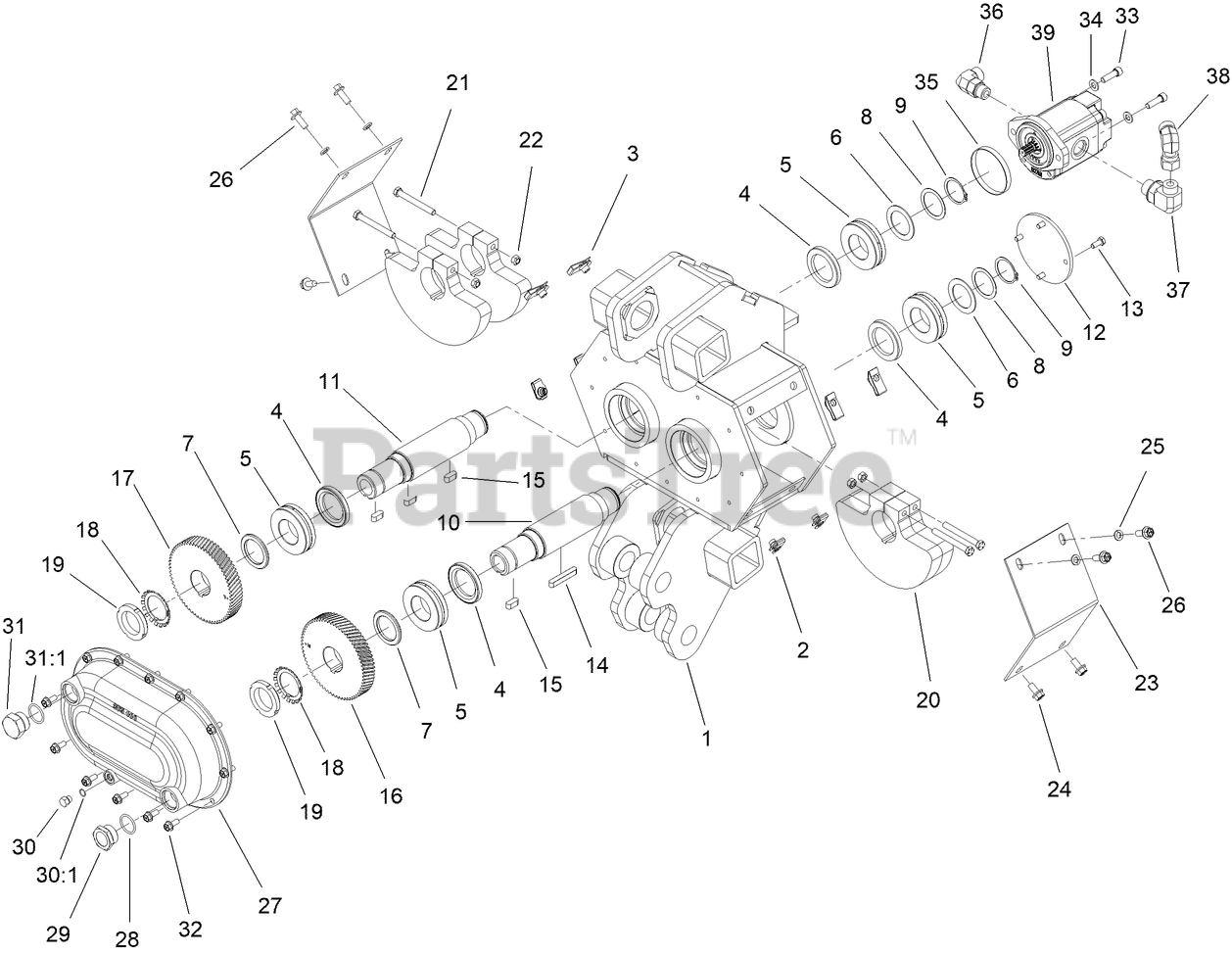

Vibratory Box Assembly Parts Diagram

  • Title

1

Toro 147-5615

VIBRATOR BOX - MACHINING

$5021.99

$

Usually ships in 3-6 days

0

2

Toro 147-5595

CLIP NUT (3/8-NC)

$5.99

$

Usually ships in 3-6 days

0

3

Toro 147-5596

CLIP NUT (3/8-NC)

$3.99

$

Usually ships in 3-6 days

0

4

Toro 147-5601

INTERNAL SEAL

$25.99

$

Usually ships in 3-6 days

0

5

Toro 99-2670

BEARING-ROLLER, SPHERICAL

$619.99

$

Usually ships in 3-6 days

0

6

Toro 147-5597

MACHINE BUSHING (1-3/4", 14GA)

$2.49

$

Usually ships in 3-6 days

0

7

Toro 147-5606

SPACER

$64.99

$

Usually ships in 3-6 days

0

8

Toro 147-5599

MACHINERY BUSHING (1.750")

$10.99

$

Usually ships in 3-6 days

0

9

Toro 147-5600

EXTERNAL SNAP RING (1.750")

$3.49

$

Usually ships in 3-6 days

0

10

Toro 147-5605

RIGHT SHAFT

$648.99

$

Usually ships in 3-6 days

0

11

Toro 147-5604

DRIVER SHAFT

$924.99

$

Usually ships in 3-6 days

0

12

Toro 147-5613

COVER PLATE

$29.99

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 147-5602

KEY (3/8" X 2-29/64")

$29.99

$

Usually ships in 3-6 days

0

15

Toro 147-5603

KEY (3/8" X .980")

$14.99

$

Usually ships in 3-6 days

0

16

Toro 147-5611

RIGHT GEAR

$417.99

$

Usually ships in 3-6 days

0

17

Toro 147-5610

LEFT GEAR

$417.99

$

Usually ships in 3-6 days

0

18

Toro 147-5609

TANG LOCK WASHER (1.792")

$13.99

$

Usually ships in 3-6 days

0

19

Toro 147-5608

THRUST LOCKNUT (1.767-NF-18)

$35.99

$

Usually ships in 3-6 days

0

20

Toro 147-5607

VIBRATOR WEIGHT

$282.99

$

Usually ships in 3-6 days

0

21

Toro 323-20

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 147-5616

COVER PLATE

$115.99

$

Usually ships in 3-6 days

0

24

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

25

Toro 139-5806

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 147-5612

CASTING (SIDE COVER)

$414.99

$

Usually ships in 3-6 days

0

28

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

29

Toro 147-5598

SIGHT GAUGE (16S)

$58.99

$

Usually ships in 3-6 days

0

30

Toro 353-990

PLUG ASM

$13.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-78

O-RING

Note: Not illustrated

$4.99

$

In Stock, Qty 11

0

31

Toro 105-3921

FITTING-PLUG

$44.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-146

O-RING

Note: Not illustrated

$5.49

$

In Stock, Qty 7

0

32

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

33

Toro 3274-1

SCREW-HSH

$9.49

$

Usually ships in 3-6 days

0

34

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 147-5614

ADAPTER

$65.99

$

Usually ships in 3-6 days

0

36

Toro 340-17

FITTING-ELBOW, 90 DEG

$67.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

36:2

Toro 237-80

O-RING

Note: Not illustrated

$7.49

$

In Stock, Qty 7

0

37

Toro 340-139

FITTING-ELBOW 90

$188.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-81

O-RING

Note: Not illustrated

$3.49

$

In Stock, only 2 left!

0

37:2

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

38

Toro 340-160

FITTING-HYD-90

$111.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

39

Toro 115-8250

Gear Motor ASM

$

$

Currently unavailable

39:1

Toro 125-1682

MOTOR SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

39:2

Toro 117-5107

VALVE-CHECK

Note: Not illustrated

$

$

Currently unavailable
