25532 E - Toro Hydra Borer for Maxi Sneaker 370 Vibratory Plow Hydra Borer Assembly Parts Diagram

Hydra Borer for Maxi Sneaker 370 Vibratory Plow

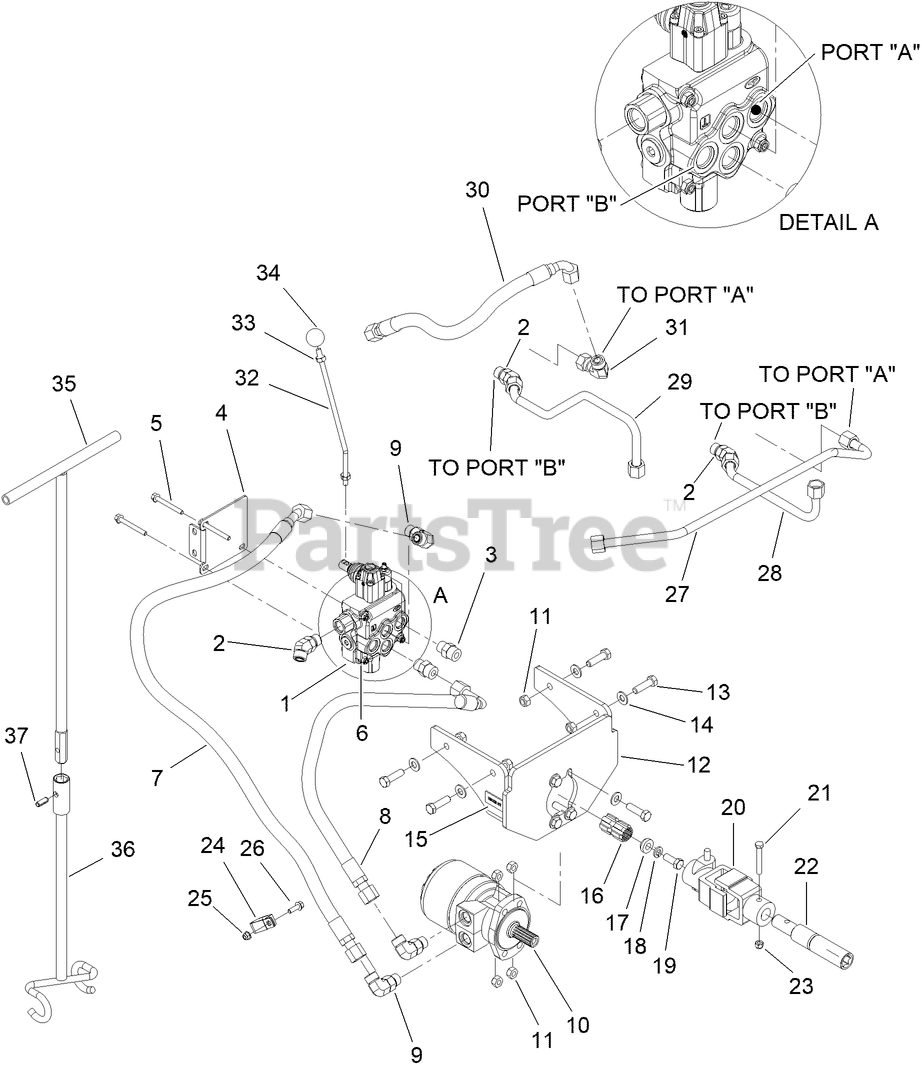

Hydra Borer Assembly Parts Diagram

  • Title

1

Toro 130-4310

HYDRO VALVE ASM

$1855.99

$

Usually ships in 3-6 days

0

2

Toro 147-5728

CONNECTOR (10S-10O45)

$33.99

$

Usually ships in 3-6 days

0

3

Toro 147-5727

CONNECTOR (10S-10O)

$10.99

$

Usually ships in 3-6 days

0

4

Toro 130-4311-03

BRACKET-HYDRO VALVE

$

$

Currently unavailable

5

Toro 33104-070

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

6

Toro 33024-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

7

Toro 147-5739

HOSE (10OFX45-53"-3000)

$239.99

$

Usually ships in 3-6 days

0

8

Toro 147-5740

HOSE (10OFX90L-54"-3000)

$146.99

$

Usually ships in 3-6 days

0

9

Toro 147-5706

CONNECTOR (10S-10O90)

$29.99

$

Usually ships in 3-6 days

0

10

Toro AUH673156

HYD MOTOR ASM

$1998.99

$

Usually ships in 3-6 days

0

11

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

12

Toro 147-5749

MOUNT - HYDRABORE

$423.99

$

Usually ships in 3-6 days

0

13

Toro 121-1524

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

14

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

15

HYDRABORE DECAL KIT

Note: Not serviced separately

$

$

Not available

15:1

Toro 147-5746

DANGER ROTATING SHAFT

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

15:2

Toro 147-5748

HYDRA BORE CONTROL

Note: Not illustrated

$46.99

$

Usually ships in 3-6 days

0

15:3

Toro 147-5747

CALIFORNIA PROP 65 WARNING - PARTS

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

16

Toro AUH312314

ADAPTER

$326.99

$

Usually ships in 3-6 days

0

17

Toro AUH435886

RETAINER-ADAPTER

$81.99

$

Usually ships in 3-6 days

0

18

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-0378

SCREW ( .50-20UNFX1.25 GRADE 8)

$5.49

$

In Stock, only 3 left!

0

20

Toro AUH511113

See Supercession: AUH511113-03
(Superseded to AUH511113-03)

$406.99

$

Usually ships in 3-6 days

0

21

Toro 323-47

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

22

Toro 147-5745

ADAPTER

$600.99

$

Usually ships in 3-6 days

0

23

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

27

Toro 147-5744

HARDLINE (-10 HYDRABORER TO TRENCHER)

$76.99

$

Usually ships in 3-6 days

0

28

Toro 147-5743

HARDLINE (-10 HYDRABORER TO RETURN)

$59.99

$

Usually ships in 3-6 days

0

29

Toro 147-5741

HARDLINE (HYDRABORE TO RETURN)

$67.99

$

Usually ships in 3-6 days

0

30

Toro 147-5742

HOSE (10OFX90S-18"-3000)

$211.99

$

Usually ships in 3-6 days

0

31

Toro 340-160

FITTING-HYD-90

$111.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

32

Toro 130-4349

LEVER

$180.99

$

Usually ships in 3-6 days

0

33

Toro 33015-00

See Supercession: 48-7960
(Superseded to 48-7960)

$

$

Not available

34

Toro 130-7377

KNOB-ROUND

$20.99

$

Usually ships in 3-6 days

0

35

Toro 106-7740-03

HANDLE-TOOL, GUIDE

$374.99

$

Usually ships in 3-6 days

0

36

Toro 104-5988-03

TOOL-GUIDE, ROD

$439.99

$

Usually ships in 3-6 days

0

37

Toro 32121-41

PIN-ROLL

$8.49

$

Usually ships in 3-6 days

0
