25532 E - Toro Hydra Borer for Maxi Sneaker 370 Vibratory Plow Hydraulic Motor Assembly No. AUH673156 Parts Diagram

Hydra Borer for Maxi Sneaker 370 Vibratory Plow

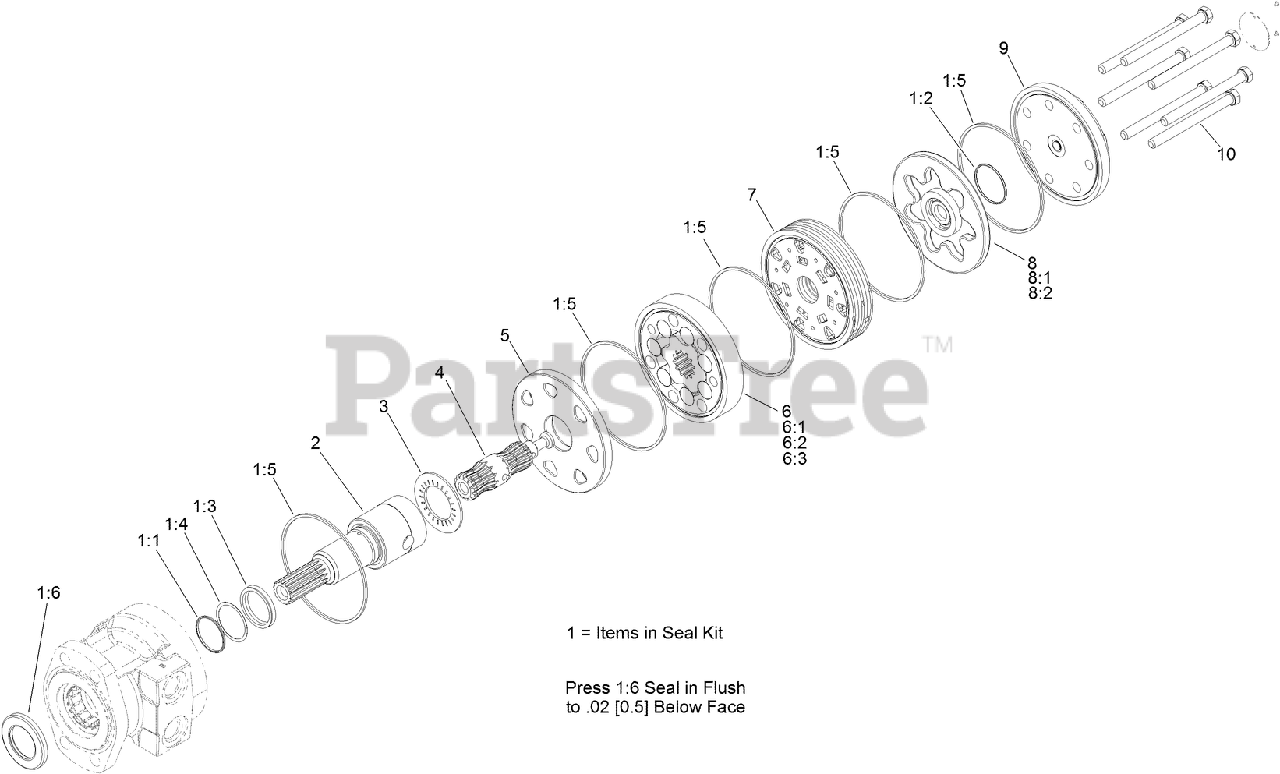

Hydraulic Motor Assembly No. AUH673156 Parts Diagram

  • Title

1

Toro 112-8405

SEAL KIT

$220.99

$

Usually ships in 3-6 days

0

1:1

RING-BACKUP

Note: Not serviced separately

$

$

Not available

1:2

Seal-Commutator

Note: Not serviced separately

$

$

Not available

1:3

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

1:4

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:5

Ring-Seal

Note: Not serviced separately

$

$

Not available

1:6

Seal-Dirt and Water

Note: Not serviced separately

$

$

Not available

2

Shaft-Coupling

Note: Not serviced separately

$

$

Not available

3

Toro 76-0850

BEARING-THRUST

$48.99

$

Usually ships in 3-6 days

0

4

Toro 76-0960

LINK-DRIVE

$551.99

$

Usually ships in 3-6 days

0

5

Toro 92-9754

PLATE-WEAR

$573.99

$

Usually ships in 3-6 days

0

6

Toro 76-0970

ROTOR SET

$1518.99

$

Usually ships in 3-6 days

0

6:1

Rotor

Note: Not serviced separately

$

$

Not available

6:2

Vane

Note: Not serviced separately

$

$

Not available

6:3

Stator

Note: Not serviced separately

$

$

Not available

7

Toro 92-9755

MANIFOLD

$1103.99

$

Usually ships in 3-6 days

0

8

Toro 106-1982

COMMUTATOR ASM

$249.99

$

Usually ships in 3-6 days

0

8:1

Commutator

Note: Not serviced separately

$

$

Not available

8:2

Ring-Commutator

Note: Not serviced separately

$

$

Not available

9

Toro 76-0940

END COVER ASM

$689.99

$

Usually ships in 3-6 days

0

10

Bolt-Special

Note: Not serviced separately

$

$

Not available
