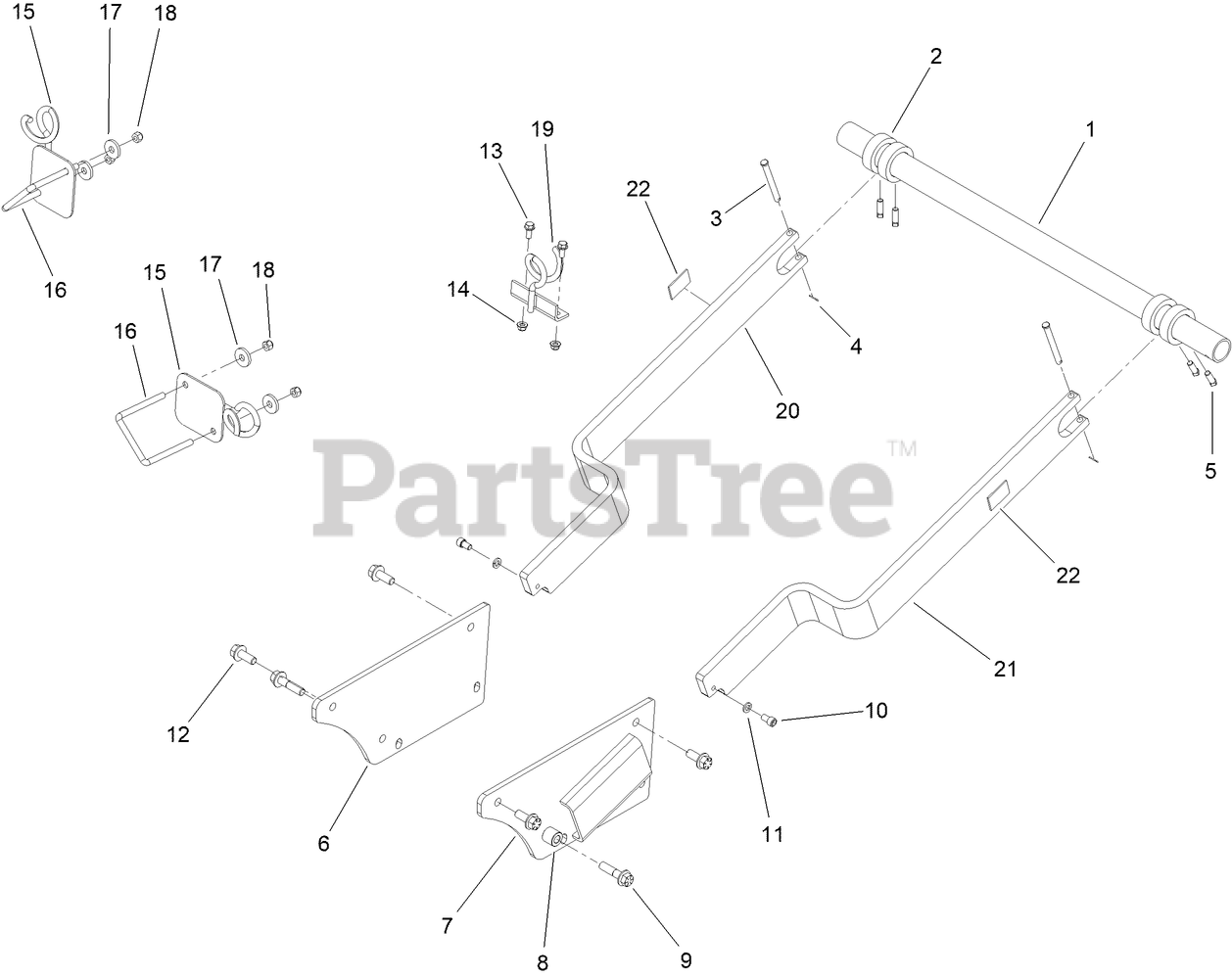

25538 E - Toro 22in Reel Carrier for Maxi Sneaker 370 Vibratory Plow Reel Carrier Assembly Parts Diagram

22in Reel Carrier for Maxi Sneaker 370 Vibratory Plow

Reel Carrier Assembly Parts Diagram

  • Title

1

Toro AUH350363

See Supercession: AUH350363-03
(Superseded to AUH350363-03)

$161.99

$

Usually ships in 3-6 days

0

2

Toro AUH350355

COLLAR-STOP

$70.99

$

Usually ships in 3-6 days

0

3

Toro AUH230243

PIN-CLEVIS

$43.99

$

Usually ships in 3-6 days

0

4

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

5

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

6

Toro 147-5765

TRENCHER MOUNT - LH

$307.99

$

Usually ships in 3-6 days

0

7

Toro 147-5764

TRENCHER MOUNT - RH

$307.99

$

Usually ships in 3-6 days

0

8

Toro 147-5766

SPACER (1.00 X .53 X .875)

$181.99

$

Usually ships in 3-6 days

0

9

Toro 133-0041

SCREW-HF

$

$

Currently unavailable

10

Toro 147-5758

BOLT (3/8-NC X 5/8", SOC, ZP)

$1.99

$

Usually ships in 3-6 days

0

11

Toro 139-5806

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

12

Toro 137-4653

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 147-5760

GUIDE - CABLE (PAINTED)

$78.99

$

Usually ships in 3-6 days

0

16

Toro 100-7067

U-BOLT (4 INCH)

$8.99

$

Usually ships in 3-6 days

0

17

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 147-5761

GUIDE - CABLE (PAINTED)

$155.99

$

Usually ships in 3-6 days

0

20

Toro 147-5762

ARM - LH REEL CARRIER (PAINTED)

$453.99

$

Usually ships in 3-6 days

0

21

Toro 147-5763

ARM - RH REEL CARRIER (PAINTED)

$453.99

$

Usually ships in 3-6 days

0

22

Toro 147-5759

REEL CARRIER RATED CAPACITY

$4.49

$

Usually ships in 3-6 days

0
