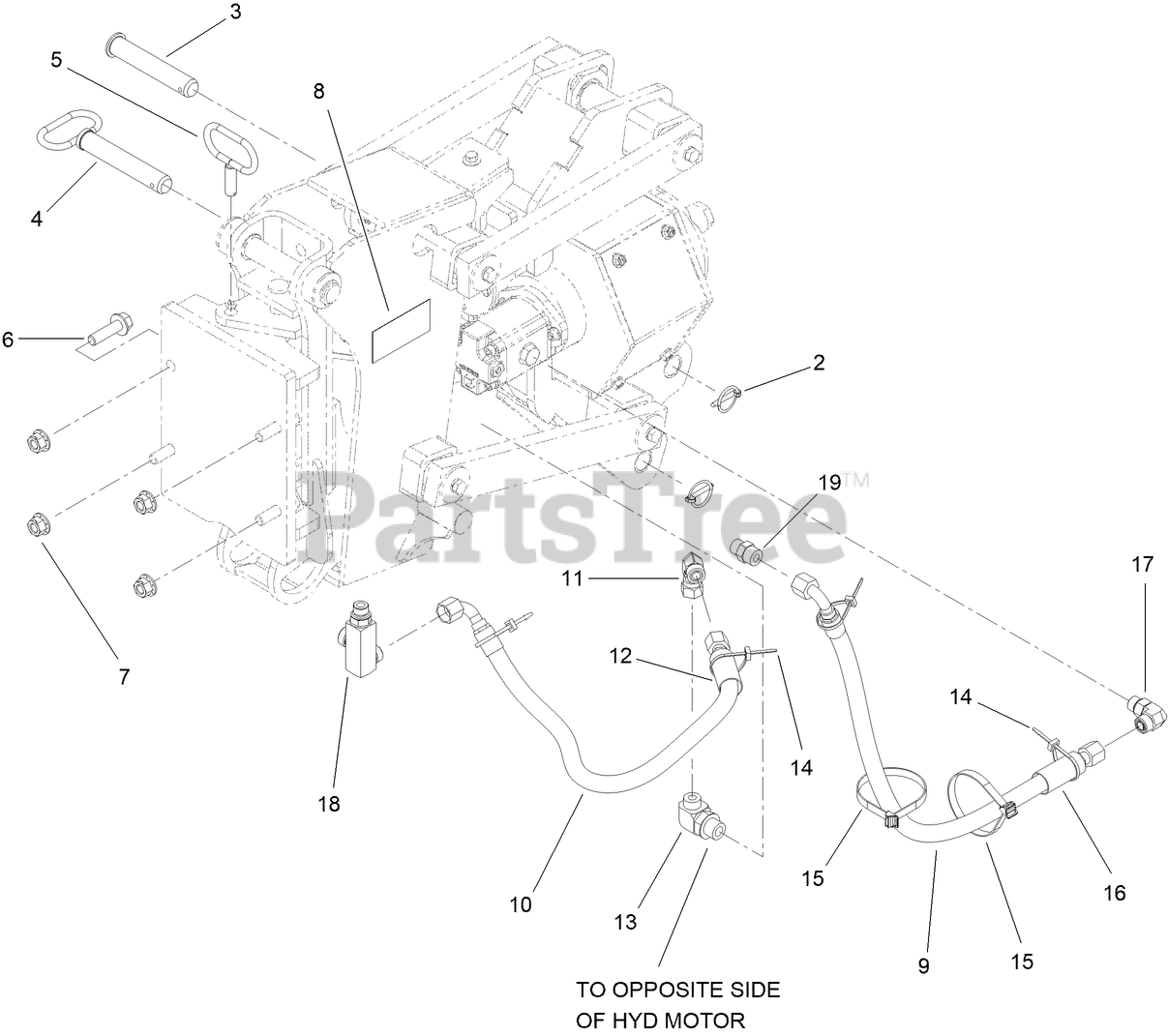

25542 E - Toro Field Plow for Maxi Sneaker 370, Pro Sneak 360, or Pro Sneak 365 Vibratory Plow Plow Lift System Assembly Parts Diagram

Field Plow for Maxi Sneaker 370, Pro Sneak 360, or Pro Sneak 365 Vibratory Plow

Plow Lift System Assembly Parts Diagram

  • Title

2

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

3

Toro AUH393843

PIN-MOUNTING, BLADE

$158.99

$

Usually ships in 3-6 days

0

4

Toro 125-8528

PIN

$330.99

$

Usually ships in 3-6 days

0

5

Toro 125-8535

LOCK-SWING

$241.99

$

Usually ships in 3-6 days

0

6

Toro 147-5582

FLG BLT(5/8-NC X 2.25", GR 8)

$3.99

$

Usually ships in 3-6 days

0

7

Toro 147-5401

FLG LOCKNUT (5/8-NC, GR G)

$5.99

$

Usually ships in 3-6 days

0

8

25542E MAXI SNEAKER PLOW DECAL KIT

Note: Not serviced separately

$

$

Not available

8:1

Toro 147-5643

AMPLITUDE CHART

Note: Not illustrated

$

$

Currently unavailable

8:2

Toro 147-5638

PLOW CONTROL

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0

8:3

Toro 147-5642

OIL LEVEL DECAL

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

8:4

Toro 147-5649

WARNING MOVING PARTS

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

8:5

Toro 147-5747

CALIFORNIA PROP 65 WARNING - PARTS

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

9

Toro 147-5482

HOSE (10OFX90S-36"-3000)

$192.99

$

Usually ships in 3-6 days

0

10

Toro 147-5473

HOSE (10OFX90S-33"-3000)

$132.99

$

Usually ships in 3-6 days

0

11

Toro 340-160

FITTING-HYD-90

$111.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

12

Toro 147-5468

ABRASION SLEEVE (1.25" X 33")

$21.99

$

Usually ships in 3-6 days

0

13

Toro 340-139

FITTING-ELBOW 90

$188.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-81

O-RING

Note: Not illustrated

$3.49

$

In Stock, only 2 left!

0

13:2

Toro 237-65

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 11

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 147-5467

CABLE TIE (1/2") 20" LG

$10.99

$

Usually ships in 3-6 days

0

16

Toro 147-5469

ABRASION SLEEVE (1.25" X 37")

$23.99

$

Usually ships in 3-6 days

0

17

Toro 147-5706

CONNECTOR (10S-10O90)

$29.99

$

Usually ships in 3-6 days

0

18

Toro 147-5435

CONNECTOR (10S-10O-12O)

$116.99

$

Usually ships in 3-6 days

0

19

Toro 147-5727

CONNECTOR (10S-10O)

$10.99

$

Usually ships in 3-6 days

0
