25546 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324000105) (2024) Fuel System Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

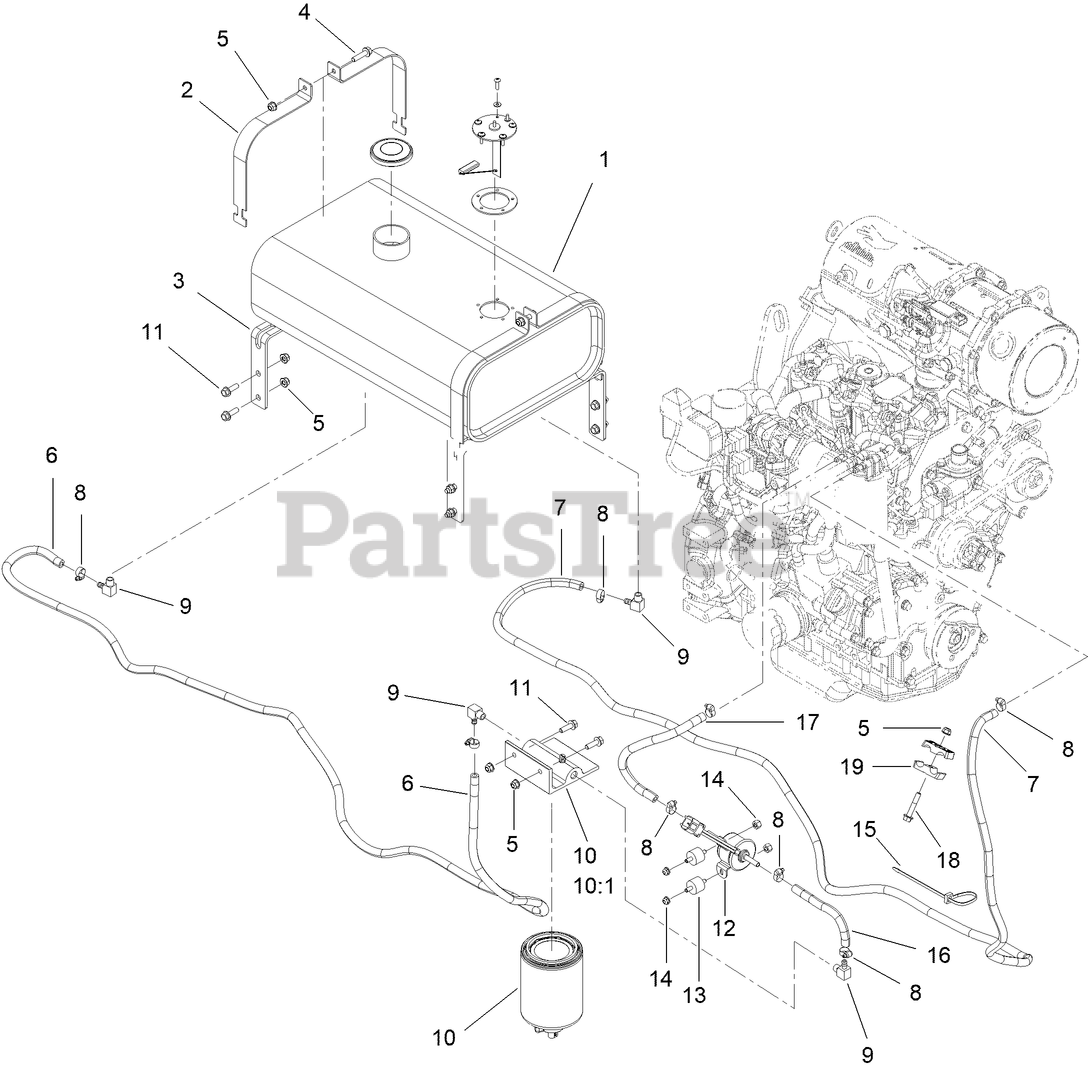

Fuel System Assembly Parts Diagram

  • Title

1

Toro AUH673305

See Supercession: 130-7379
(Superseded to 130-7379)

$1688.99

$

Usually ships in 3-6 days

0

2

Toro AU105630

See Supercession: AU105630-03
(Superseded to AU105630-03)

$24.99

$

Usually ships in 3-6 days

0

3

Toro 147-5397

BRACKET-FUEL TANK

$45.99

$

Usually ships in 3-6 days

0

4

Toro 3234-36

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-4330

HOSE-FUEL

$63.99

$

Usually ships in 3-6 days

0

7

Toro 130-4331

HOSE-FUEL

$71.99

$

Usually ships in 3-6 days

0

8

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

9

Toro 147-5395

4/O COUPLER (04N-04H90)

$12.99

$

Usually ships in 3-6 days

0

10

Toro 125-2914

SEPARATOR FILTER ASM

$124.99

$

Usually ships in 3-6 days

0

10:1

Toro 125-2915

FILTER-FUEL/WATER SEPARATOR

$45.99

$

In Stock, Qty 20+

0

11

Toro 3234-17

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

12

Toro 121-5613

PUMP-FUEL, ELECTRIC

$369.99

$

Usually ships in 3-6 days

0

13

Toro 125-8511

MOUNT-ISOLATER

$38.99

$

Usually ships in 3-6 days

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 117-4026

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

17

Toro 130-4332

HOSE-FUEL

$25.99

$

Usually ships in 3-6 days

0

18

Toro 94-5780

SCREW-HWH

$8.99

$

In Stock, Qty 8

0

19

Toro 56-7971

CLAMP-TUBE

$28.99

$

Usually ships in 3-6 days

0
