25546 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000106 - 999999999) (2024) Trencher Hydraulics Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

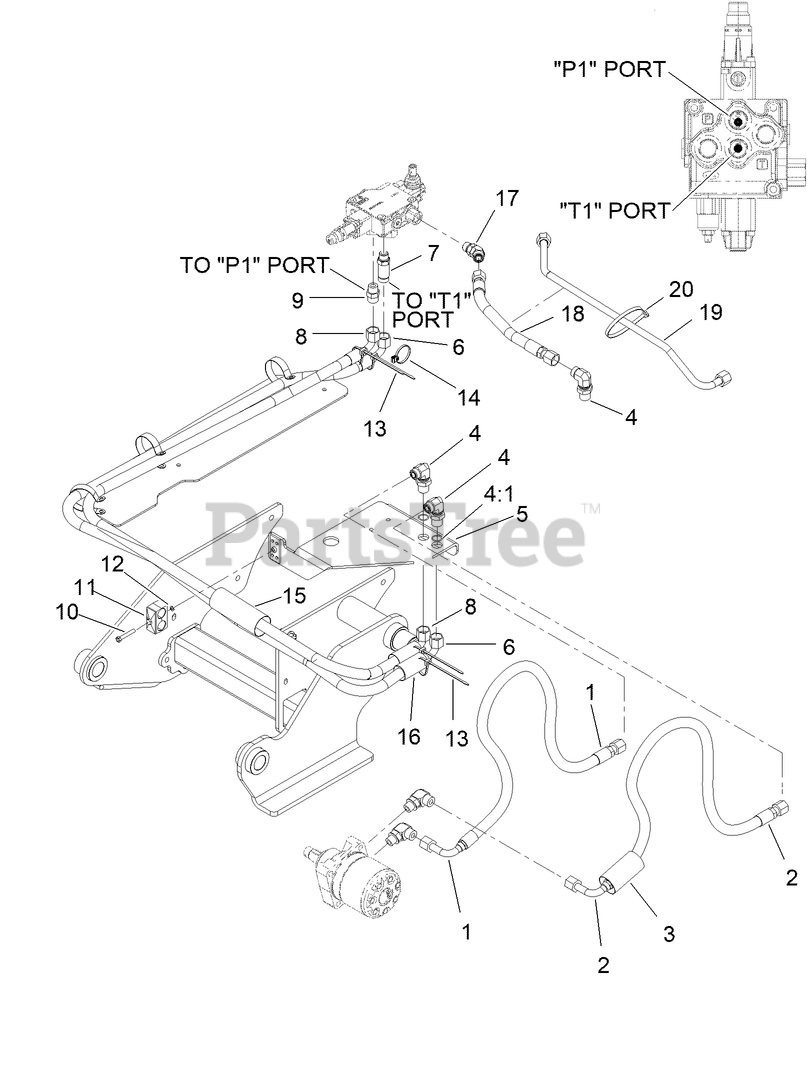

Trencher Hydraulics Assembly Parts Diagram

  • Title

1

Toro 147-5687

HOSE (10OFX90L-44"-3000)

$118.99

$

Usually ships in 3-6 days

0

2

Toro 147-5687

HOSE (10OFX90L-44"-3000)

$118.99

$

Usually ships in 3-6 days

0

3

Toro 147-5668

ABRASION SLEEVE (2.07" X 44")

$

$

Currently unavailable

4

Toro 340-72

FITTING-BULKHEAD, 90 DEG

$54.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

5

Toro 147-5717

HOSE MOUNT BRACKET

$304.99

$

Usually ships in 3-6 days

0

6

Toro 147-5662

HOSE (10OFX90S-10OFX90S-88"-3000)

$176.99

$

Usually ships in 3-6 days

0

7

Toro 147-5721

CONNECTOR (10O-10S, LG)

$28.99

$

Usually ships in 3-6 days

0

8

Toro 147-5663

HOSE (10OFX90S-10OFX90S-83"-3000)

$172.99

$

Usually ships in 3-6 days

0

9

Toro 147-5727

CONNECTOR (10S-10O)

$10.99

$

Usually ships in 3-6 days

0

10

Toro 112-3305

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 147-5688

CLAMP SET (3-D-1"-5/16-18)

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 147-5729

EDGE CLIP TOP PERPENDICULAR (.04-.12)

$3.99

$

Usually ships in 3-6 days

0

15

Toro 147-5658

ABRASION SLEEVE (2.07" X 60")

$48.99

$

Usually ships in 3-6 days

0

16

Toro 147-5656

ABRASION SLEEVE (1.59" X 24")

$15.99

$

Usually ships in 3-6 days

0

17

Toro 147-5728

CONNECTOR (10S-10O45)

$33.99

$

Usually ships in 3-6 days

0

18

Toro 147-5724

HOSE (10OFX-16"-3000)

$108.99

$

Usually ships in 3-6 days

0

19

Toro 147-5744

HARDLINE (-10 HYDRABORER TO TRENCHER)

$76.99

$

Usually ships in 3-6 days

0

20

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
