26625 B - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Handle Assembly Parts Diagram

Walk-Behind Mower

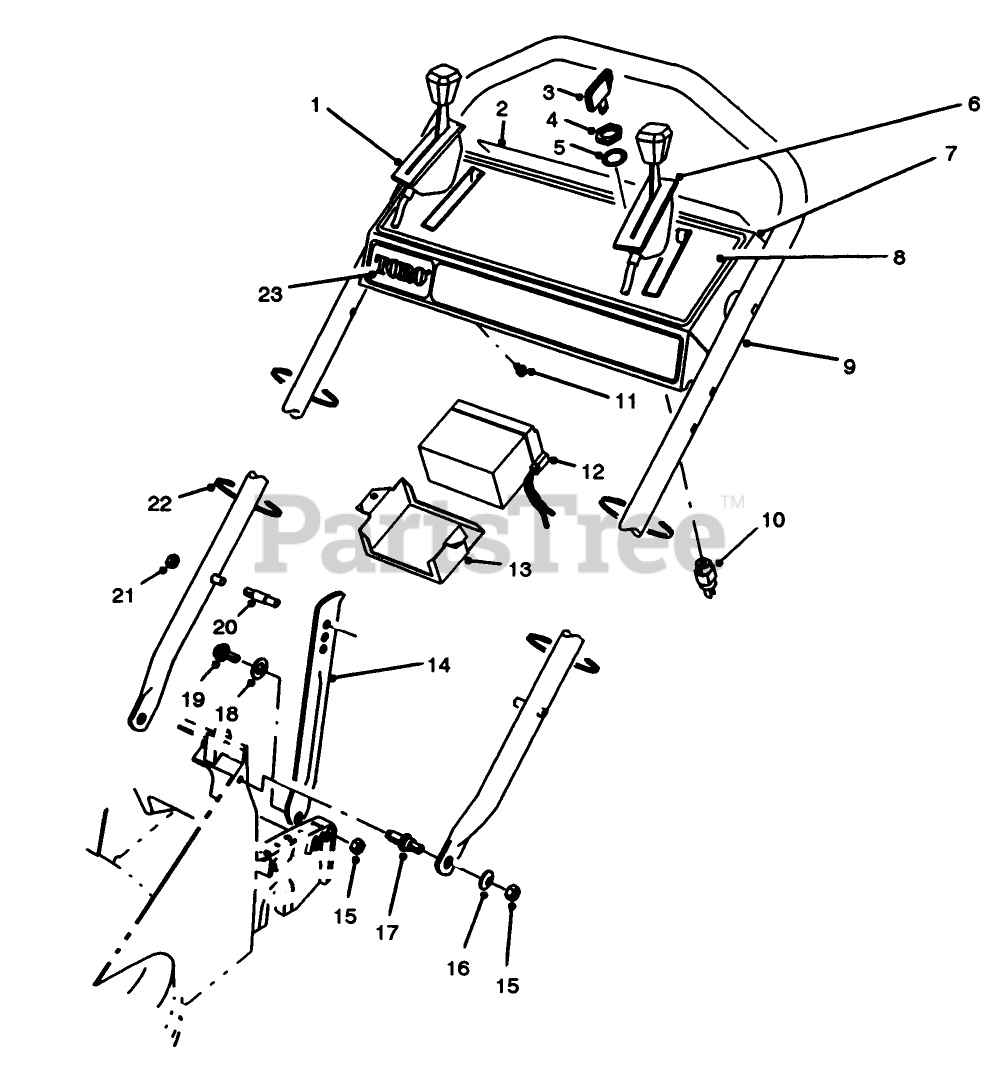

Handle Assembly Parts Diagram

  • Title

1

Toro 76-2710

See Supercession: 76-2713
(Superseded to 76-2713)

$120.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

See Supercession: 93-6655
(Superseded to 93-6655)

$

$

Not available

Toro 72-8030

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

6

Toro 66-0236

THROTTLE CONTROL

$148.99

$

Usually ships in 3-6 days

0

7

Toro 13-5859

DISCONTINUED

$

$

Not available

8

Toro 66-0280

DISCONTINUED

$

$

Not available

9

Toro 84-8331

UPPER HANDLE, PVC DIP

$311.99

$

Usually ships in 3-6 days

0

10

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 55-7520

BATTERY ASSEMBLY,WET

$

$

Not available

13

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$

$

Not available

14

Toro 65-5730

DISCONTINUED

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 66-0450

DISCONTINUED

$

$

Not available

18

Toro 256-313

DISCONTINUED

$

$

Not available

19

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

20

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$40.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$4.49

$

In Stock, Qty 20+

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 65-5650

DISCONTINUED

$

$

Not available

Toro 49-8312

WIRE HARNESS

Note: Not illustrated

$137.99

$

Usually ships in 3-6 days

0

Toro 22-4710

See Supercession: 98-2391
(Superseded to 98-2391)

Note: Not illustrated

$

$

Not available
