26631 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Gear Case Assembly Parts Diagram

Walk-Behind Mower

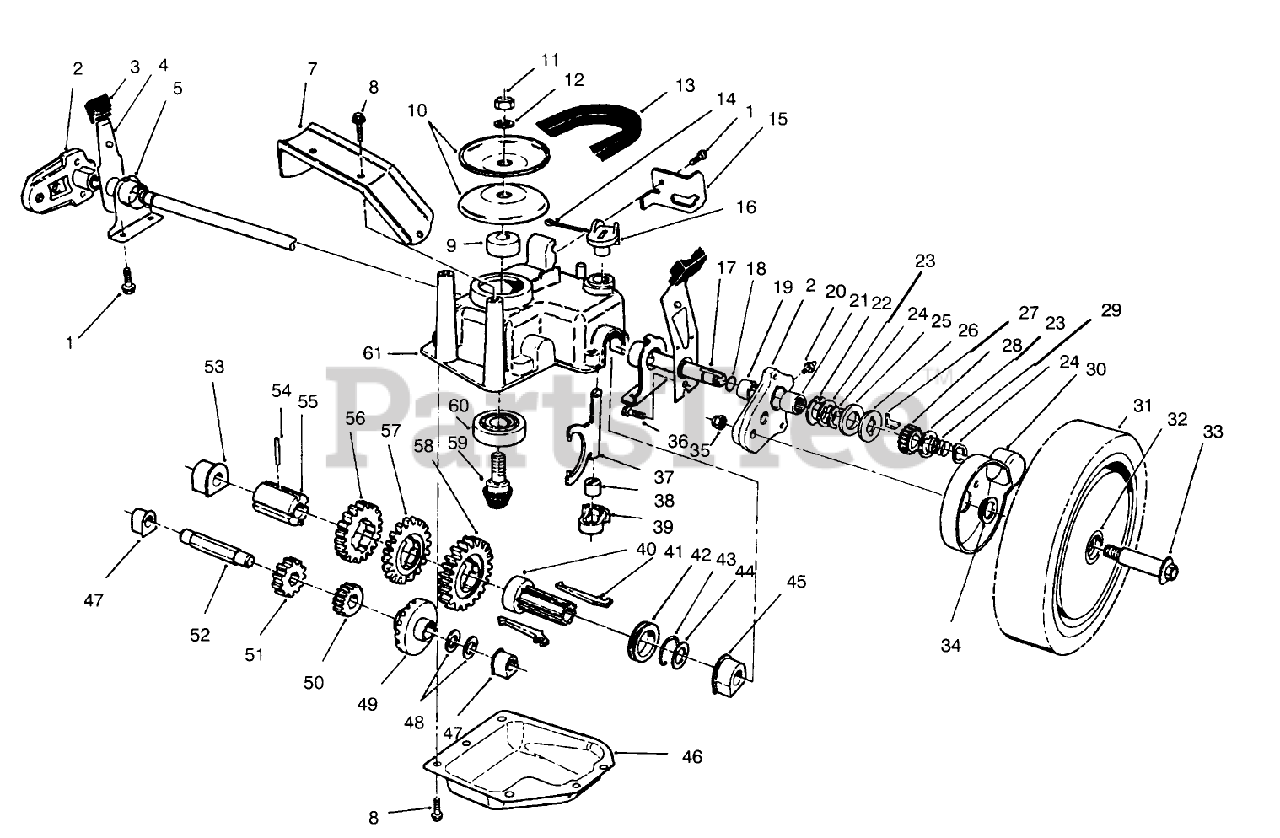

Gear Case Assembly Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 65-5042

PIVOT ARM ASM

$67.99

$

Usually ships in 3-6 days

0

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

4

Toro 65-5440

SPRING ARM ASM

$31.99

$

Usually ships in 3-6 days

0

5

Toro 66-0360

CAP-END

$10.99

$

Usually ships in 3-6 days

0

7

Toro 65-5190

See Supercession: 65-5190-03
(Superseded to 65-5190-03)

$

$

Not available

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 5

0

10

Toro 60-8840

See Supercession: 100-1176
(Superseded to 100-1176)

$9.49

$

In Stock, only 2 left!

0

11

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 20+

0

14

Toro 3272-5

PIN-COTTER

$1.99

$

In Stock, Qty 11

0

15

Toro 76-2930

RETAINER-CABLE

$

$

Not available

16

Toro 76-0920

LEVER-SHIFT

$8.49

$

Usually ships in 3-6 days

0

17

Toro 65-4770

SHAFT-OUTPUT

$

$

Not available

18

Toro 237-153

O-RING

$4.99

$

In Stock, Qty 10

0

19

Toro 70-9760

BUSHING

$5.49

$

In Stock, Qty 20+

0

20

Toro 302-56

FITTING-GREASE

$5.99

$

In Stock, Qty 8

0

21

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

23

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

24

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

25

Toro 65-4710

RING-FRICTION

$3.99

$

In Stock, Qty 20+

0

26

Toro 65-4760

WASHER-CLUTCH

$2.49

$

In Stock, Qty 20+

0

27

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$8.49

$

In Stock, Qty 20+

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$8.49

$

In Stock, Qty 14

0

28

Toro 65-4750

GEAR-PINION

$12.99

$

In Stock, Qty 20+

0

29

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

30

Toro 74-1660

COVER-WHEEL

$9.49

$

In Stock, Qty 20+

0

31

Toro 14-9959

WHL & TIRE ASSEMBLY

$63.99

$

Usually ships in 3-6 days

0

32

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

33

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 4 left!

0

34

Toro 74-1670

SPACER-COVER, WHEEL

$8.49

$

Usually ships in 3-6 days

0

35

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

36

Toro 65-5220

SCREW-HSH, THREAD FORMING

$4.49

$

Usually ships in 3-6 days

0

37

Toro 60-8870

YOKE-SHIFT

$27.99

$

In Stock, only 2 left!

0

38

Toro 29-9570

BUSHING-YOKE

$12.99

$

In Stock, only 3 left!

0

39

Toro 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

40

Toro 76-0780

SLEEVE-KEY, SHIFT

$7.49

$

In Stock, only 3 left!

0

41

Toro 76-0760

KEY-SHIFT

$

$

Not available

42

Toro 76-0770

COLLAR-SHIFT

$25.99

$

In Stock, only 1 left!

0

43

Toro 65-5250

CLIP-SPRING

$0.99

$

In Stock, Qty 11

0

44

Toro 36-4780

WASHER-PLAIN

$8.99

$

In Stock, Qty 20+

0

45

Toro 60-8770

BUSHING-OUTPUT

$8.49

$

In Stock, Qty 10

0

46

Toro 60-8730

DISCONTINUED
(Superseded to 60-8730-03)

$

$

Not available

47

Toro 60-8750

BUSHING

$7.49

$

In Stock, only 2 left!

0

48

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

49

Toro 55-3760

See Supercession: 104-7668
(Superseded to 104-7668)

$38.99

$

In Stock, Qty 9

0

50

Toro 55-3780

PINION-20T

$43.99

$

In Stock, only 1 left!

0

51

Toro 55-3800

PINION-25T

$50.99

$

Usually ships in 3-6 days

0

52

Toro 60-8800

See Supercession: 614696
(Superseded to 614696)

$124.99

$

Usually ships in 3-6 days

0

53

Toro 60-8850

BUSHING

$8.99

$

In Stock, Qty 7

0

54

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

55

Toro 60-8790

SLEEVE-GEAR

$63.99

$

Usually ships in 3-6 days

0

56

Toro 55-3810

GEAR-39T

$63.99

$

Usually ships in 3-6 days

0

57

Toro 55-3790

GEAR-44T

$80.99

$

Usually ships in 3-6 days

0

58

Toro 55-3770

GEAR-49T

$80.99

$

Usually ships in 3-6 days

0

59

Toro 60-8890

See Supercession: 104-7667
(Superseded to 104-7667)

$19.99

$

In Stock, Qty 7

0

60

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

61

Toro 60-8710

CASE-GEAR, UPPER

$

$

Not available

Toro 62-6673

GEARCASE ASM

Note: Not illustrated

$962.99

$

Usually ships in 3-6 days

0
