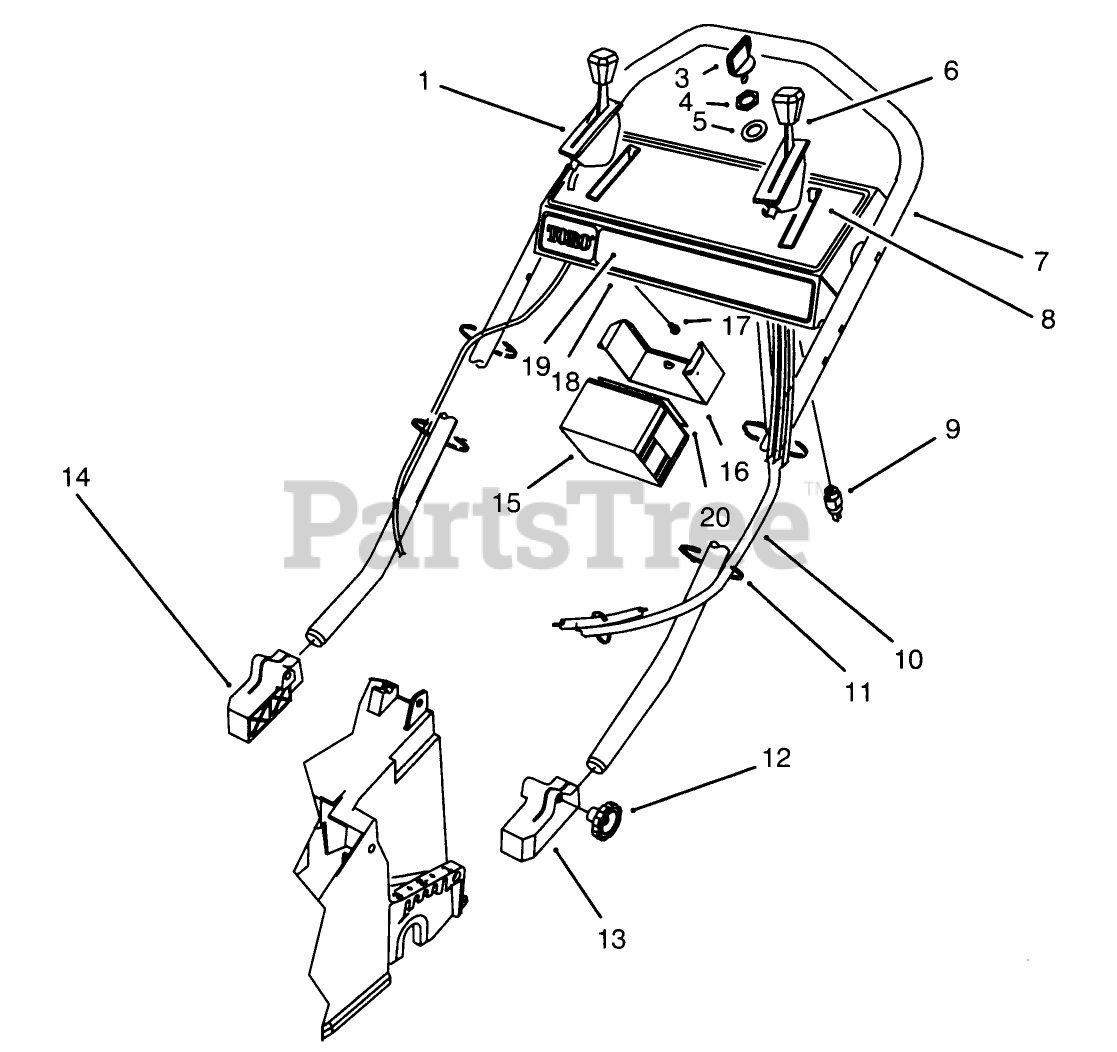

26635 BC - Toro 53cm Walk-Behind Mower (SN: 059000001 - 059999999) (1995) Handle Assembly Parts Diagram

53cm Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Toro 93-6632

CONTROL-SPEED, GROUND

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 2 left!

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

6

Toro 93-6631

CONTROL - THROTTLE

$112.99

$

Usually ships in 3-6 days

0

7

Toro 93-6637

HANDLE - 53CM (DIPPED)

$305.99

$

Usually ships in 3-6 days

0

8

Toro 93-6660

DISCONTINUED

$

$

Not available

9

Toro 46-5780

STARTER SWITCH ASM

$33.99

$

In Stock, Qty 10

0

10

Toro 80-4792

DISCONTINUED

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 19-4050

KNOB

$18.99

$

In Stock, Qty 5

0

13

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

14

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

15

Toro 55-7520

BATTERY ASSEMBLY,WET

$

$

Not available

16

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$

$

Not available

17

Toro 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 17

0

18

Toro 16-8759

PANEL W/DECALS

$134.99

$

Usually ships in 3-6 days

0

19

Toro 71-9871

DECAL - PANEL KEY

$

$

Not available

20

Toro 93-6668

DECAL-BATTERY

$22.99

$

Usually ships in 3-6 days

0

Toro 22-4710

See Supercession: 98-2391
(Superseded to 98-2391)

Note: Not illustrated

$

$

Not available
