27-7090 - Toro Air Cleaner Kit for Groundsmaster 72/ProLine 118 Model 30718 Air Cleaner Kit (72" Groundsmaster) Parts Diagram

Air Cleaner Kit for Groundsmaster 72/ProLine 118 Model 30718

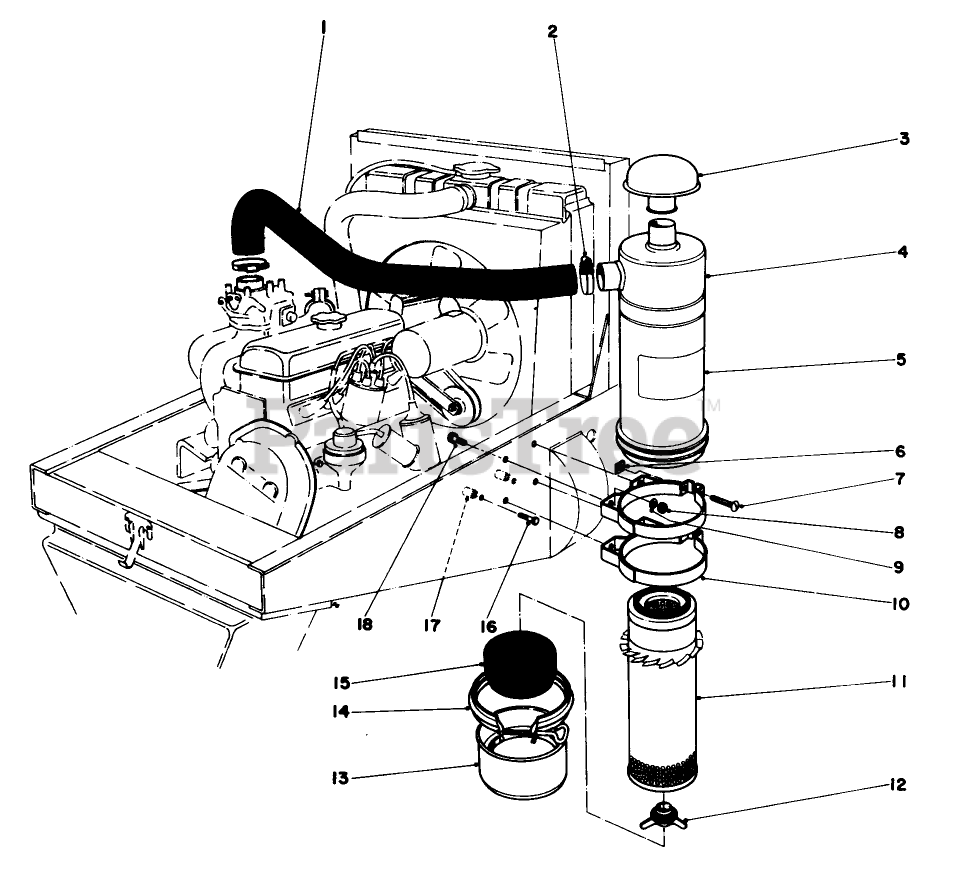

Air Cleaner Kit (72" Groundsmaster) Parts Diagram

  • Title

1

Toro 27-7200

AIR CLEANER HOSE

$120.99

$

Usually ships in 3-6 days

0

2

Toro 241242

Clamp

$

$

Not available

3

Toro 27-7180

CAP

$93.99

$

Usually ships in 3-6 days

0

4

Toro 27-7100

AIR CLEANER ASM

$487.99

$

Usually ships in 3-6 days

0

5

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

6

Toro 32107-11

NUT-SQUARE

$

$

Not available

7

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Toro 32534

Lockwasher

$

$

Currently unavailable

10

Toro 27-7170

MOUNTING BAND ASM

$

$

Not available

11

Toro 27-7110

See Supercession: 108-3833
(Superseded to 108-3833)

$31.99

$

In Stock, only 2 left!

0

12

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

13

Toro 27-7150

A/C CUP ASM

$110.99

$

Usually ships in 3-6 days

0

14

Toro 27-7130

CLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

15

Toro 27-7140

SKIRT-BAFFLE

$114.99

$

Usually ships in 3-6 days

0

16

Toro 3290-360

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 27-7220

CLEANER FILTER

Note: Not illustrated

$

$

Not available
