28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 220000001 - 220999999) (2002) UPPER TRACTION ASSEMBLY Parts Diagram

24" Snow Thrower

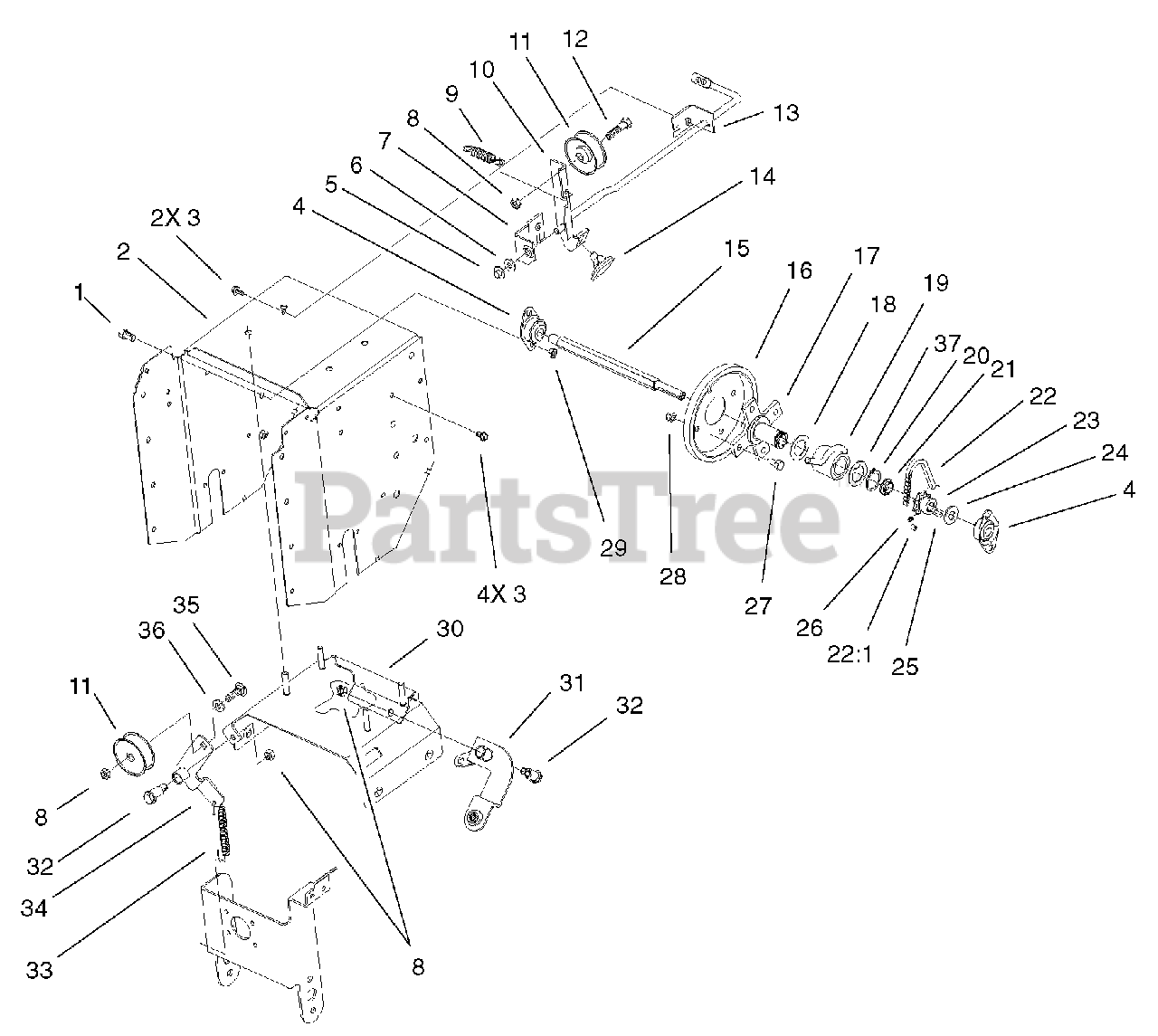

UPPER TRACTION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 323-4

Screw-HH

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 95-6157-02

Frame-Traction

$261.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-4

Screw-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 94-8824

Bearing-Triangle

$43.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 3290-320

Retainer-Push On

$1.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-8829

Mounting-Clutch Rod Bracket

$

$

Not available

8

Lawn-Boy 3296-59

Nut-Lock, NI
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 53-7570

Spring

$18.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 94-9942-03

Clutch-Auger

$

$

Not available

11

Lawn-Boy 3-4244

Pulley-Idler

$29.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 323-29

Screw-HH

$0.99

$

In Stock, Qty 8

0

13

Lawn-Boy 94-8841

Mounting-Rear Clutch Rod

$

$

Not available

14

Lawn-Boy 66-8060

Pad-Brake

$19.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 94-8816

Shaft-Hex

$131.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 40-8170

Friction Wheel

$94.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 95-7931

Hub-Traction Disc

$438.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 9547

Washer-Thrust

$7.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 94-8883

Slider Ring ASM

$120.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 32151-36

Ring-Retaining

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 94-8862

Spacer

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 20-1810

Roller-Chain

$103.99

$

In Stock, only 1 left!

0

22:1

Lawn-Boy 2710-6

Link-Connecting

$22.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 5-9820

Sprocket

$112.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611878

Washer-Thrust

$20.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 94-8850

Key-Square

$2.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 3245-32

Screw-HS

$5.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3296-29

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 94-8851-03

Brace

$

$

Not available

31

Lawn-Boy 99-9315

Shift Arm ASM

$325.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 94-8859

Bolt-Shoulder

$

$

Not available

33

Lawn-Boy 94-8870

Spring-Extension Idler

$14.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 94-8864

Bracket-Idler Hub

$

$

Not available

35

Lawn-Boy 3231-26

Screw-CARR

$5.99

$

In Stock, only 4 left!

0

36

Lawn-Boy 9202594

Washer

$0.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 98-2252

Washer-Thrust

$15.99

$

Usually ships in 3-6 days
