29516 - Toro 24" Stand-On Aerator (SN: 413000000 - 414199999) Engine Assembly Parts Diagram

24" Stand-On Aerator

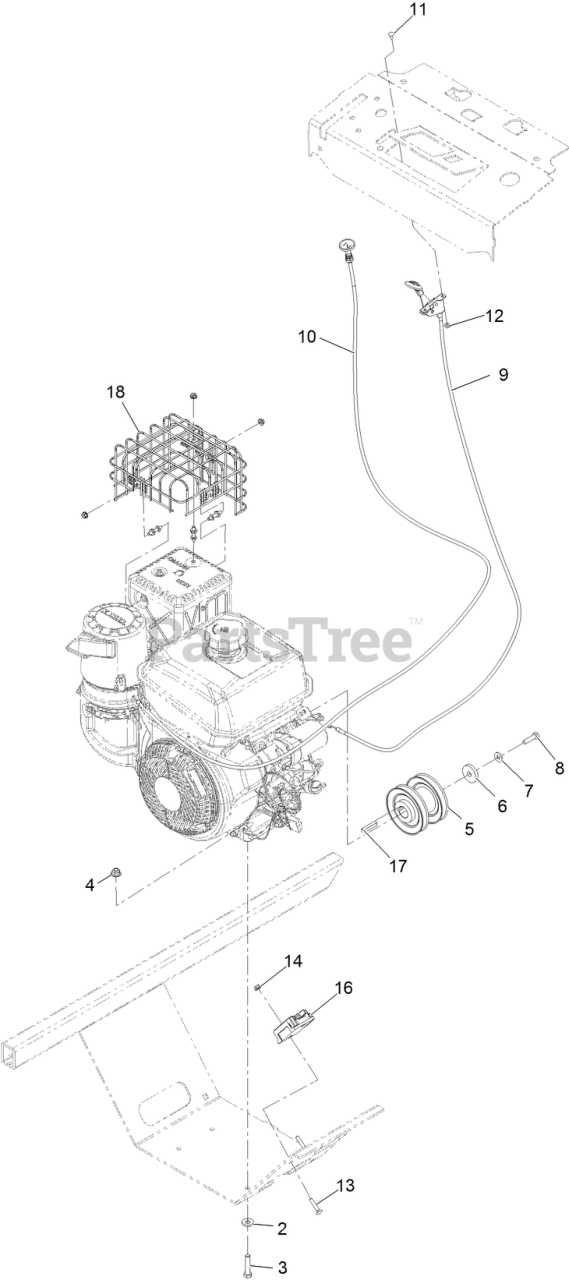

Engine Assembly Parts Diagram

  • Title

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 323-9

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 126-9142

PULLEY

$124.99

$

Usually ships in 3-6 days

0

6

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

7

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

8

Toro 33114-030

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro 109-3958

CONTROL-THROTTLE

$44.99

$

In Stock, Qty 17

0

10

Toro 135-2133

CABLE-CHOKE, PUSH/PULL

$47.99

$

Usually ships in 3-6 days

0

11

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 126-9904

REGULATOR

$162.99

$

In Stock, only 1 left!

0

17

Toro 135-3980

KEY-SQUARE, 7MM

$6.99

$

Usually ships in 3-6 days

0

18

Toro 135-3366

KIT-MUFFLER BIRDCAGE

$72.99

$

Usually ships in 3-6 days

0
