29518 - Toro 30" Stand-On Aerator (SN: 314000001 - 314999999) (2014) Auxiliary Hydraulic Assembly Parts Diagram

30" Stand-On Aerator

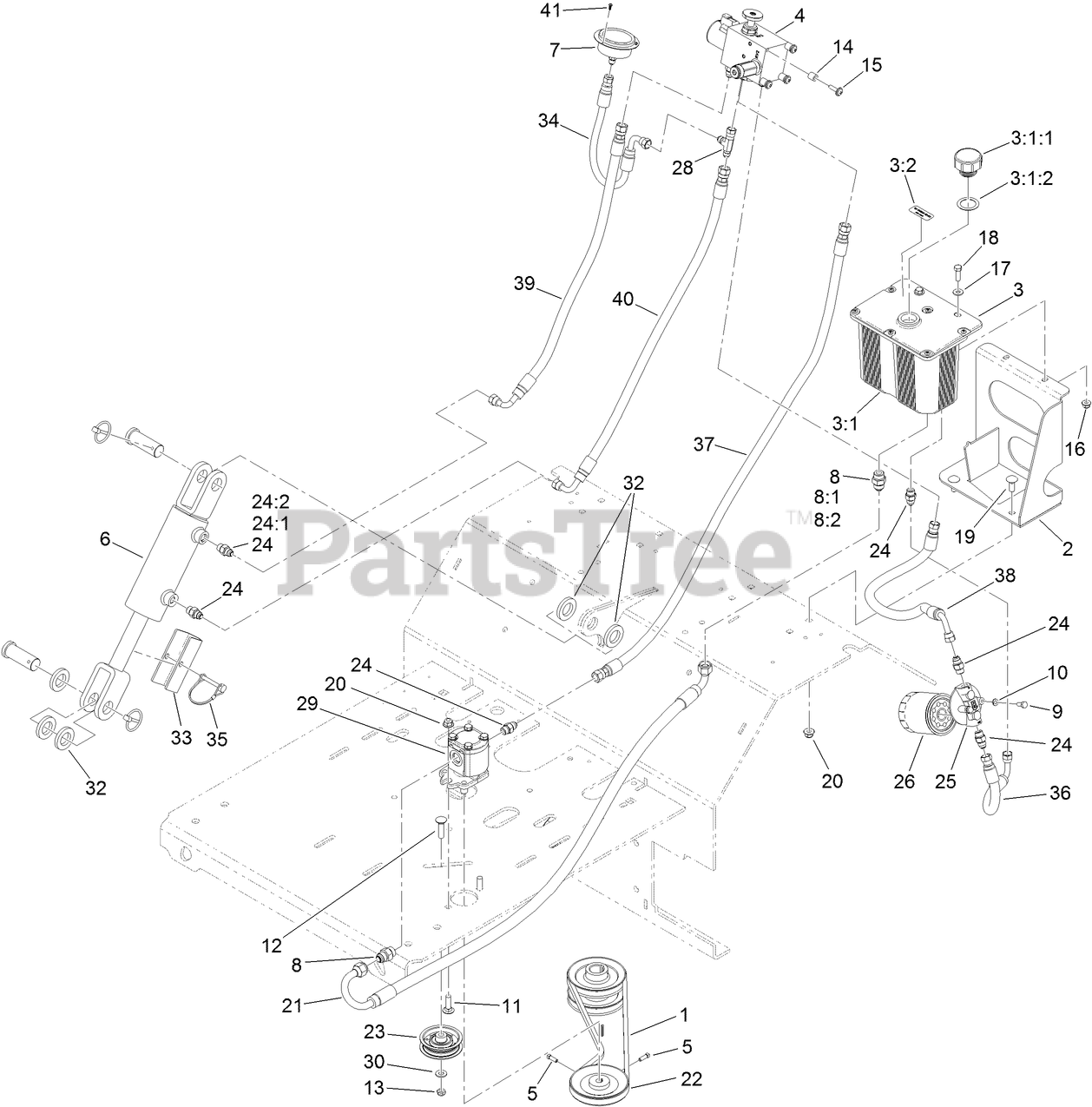

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Toro 116-8874

BELT-4L SECTION

$38.99

$

In Stock, Qty 11

0

2

Toro 116-6618-03

BRACKET-TANK, HYDRAULIC

$146.99

$

Usually ships in 3-6 days

0

3

Toro 116-7557

RESERVOIR ASM

$353.99

$

Usually ships in 3-6 days

0

3:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

3:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

3:2

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

4

Toro 116-9549

VALVE-MANIFOLD

$1335.99

$

Usually ships in 3-6 days

0

5

Toro 3241-6

SCREW-SQH

$5.99

$

Usually ships in 3-6 days

0

6

Toro 116-6969

HYD CYLINDER ASM

$1108.99

$

Usually ships in 3-6 days

0

7

Toro 116-8178

GAUGE-PRESSURE
(Superseded to 135-3970)

$133.99

$

In Stock, only 1 left!

0

8

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

8:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

8:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

11

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

12

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

13

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

14

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

15

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, only 2 left!

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 116-9309

HOSE-HYDRAULIC

$117.99

$

Usually ships in 3-6 days

0

22

Toro 116-6667

PULLEY

$103.99

$

Usually ships in 3-6 days

0

23

Toro 116-6760

PULLEY-IDLER, FLAT

$45.99

$

In Stock, only 2 left!

0

24

Toro 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

24:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

24:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

25

Toro 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

26

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

28

Toro 353-877

FITTING-HYD, TEE

$25.99

$

Usually ships in 3-6 days

0

29

Toro 116-9129

HYDRAULIC PUMP ASM

$862.99

$

Usually ships in 3-6 days

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 116-6781

SPACER

$16.99

$

Usually ships in 3-6 days

0

33

Toro 116-7307-01

STOP-CYLINDER

$38.99

$

Usually ships in 3-6 days

0

34

Toro 116-8180

HOSE-HYDRAULIC, HP

$59.99

$

Usually ships in 3-6 days

0

35

Toro 112-2583

See Supercession: 100-1663
(Superseded to 100-1663)

$17.99

$

In Stock, only 4 left!

0

36

Toro 116-6675

HOSE-HYDRAULIC, LP

$39.99

$

Usually ships in 3-6 days

0

37

Toro 116-8151

HOSE-HYDRAULIC

$50.99

$

Usually ships in 3-6 days

0

38

Toro 116-9308

HOSE-HYDRAULIC

$43.99

$

Usually ships in 3-6 days

0

39

Toro 116-6677

HOSE-HYDRAULIC

$67.99

$

Usually ships in 3-6 days

0

40

Toro 116-6678

HOSE-HYDRAULIC, HP

$70.99

$

Usually ships in 3-6 days

0

41

Toro 363-8552

SCREW-TAP

$0.99

$

Usually ships in 3-6 days

0
