29518 - Toro 30" Stand-On Aerator (SN: 314000001 - 314999999) (2014) Engine Assembly Parts Diagram

30" Stand-On Aerator

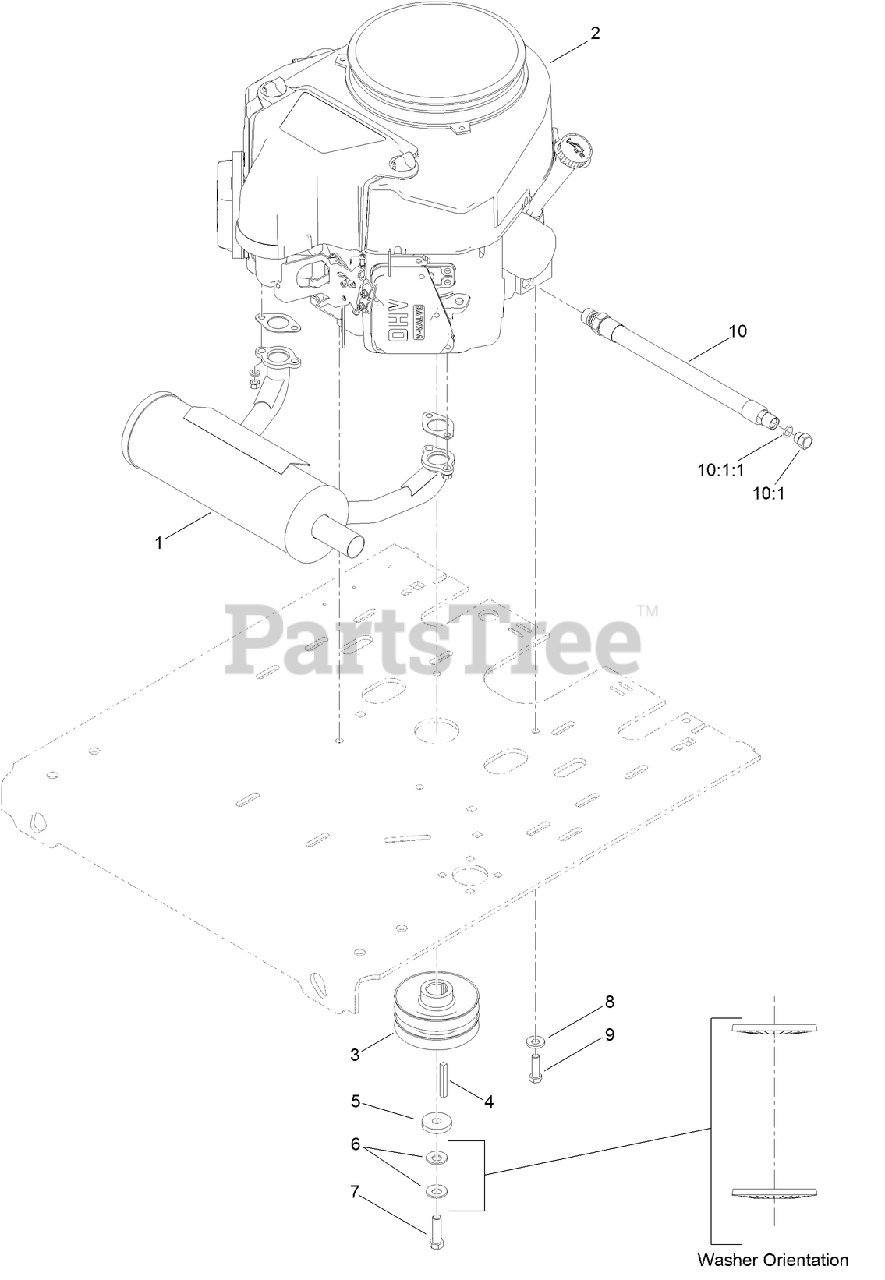

Engine Assembly Parts Diagram

  • Title

1

Toro 116-3735

MUFFLER-HORIZONTAL

$232.99

$

In Stock, only 2 left!

0

2

ENGINE-KAW FS481V, ES

Note: Not serviced separately

$

$

Not available

2

ENGINE-KAW FS481V, ES

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Toro 116-9709

PULLEY

$173.99

$

Usually ships in 3-6 days

0

4

Toro 103-4177

KEY

$5.99

$

In Stock, only 2 left!

0

5

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

6

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

7

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.99

$

In Stock, Qty 13

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

$42.99

$

In Stock, Qty 6

0

10:1

Toro 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

10:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0
