30032 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp (SN: 290000001 - 290999999) (2009) DECK DEFLECTOR, ROLLER AND COVER ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 15hp

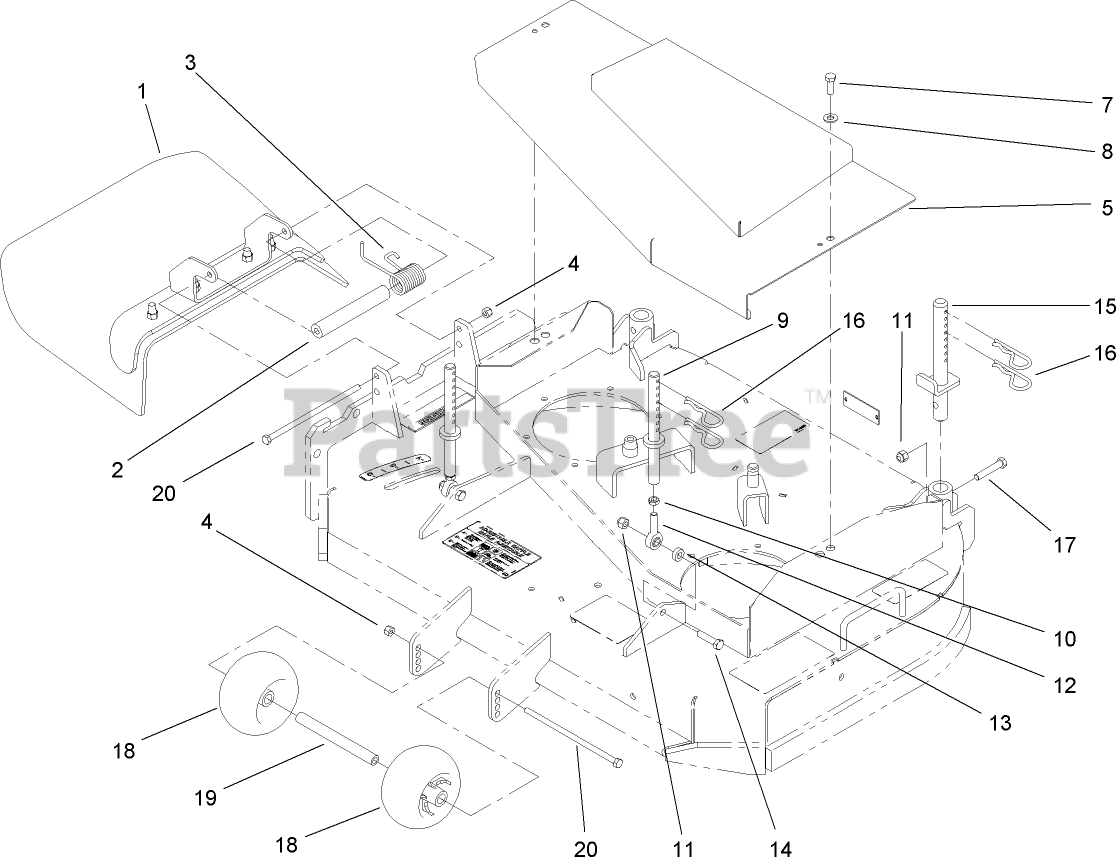

DECK DEFLECTOR, ROLLER AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 110-0790

DEFLECTOR ASM

$321.99

$

Usually ships in 3-6 days

0

2

Toro 105-4622

SPACER

$11.99

$

In Stock, only 3 left!

0

3

Toro 104-8554

SPRING-TORSION

$27.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 110-6964-01

COVER ASM

$380.99

$

Usually ships in 3-6 days

0

7

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 108-2674

FRONT PIN ASM

$107.99

$

Usually ships in 3-6 days

0

10

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 1-613204

BALLJOINT

$36.99

$

In Stock, Qty 20+

0

13

Toro 104-1156

SPACER

$7.99

$

In Stock, only 1 left!

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 110-2086

REAR PIN ASM

$84.99

$

Usually ships in 3-6 days

0

16

Toro 3290-256

PIN-HAIR

$9.49

$

In Stock, Qty 7

0

17

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

19

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

20

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0
