30069 - Toro Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp (SN: 314000001 - 314999999) (2014) Parking Brake Assembly Parts Diagram

Walk-Behind Mower, Pistol-Grip, Hydro Drive, 18hp

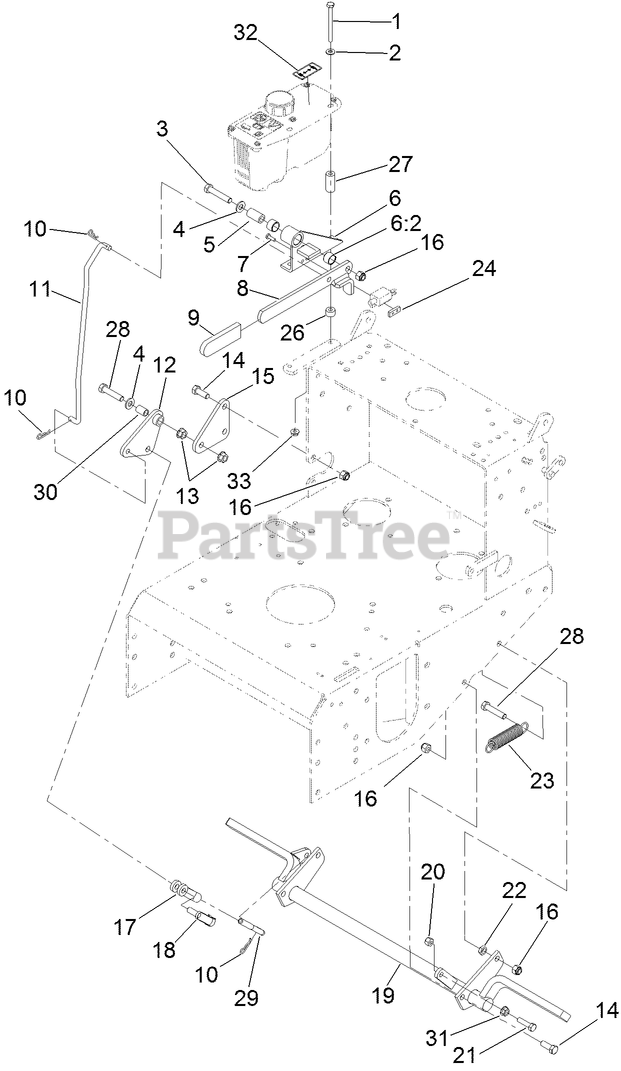

Parking Brake Assembly Parts Diagram

  • Title

1

Toro 321-23

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 1-413344

BUSHING-PIVOT

$21.99

$

In Stock, only 2 left!

0

6

Toro 1-414504

BRACKET ASM

$98.99

$

In Stock, only 1 left!

0

6:2

Toro 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 14

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 119-6675-03

PARK BRAKE LEVER

$63.99

$

Usually ships in 3-6 days

0

9

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

10

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

11

Toro 1-413496

LINKAGE-UPPER

$68.99

$

Usually ships in 3-6 days

0

12

Toro 1-414508

BELLCRANK ASM

$70.99

$

Usually ships in 3-6 days

0

13

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 1-413497

BELLCRANK

$39.99

$

Usually ships in 3-6 days

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

18

Toro 103-2399

PIN-SPRING, CLEVIS

$6.99

$

In Stock, Qty 20+

0

19

Toro 103-2085-03

See Supercession: 126-1599
(Superseded to 126-1599)

$196.99

$

Usually ships in 3-6 days

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 116-3515

SCREW-HH, SPECIAL
(Superseded to 145-7145)

$3.99

$

Usually ships in 3-6 days

0

22

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

23

Toro 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

0

24

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

26

Toro 1-323549

SPACER

$14.99

$

Usually ships in 3-6 days

0

27

Toro 103-2191

SPACER

$8.49

$

Usually ships in 3-6 days

0

28

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 1-413489

LINKAGE-LOWER

$25.99

$

In Stock, only 3 left!

0

30

Toro 1-303548

BUSHING-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 115-1039

DECAL-BRAKE, PARK

$28.99

$

Usually ships in 3-6 days

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
