30070 - Toro 91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp (SN: 314000001 - 314999999) (2014) Lower Control Assembly Parts Diagram

91cm Walk-Behind Mower, T-Bar, Gear Drive, 16hp

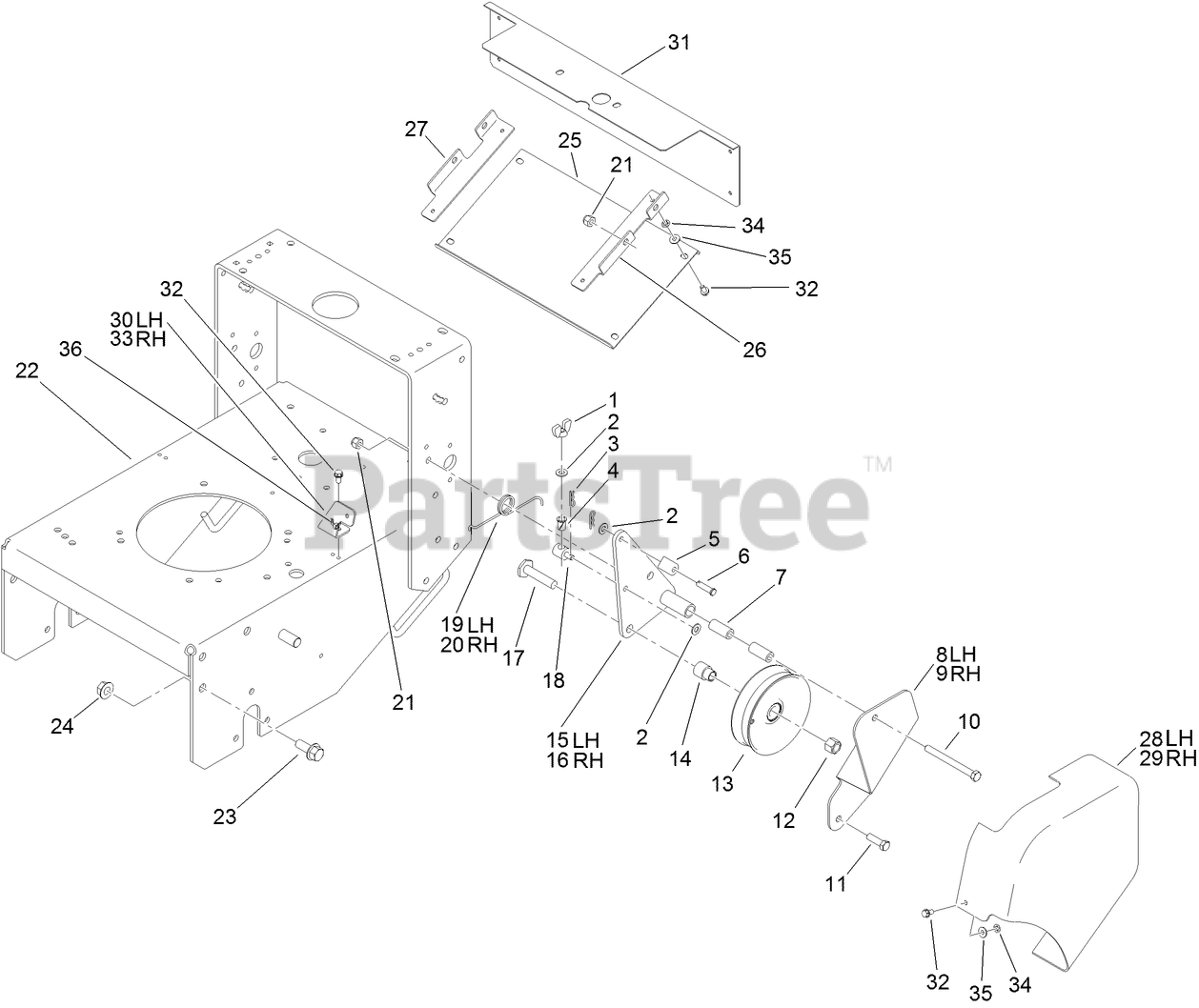

Lower Control Assembly Parts Diagram

  • Title

1

Toro 32103-25

NUT-WING

$5.99

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

4

Toro 52-2890

BUSHING-NYLON

$3.49

$

In Stock, Qty 20+

0

5

Toro 74-0521

FITTING-ROD

$15.99

$

In Stock, only 1 left!

0

6

Toro 283-6

PIN-CLEVIS

$2.49

$

In Stock, Qty 11

0

7

Toro 74-0040

SPACER-PIVOT, IDLER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 108-2725-01

SUPPORT-IDLER, LH

$60.99

$

Usually ships in 3-6 days

0

9

Toro 108-2724-01

SUPPORT-IDLER, RH

$60.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-2800

PULLEY-IDLER

$49.99

$

In Stock, only 1 left!

0

14

Toro 95-2801

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

15

Toro 108-2740-01

ARM-IDLER, LH

$80.99

$

Usually ships in 3-6 days

0

16

Toro 108-2741-01

ARM-IDLER, RH

$80.99

$

Usually ships in 3-6 days

0

17

Toro 51-4450

SCREW-LEVELER

$14.99

$

Usually ships in 3-6 days

0

18

Toro 68-9690

FITTING-ROD

$64.99

$

Usually ships in 3-6 days

0

19

Toro 51-4380

SPRING-TORSION, LH

$18.99

$

In Stock, only 4 left!

0

20

Toro 51-4370

SPRING-TORSION, RH

$18.99

$

In Stock, only 4 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 117-3525-01

FRAME-GEAR

$795.99

$

Usually ships in 3-6 days

0

23

Toro 3234-32

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

24

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

25

Toro 110-5014-01

PANEL-BOTTOM

$83.99

$

Usually ships in 3-6 days

0

26

Toro 110-5012-01

ANGLE-MOUNTING, LEFT

$36.99

$

Usually ships in 3-6 days

0

27

Toro 110-5013-01

ANGLE-MOUNTING, RIGHT

$36.99

$

Usually ships in 3-6 days

0

28

Toro 119-6509

GUARD-BELT, LH

$147.99

$

Usually ships in 3-6 days

0

29

Toro 119-6510

GUARD-BELT, RH

$147.99

$

Usually ships in 3-6 days

0

30

Toro 107-4078-01

BRACKET-MOUNTING, LH

$36.99

$

Usually ships in 3-6 days

0

31

Toro 104-8158-03

GUARD-SHAFT, TRANSMISSION

$139.99

$

Usually ships in 3-6 days

0

32

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

33

Toro 107-4079-01

BRACKET-MOUNTING, RH

$36.99

$

Usually ships in 3-6 days

0

34

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 5

0

35

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
