30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 314000001 - 314999999) (2014) CONTROL PANEL ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

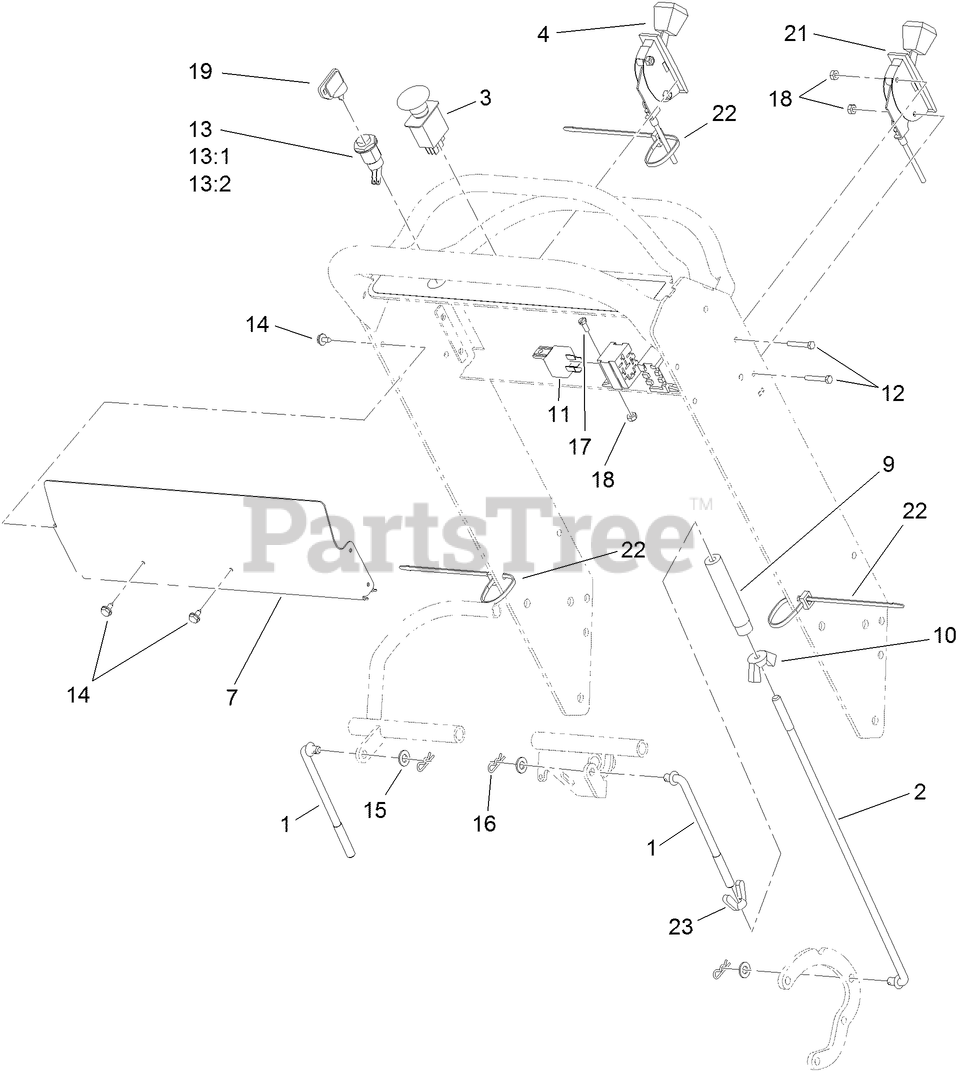

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-0275

ROD-CONTROL, UPPER

$42.99

$

Usually ships in 3-6 days

0

2

Toro 114-0276

ROD-CONTROL, LOWER

$51.99

$

Usually ships in 3-6 days

0

3

Toro 114-0279

SWITCH-PTO, ON-ON-(ON)

$64.99

$

In Stock, Qty 20+

0

4

Toro 119-6539

CABLE-THROTTLE

$93.99

$

In Stock, only 3 left!

0

7

Toro 114-0270-03

COVER-PANEL, CONTROL

$136.99

$

Usually ships in 3-6 days

0

9

Toro 95-1504

TURNBUCKLE

$80.99

$

Usually ships in 3-6 days

0

10

Toro 32103-3

NUT-WING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 105-4145

RELAY

$53.99

$

Usually ships in 3-6 days

0

12

Toro 3290-360

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

13

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 2 left!

0

13:1

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

13:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

17

Toro 32105-8

SCREW-SHH

$2.49

$

Usually ships in 3-6 days

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

21

Toro 110-4995

CABLE-CHOKE

$100.99

$

Usually ships in 3-6 days

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 114-0281

NUT-WING, LH

$12.99

$

Usually ships in 3-6 days

0
