30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 314000001 - 314999999) (2014) DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

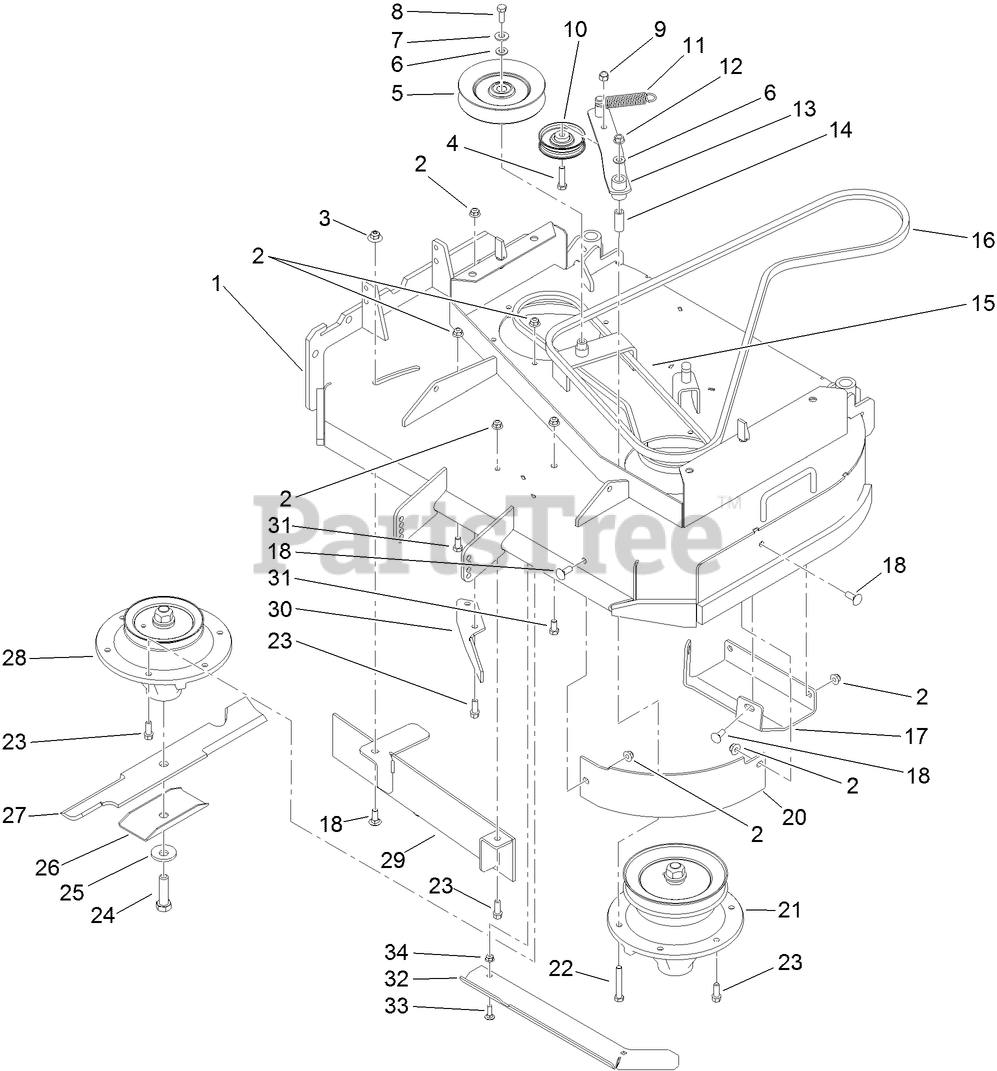

DECK DRIVE AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-4230

DECK AND DECAL ASM

$3367.99

$

Usually ships in 3-6 days

0

2

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-633166

PULLEY-IDLER

$66.99

$

In Stock, Qty 10

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 51-3660

PULLEY-IDLER

$44.99

$

In Stock, only 2 left!

0

11

Toro 105-2673

SPRING-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

12

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Toro 105-0889

IDLER ARM ASM

$176.99

$

Usually ships in 3-6 days

0

14

Toro 51-3641

SLEEVE-PIVOT, IDLER

$22.99

$

In Stock, only 2 left!

0

15

Toro 110-6953

BELT-V

$66.99

$

In Stock, only 2 left!

0

16

Toro 105-0886

BELT-DRIVE, PTO

$225.99

$

Usually ships in 3-6 days

0

17

Toro 110-2037-01

PLATE-SKID

$96.99

$

Usually ships in 3-6 days

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 110-6903-03

BAFFLE-FRONT, LH

$79.99

$

Usually ships in 3-6 days

0

21

Toro 110-6950

SPINDLE ASM

$712.99

$

Usually ships in 3-6 days

0

22

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

25

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

26

Toro 108-2727

STIFFENER-BLADE

$38.99

$

In Stock, only 2 left!

0

27

Toro 105-7781-03

BLADE-18IN, HI FLOW

$27.99

$

In Stock, Qty 20+

0

28

Toro 110-0728

SPINDLE ASM

$543.99

$

Usually ships in 3-6 days

0

29

Toro 121-1779-03

BAFFLE

$106.99

$

Usually ships in 3-6 days

0

30

Toro 110-0754-01

BAFFLE-DISCHARGE

$43.99

$

Usually ships in 3-6 days

0

31

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

32

Toro 119-7839-01

EXTENDER-DECK

$106.99

$

Usually ships in 3-6 days

0

33

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
