30071 - Toro 91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp (SN: 314000001 - 314999999) (2014) FUEL SYSTEM ASSEMBLY Parts Diagram

91cm Walk-Behind Mower, T-Bar, Hydro Drive, 16hp

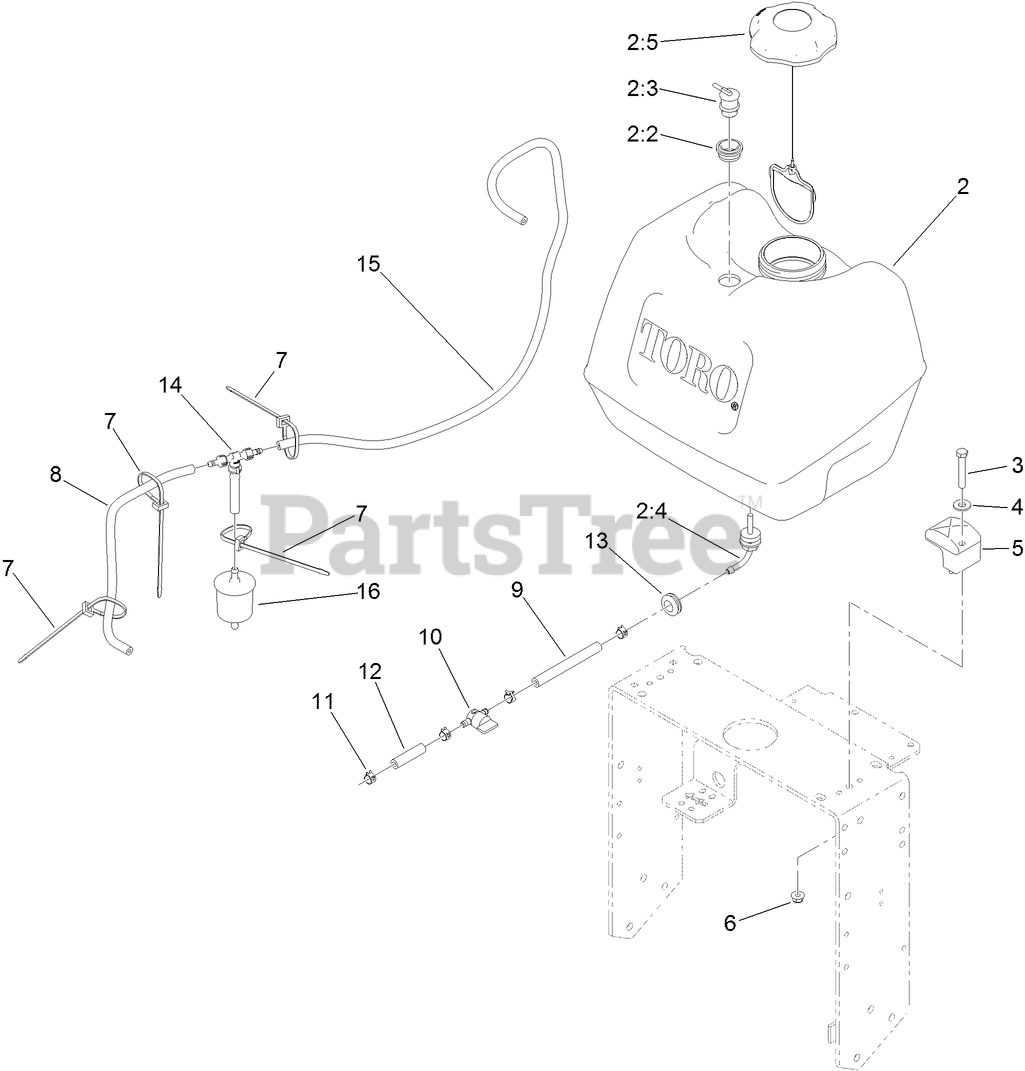

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

2

Toro 119-7899

FUEL TANK ASM
(Superseded to 126-1526)

$

$

Not available

2:2

Toro 114-0284

GROMMET

$3.49

$

In Stock, Qty 20+

0

2:3

Toro 114-0285

VALVE-ROLLOVER

$20.99

$

In Stock, Qty 16

0

2:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$41.99

$

In Stock, Qty 6

0

2:5

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$30.99

$

In Stock, Qty 20+

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

4

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 115-7872

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 109-0650

HOSE-FUEL

$8.99

$

In Stock, only 1 left!

0

10

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

11

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

12

Toro 99-9415

HOSE-FUEL

$3.99

$

In Stock, only 3 left!

0

13

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

14

Toro 116-5464

TEE AND CHECK

$51.99

$

In Stock, only 1 left!

0

15

Toro 116-4346

HOSE-EMISSIONS

$12.99

$

In Stock, only 2 left!

0

16

Toro 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 20+

0
