30072 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 311000001 - 311999999) (2011) Deck Assembly Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

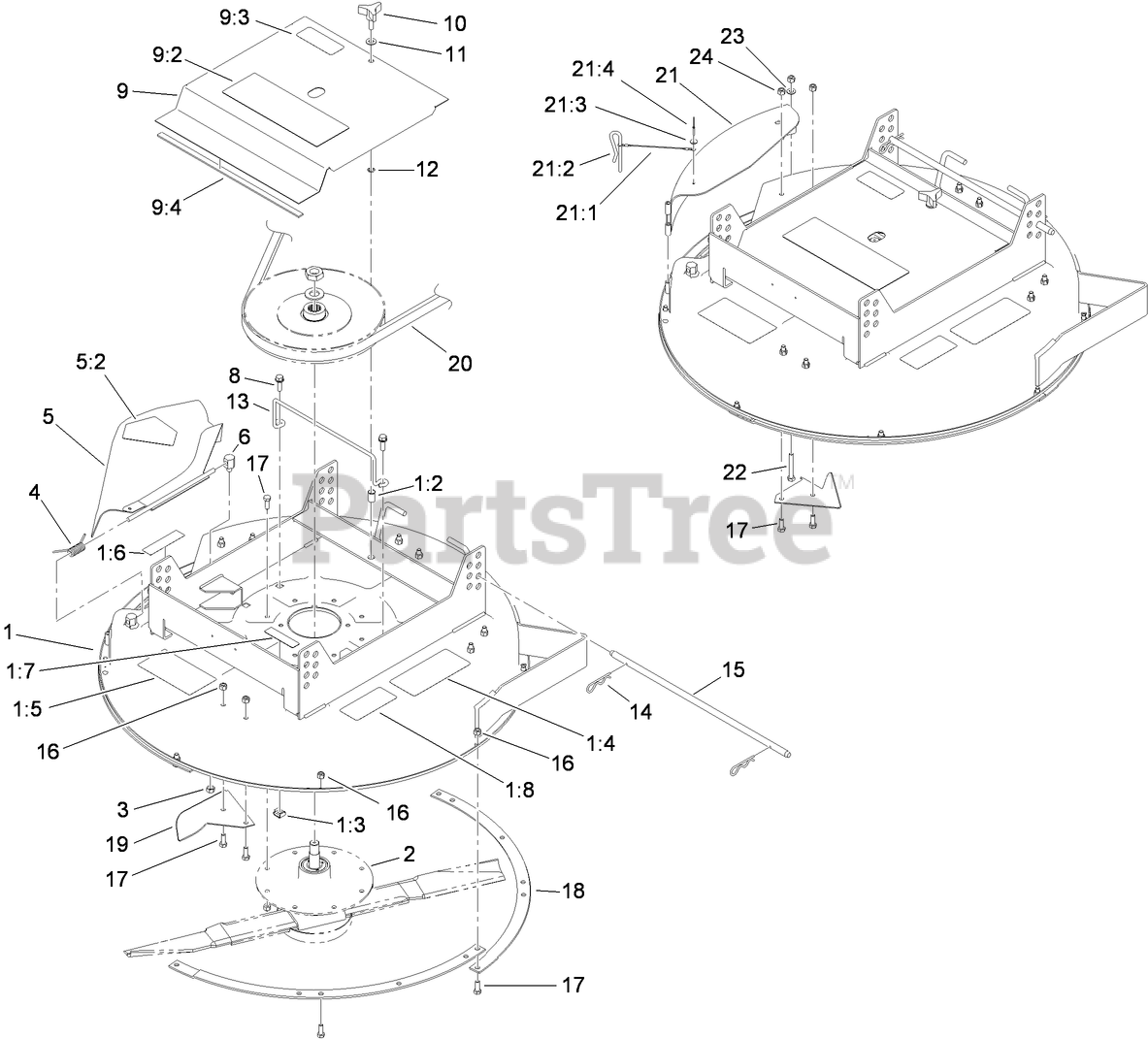

Deck Assembly Parts Diagram

  • Title

1

Toro 14-5079

32 INCH DECK ASM

$

$

Not available

1:2

Toro 32148-10

NUT-CLINCH

$9.49

$

Usually ships in 3-6 days

0

1:3

Toro 3290-496

NUT-RETAINER

$7.49

$

In Stock, Qty 5

0

1:4

Toro 93-1159

DECAL-HOC

$

$

Not available

1:5

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

1:6

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

1:7

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

1:8

Toro 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

3

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

4

Toro 28-8010

SPRING

$28.99

$

Usually ships in 3-6 days

0

5

Toro 44-5930

DEFLECTOR ASM

$215.99

$

Usually ships in 3-6 days

0

5:2

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

6

Toro 28-7350

POST-PIVOT

$42.99

$

Usually ships in 3-6 days

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

9

Toro 119-7888

BELT COVER

$254.99

$

Usually ships in 3-6 days

0

9:2

Toro 106-0710

DECAL

$44.99

$

Usually ships in 3-6 days

0

9:3

Toro 54-0910

DECAL-HOT

$

$

Not available

9:4

Toro 67-6180

STRIP-MAGNETIC

$

$

Not available

10

Toro 104-8587

KNOB

$

$

Not available

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

13

Toro 74-0570

GUIDE-BELT

$85.99

$

Usually ships in 3-6 days

0

14

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

15

Toro 67-6140

ROD-SUPPORT

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

18

Toro 92-5419-03

RING-RECYCLER

$29.99

$

Usually ships in 3-6 days

0

19

Toro 80-2630-03

KICKER

$37.99

$

In Stock, only 3 left!

0

20

Toro 67-6920

V-BELT

$74.99

$

Usually ships in 3-6 days

0

21

Toro 92-5422

MULCHER COVER ASM

$811.99

$

Usually ships in 3-6 days

0

21:1

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

21:2

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

21:3

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

21:4

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

22

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 14

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
