30116 - Toro ProLine Walk-Behind Mower, Gear Drive, 16hp (SN: 006000001 - 006999999) (1986) Handle Assembly Parts Diagram

ProLine Walk-Behind Mower, Gear Drive, 16hp

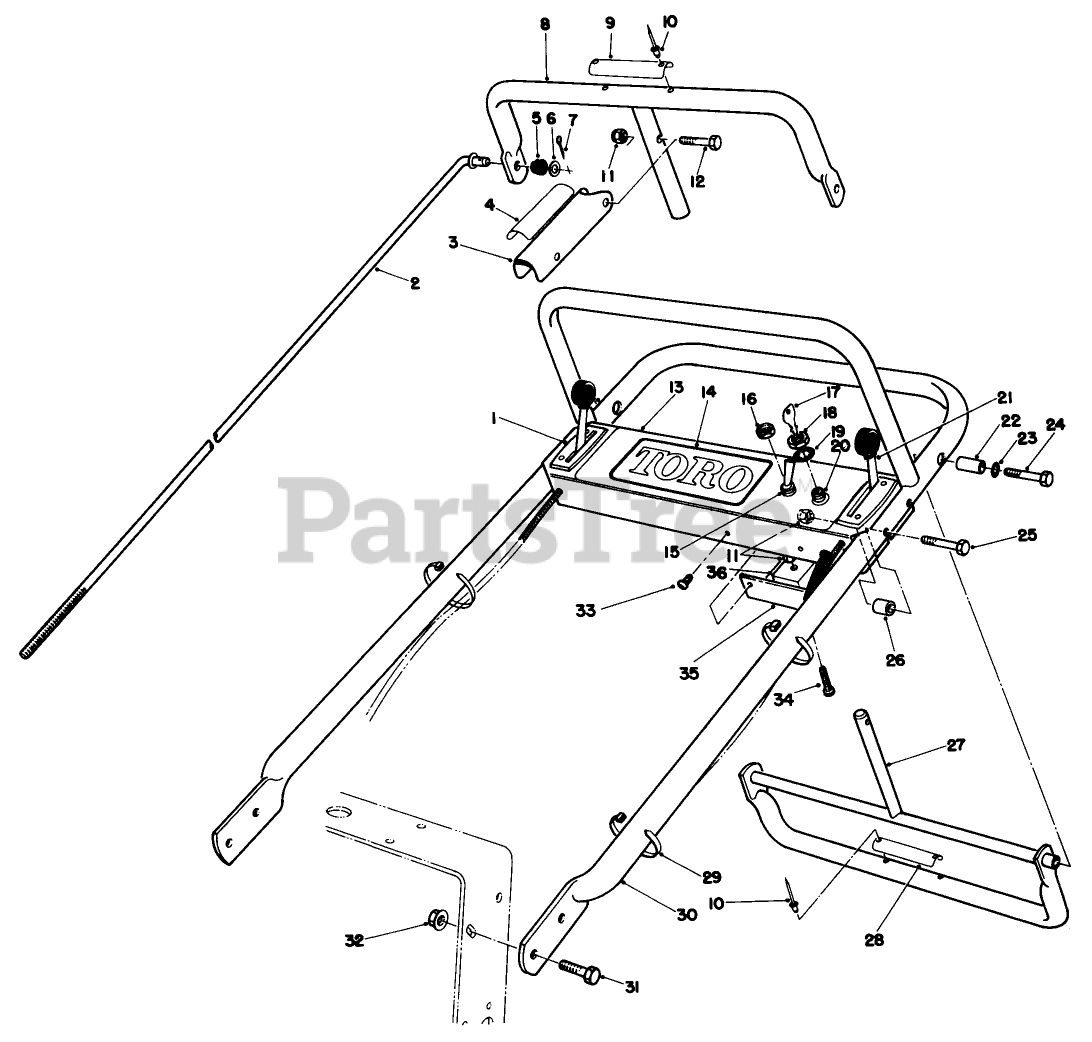

Handle Assembly Parts Diagram

  • Title

1

Toro 54-3060

DISCONTINUED

$

$

Not available

2

Toro 54-3070

DISCONTINUED

$

$

Not available

3

Toro 51-4850

See Supercession: 51-4850-03
(Superseded to 51-4850-03)

$43.99

$

Usually ships in 3-6 days

0

4

Toro 52-2010

DECAL-LEVER, PARKING

$6.49

$

Usually ships in 3-6 days

0

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro 51-4730

See Supercession: 51-4730-03
(Superseded to 51-4730-03)

$

$

Not available

9

Toro 54-2740

DISCONTINUED

$

$

Not available

10

Toro 3290-54

RIVET-BLIND

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 5

0

13

Toro 54-2860

DISCONTINUED
(Superseded to 74-0790)

$

$

Not available

14

Toro 54-2870

DISCONTINUED

$

$

Not available

15

Toro 37-2610

DISCONTINUED
(Superseded to 92-6328)

$

$

Not available

16

Toro 218-500

See Supercession: 3218-19
(Superseded to 3218-19)

$

$

Not available

17

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 20+

0

18

Toro 218-461

NUT-HH

$4.49

$

In Stock, only 1 left!

0

19

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 23-0660

SWITCH-STARTER

$26.99

$

In Stock, Qty 6

0

21

Toro 54-3050

THROTTLE CONTROL

$181.99

$

Usually ships in 3-6 days

0

22

Toro 51-4790

DISCONTINUED

$

$

Not available

23

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

24

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

26

Toro 54-2970

SPACER

$32.99

$

Usually ships in 3-6 days

0

27

Toro 51-4760

See Supercession: 106-5477-03
(Superseded to 106-5477-03)

$229.99

$

Usually ships in 3-6 days

0

28

Toro 52-2120

DISCONTINUED

$

$

Not available

29

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

30

Toro 51-4550

See Supercession: 51-4550-01
(Superseded to 51-4550-01)

$

$

Not available

31

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

32

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

33

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

35

Toro 57-5810

BOTTOM PANEL *B

$

$

Not available

36

Toro 37-7600

RECTIFIER-BRIDGE

$29.99

$

Usually ships in 3-6 days

0
