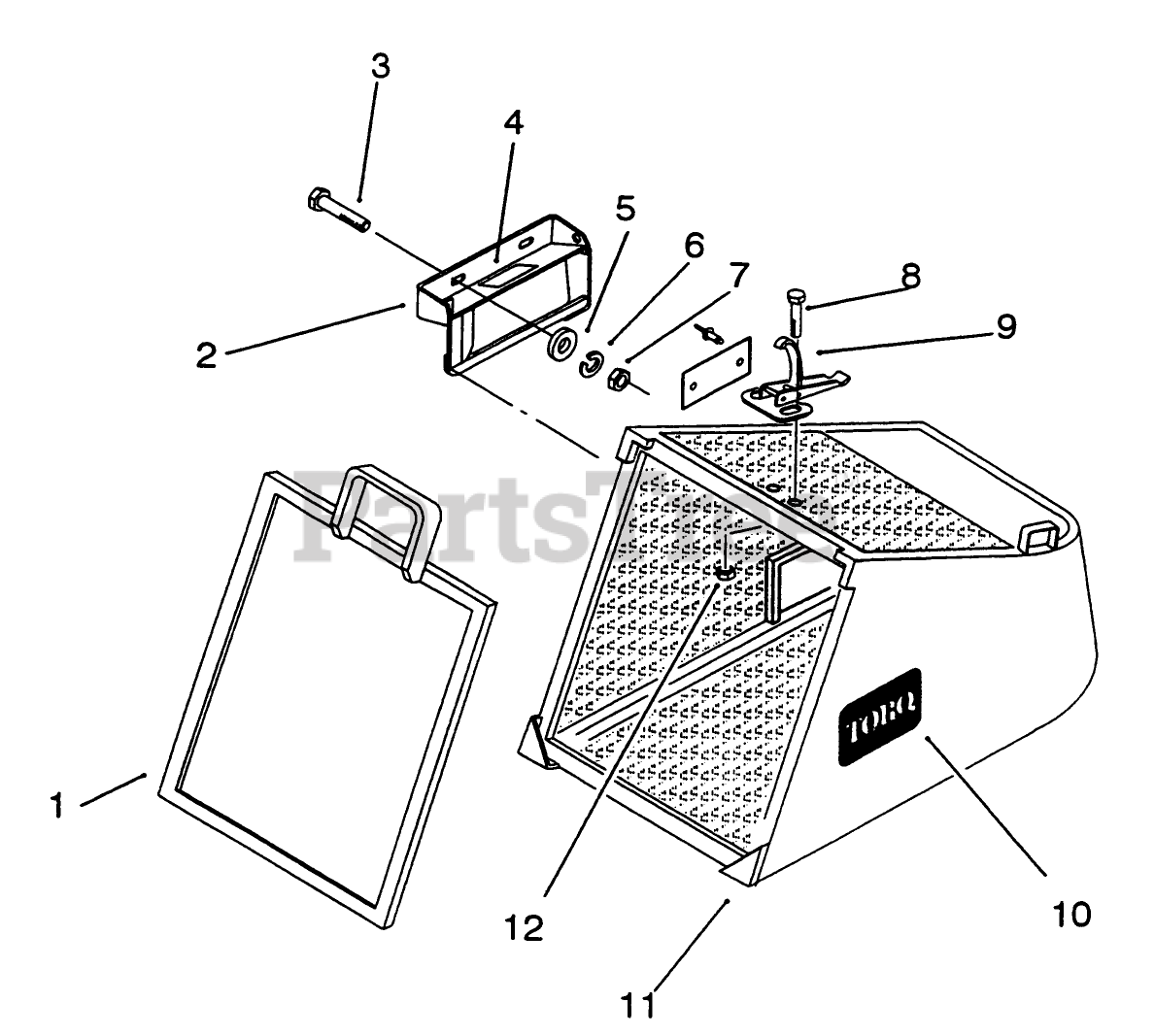

30130 - Toro 37" Steel Bag, 3.5 bu. for Floating Mid-Size Mowers (SN: 059000001 - 059999999) (1995) Hopper Assembly Parts Diagram

37" Steel Bag, 3.5 bu. for Floating Mid-Size Mowers

Hopper Assembly Parts Diagram

  • Title

1

Toro 92-7692

DISCONTINUED

$

$

Not available

2

Toro 92-7693

BRACKET W/DECAL

$641.99

$

Usually ships in 3-6 days

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-7664

DECAL - DANGER

$50.99

$

Usually ships in 3-6 days

0

5

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3217-12

NUT-HEX

$4.49

$

Usually ships in 3-6 days

0

8

Toro 32144-107

SCREW

$0.99

$

Usually ships in 3-6 days

0

9

Toro 249-21

CLAMP-SLOTTED

$22.99

$

In Stock, only 2 left!

0

10

Toro 67-7310

DECAL

$70.99

$

Usually ships in 3-6 days

0

11

Hopper Decal (Incl. Ref. #10)

Note: Order Model No.30130

$

$

Not available

12

Toro 32149-9

NUT-HEX, KEPS

$1.99

$

Usually ships in 3-6 days

0
