30132 - Toro Electric Start Kit (SN: 005000001 - 005999999) (1985) Wiring Assembly Parts Diagram

Electric Start Kit

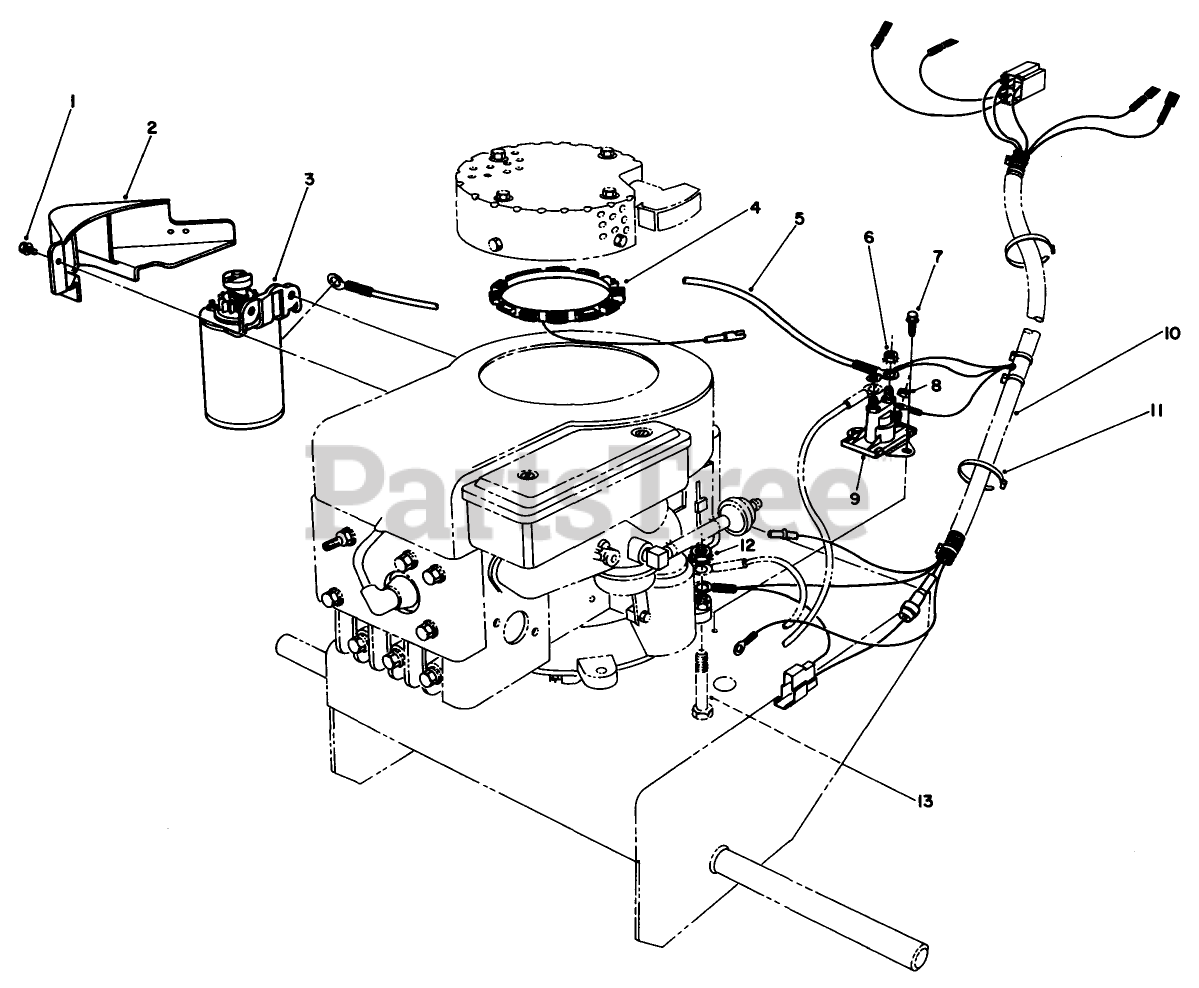

Wiring Assembly Parts Diagram

  • Title

1

Toro 93410

Screw

$

$

Currently unavailable

2

Toro 395405

Cover-Starter

$

$

Currently unavailable

3

Toro 394951

Starter Motor (Incl. Ref. #1 2)

$

$

Currently unavailable

4

Toro 392595

Alternator

$

$

Currently unavailable

5

Toro 28-3891

WIRE-SOLENOID/STARTER

$30.99

$

Usually ships in 3-6 days

0

6

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

7

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

8

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

9

Toro 44-9380

See Supercession: 99-5887
(Superseded to 99-5887)

$102.99

$

Usually ships in 3-6 days

0

10

Toro 54-3020

DISCONTINUED

$

$

Not available

11

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

13

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
