30133 - Toro 32" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) Drive Spindle Assembly Parts Diagram

32" Recycler Mower Deck

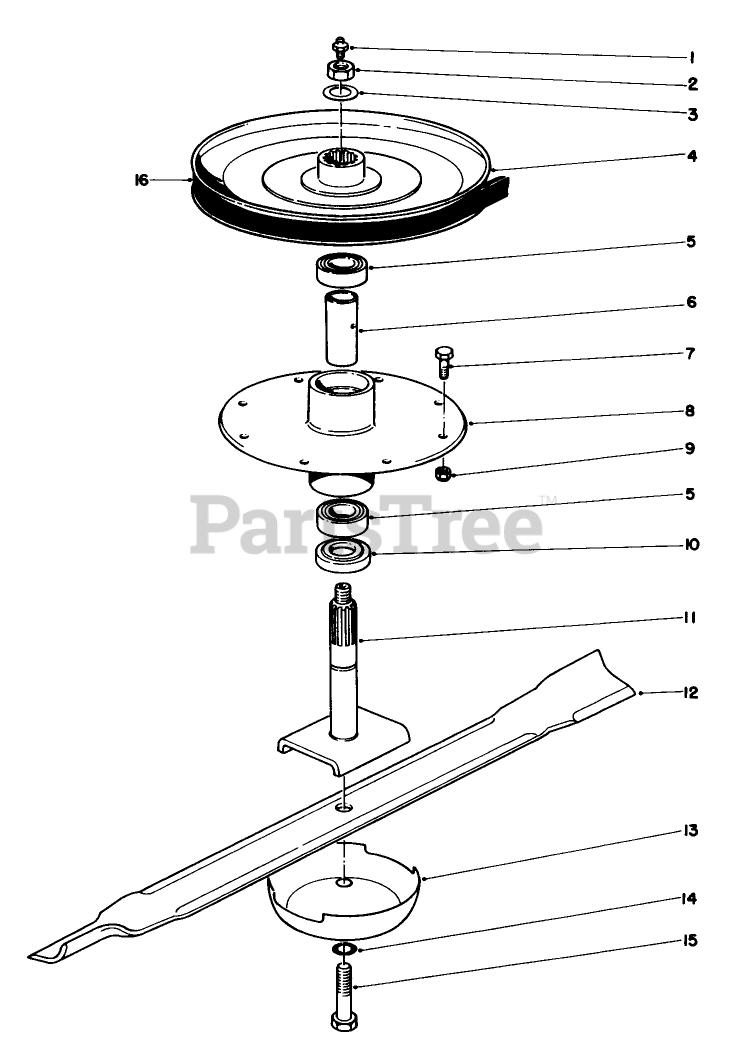

Drive Spindle Assembly Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

2

Toro 32152-6

NUT-LOCK, CONE

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

4

Toro 74-0580

PULLEY ASM

$325.99

$

Usually ships in 3-6 days

0

5

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

6

Toro 67-6070

SPACER-BEARING

$62.99

$

Usually ships in 3-6 days

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

8

Toro 67-6060

See Supercession: 67-6060-03
(Superseded to 67-6060-03)

$621.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 67-6080

SPACER

$111.99

$

Usually ships in 3-6 days

0

11

Toro 67-6040

See Supercession: 99-5880
(Superseded to 99-5880)

$

$

Not available

12

Toro 33-4750

See Supercession: 33-4750-03
(Superseded to 33-4750-03)

$63.99

$

In Stock, only 2 left!

0

13

Toro 7-3522

See Supercession: 92-6313
(Superseded to 92-6313)

$58.99

$

In Stock, only 2 left!

0

14

Toro 3253-53

Washer-Lock

$

$

Currently unavailable

15

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

16

Toro 67-6920

V-BELT

$74.99

$

Usually ships in 3-6 days

0
