30133 - Toro 32" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) Carrier Frame Assembly Parts Diagram

32" Recycler Mower Deck

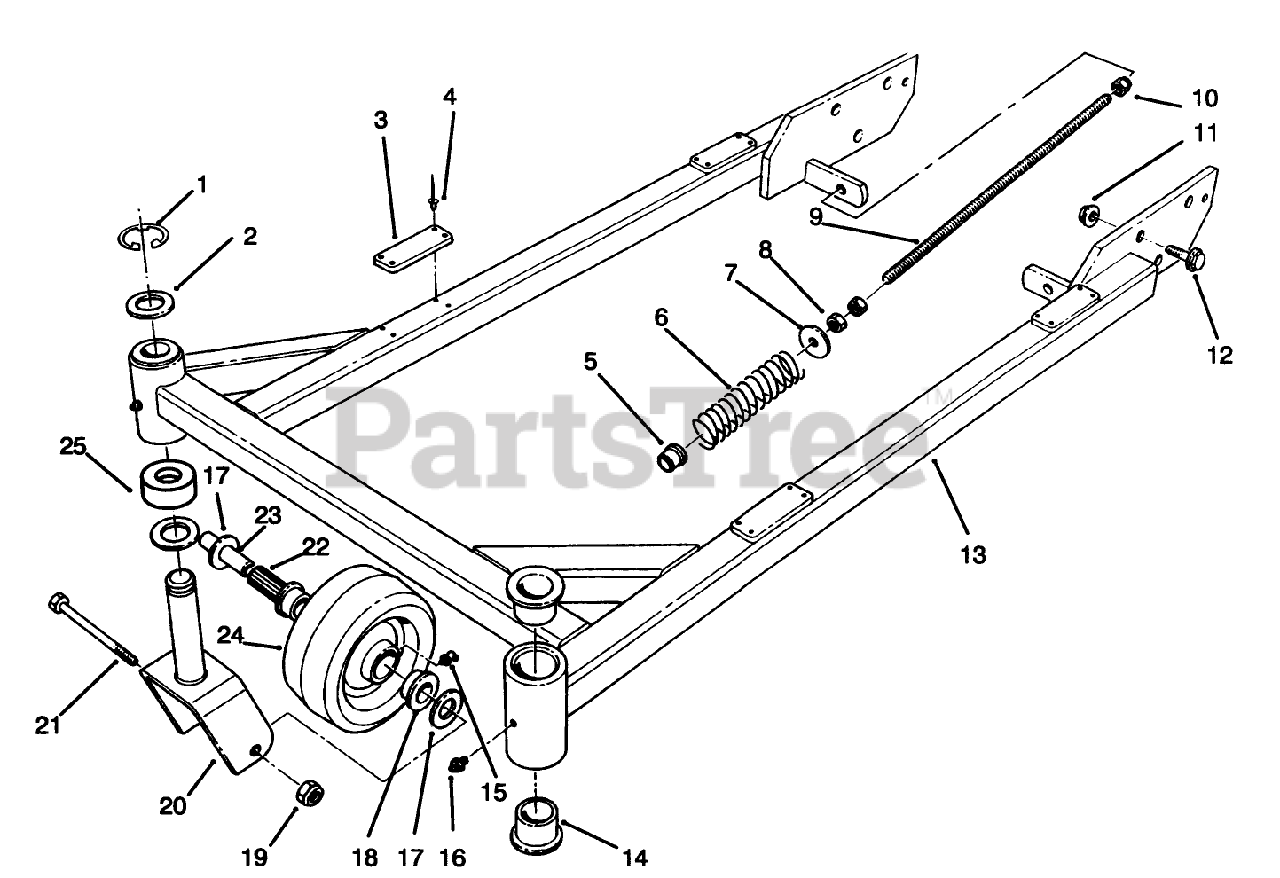

Carrier Frame Assembly Parts Diagram

  • Title

1

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 12

0

2

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

3

Toro 74-0330

PAD-RUBBER

$14.99

$

Usually ships in 3-6 days

0

4

Toro 3269-24

RIVET

$2.99

$

In Stock, only 2 left!

0

5

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

6

Toro 74-0290

SPRING

$31.99

$

Usually ships in 3-6 days

0

7

Toro 41-8440

WASHER

$1.99

$

Usually ships in 3-6 days

0

8

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 74-0310

SHAFT-ADJUSTING

$74.99

$

In Stock, only 2 left!

0

10

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

12

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

13

Toro 74-0080

CARRIER FRAME ASM

$

$

Not available

14

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$12.99

$

In Stock, only 3 left!

0

15

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, Qty 5

0

16

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

17

Toro 67-6570

SPACER-WHEEL

$20.99

$

Usually ships in 3-6 days

0

18

Toro 62-5580

BEARING-OUTSIDE

$7.99

$

In Stock, Qty 18

0

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 8

0

20

Toro 93-1164

See Supercession: 93-1164-01
(Superseded to 93-1164-01)

$

$

Not available

21

Toro 325-18

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

22

Toro 63-8580

BEARING-ROLLER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 67-6220

SPANNER

$31.99

$

In Stock, only 1 left!

0

24

Toro 63-8400

CASTER WHEEL ASM

$99.99

$

In Stock, only 2 left!

0

25

Toro 93-1166

SPACER-CASTOR

$42.99

$

Usually ships in 3-6 days

0
