30133 - Toro 32" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) Drive Spindle Assembly Parts Diagram

32" Recycler Mower Deck

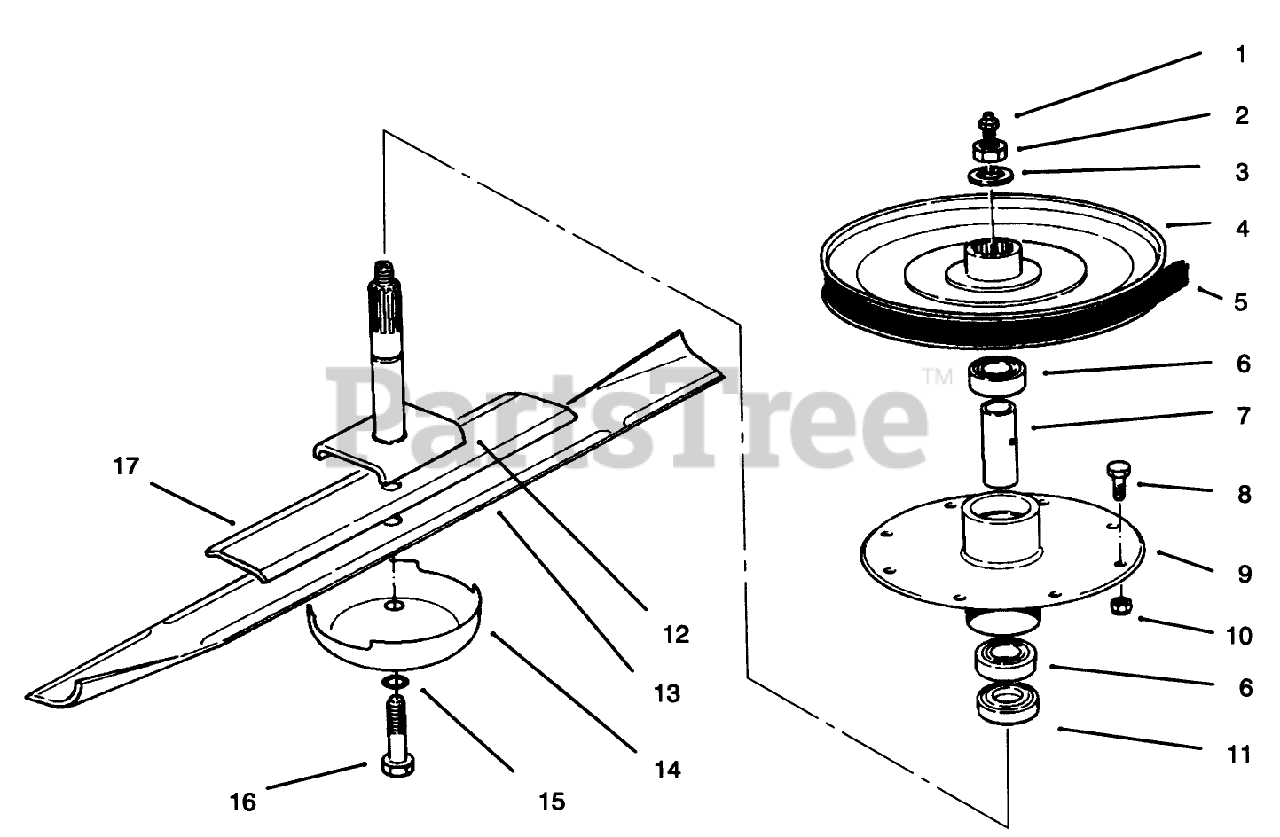

Drive Spindle Assembly Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

2

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

3

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

4

Toro 74-0580

PULLEY ASM

$325.99

$

Usually ships in 3-6 days

0

5

Toro 67-6920

V-BELT

$74.99

$

Usually ships in 3-6 days

0

6

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

7

Toro 67-6070

SPACER-BEARING

$62.99

$

Usually ships in 3-6 days

0

8

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

9

Toro 67-6060

See Supercession: 67-6060-03
(Superseded to 67-6060-03)

$621.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 67-6080

SPACER

$111.99

$

Usually ships in 3-6 days

0

12

Toro 92-5763

SHAFT-SPINDLE

$376.99

$

Usually ships in 3-6 days

0

13

Toro 80-4430

See Supercession: 80-4430-03
(Superseded to 80-4430-03)

$56.99

$

In Stock, Qty 15

0

14

Toro 92-6313

CUP-SCALP, ANTI

$58.99

$

In Stock, only 2 left!

0

15

Toro 3253-23

WASHER-LOCK

$5.49

$

In Stock, only 3 left!

0

16

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

17

Toro 82-4770

BLADE SPACER ASSEMBLY

$168.99

$

Usually ships in 3-6 days

0
