30137 - Toro 37" Recycler Mower Deck (SN: 200000001 - 200999999) (2000) 37" Drive Spindle Assembly Parts Diagram

37" Recycler Mower Deck

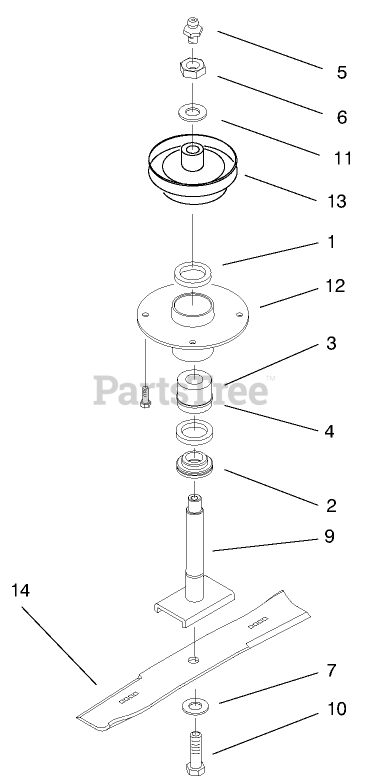

37" Drive Spindle Assembly Parts Diagram

  • Title

1

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

2

Toro 27-0950

SPACER

$35.99

$

In Stock, only 2 left!

0

3

Toro 27-0960

BEARING ASM
(Superseded to 120-3246)

$205.99

$

Usually ships in 3-6 days

0

4

Toro 27-5970

SPACER-SET, MATCHED

$77.99

$

Usually ships in 3-6 days

0

5

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

6

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

7

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 51-3552

SHAFT-SPINDLE

$409.99

$

Usually ships in 3-6 days

0

10

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

11

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 20+

0

12

Toro 82-5990

SPINDLE HOUSING *B

$

$

Not available

13

Toro 84-4360

PULLEY-CENTER INS.

$

$

Not available

14

Toro 93-0107

See Supercession: 93-0107-03
(Superseded to 93-0107-03)

$53.99

$

Usually ships in 3-6 days

0
