30138 - Toro 92cm Side-Discharge Mower Deck (SN: 230000001 - 230999999) (2003) Deck and Pulleys Assembly Parts Diagram

92cm Side-Discharge Mower Deck

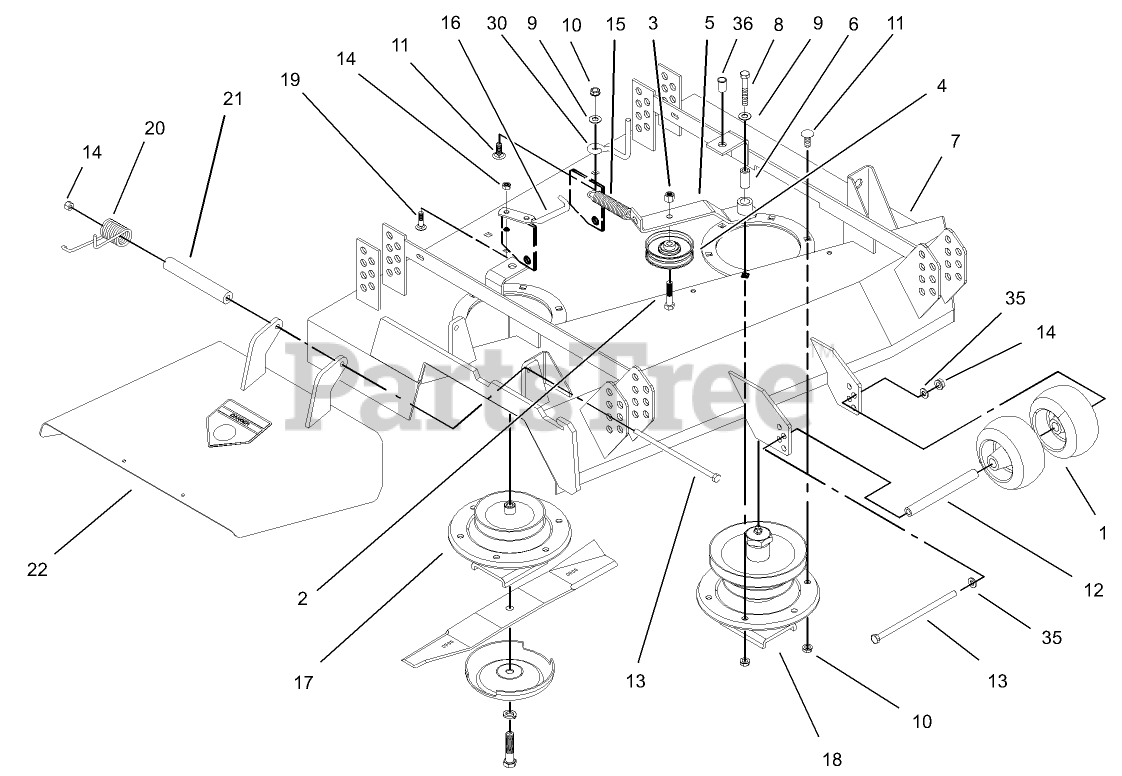

Deck and Pulleys Assembly Parts Diagram

  • Title

1

Toro 68-2730

See Supercession: 1-603299
(Superseded to 1-603299)

$26.99

$

In Stock, Qty 20+

0

2

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

3

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

4

Toro 51-3660

PULLEY-IDLER

$44.99

$

In Stock, only 2 left!

0

5

Toro 56-4341-03

IDLER ARM ASM

$100.99

$

Usually ships in 3-6 days

0

6

Toro 51-3641

SLEEVE-PIVOT, IDLER

$22.99

$

In Stock, only 2 left!

0

7

Toro 106-0742-01

DECK ASM

$3779.99

$

Usually ships in 3-6 days

0

8

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

12

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

13

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 13

0

14

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 51-3650

SPRING-EXTENSION

$27.99

$

In Stock, only 2 left!

0

16

Toro 56-4360

ROD-SPRING

$

$

Not available

17

Toro 27-0870

SPINDLE ASM

$552.99

$

Usually ships in 3-6 days

0

18

Toro 54-7781

SPINDLE ASM

$1206.99

$

Usually ships in 3-6 days

0

19

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

20

Toro 104-8554

SPRING-TORSION

$27.99

$

Usually ships in 3-6 days

0

21

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

22

Toro 104-1188-01

See Supercession: 105-4623
(Superseded to 105-4623)

$411.99

$

Usually ships in 3-6 days

0

30

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 5

0

35

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Toro 32148-10

NUT-CLINCH

$9.49

$

Usually ships in 3-6 days

0
