30144 - Toro 44" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) Cutting Unit Assembly Parts Diagram

44" Side-Discharge Mower Deck

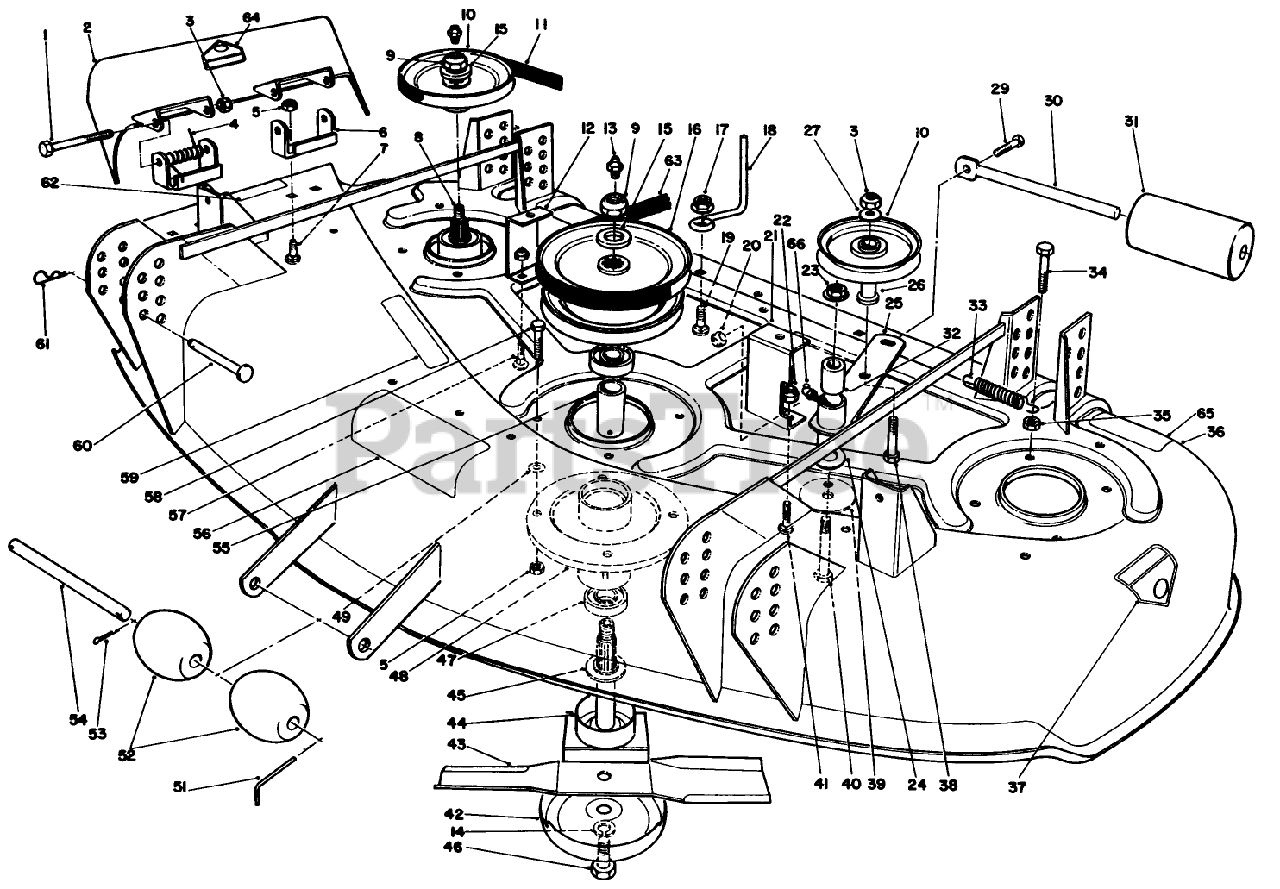

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

2

Toro 13-3899

DEFLECTOR

$

$

Not available

Toro 57-2250

(Incl. Ref. #64)

$

$

Currently unavailable

3

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

4

Toro 40-6230

SPRING

$

$

Not available

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

6

Toro 55-8320

PIVOT BRKT WA

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.99

$

In Stock, only 1 left!

0

8

Toro 71-2780

See Supercession: 71-2780-03
(Superseded to 71-2780-03)

$

$

Not available

9

Toro 32146-20

NUT-HEX

$4.49

$

In Stock, Qty 16

0

10

Toro 67-7690

PULLEY-DECK

$102.99

$

Usually ships in 3-6 days

0

11

Toro 27-1160

V-BELT

$60.99

$

In Stock, Qty 5

0

12

Toro 54-3230

See Supercession: 54-3230-03
(Superseded to 54-3230-03)

$

$

Not available

13

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

14

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

16

Toro 67-7650

PULLEY-CENTER

$153.99

$

Usually ships in 3-6 days

0

17

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 5

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 54-3240

See Supercession: 54-3240-03
(Superseded to 54-3240-03)

$

$

Not available

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 32128-19

NUT-HF

$1.99

$

In Stock, Qty 20+

0

24

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0

25

Toro 92-1657

IDLER ARM ASM

$

$

Not available

26

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

27

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

29

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 62-4480

ROD-ROLLER

$22.99

$

Usually ships in 3-6 days

0

31

Toro 36-1740

ROLLER-DECK

$49.99

$

In Stock, only 2 left!

0

32

Toro 79-2760

SPACER

$

$

Not available

33

Toro 54-2730

SPRING-EXTENSION

$26.99

$

In Stock, only 2 left!

0

34

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

35

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

36

Toro 13-8649

DISCONTINUED
(Superseded to 94-5836)

$

$

Not available

37

Toro 43-8480

DECAL-DANGER

$7.99

$

In Stock, only 3 left!

0

38

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

39

Toro 20-9530

WASHER-END

$37.99

$

Usually ships in 3-6 days

0

40

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

41

Toro 3229-3

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

42

Toro 67-7561

CUP-SCALP, ANTI

$47.99

$

In Stock, only 2 left!

0

43

Toro 54-0010

See Supercession: 54-0010-03
(Superseded to 54-0010-03)

$33.99

$

In Stock, Qty 20+

0

44

Toro 71-2790

SHAFT-SPINDLE

$376.99

$

Usually ships in 3-6 days

0

45

Toro 67-7570

SPACER-SPINDLE

$

$

Not available

46

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

47

Toro 251-257

BEARING-BALL

$18.99

$

In Stock, only 4 left!

0

48

Toro 67-7590

HOUSING-SPINDLE

$360.99

$

Usually ships in 3-6 days

0

49

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

51

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 3 left!

0

52

Toro 29-4820

ROLLER

$19.99

$

In Stock, Qty 6

0

53

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

54

Toro 40-6400

SHAFT-ROLLER

$45.99

$

In Stock, only 3 left!

0

55

Toro 67-7580

SPACER-BEARING

$

$

Not available

56

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

57

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

58

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

59

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

60

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

61

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

62

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

63

Toro 54-2750

V-BELT, DRIVE

$64.99

$

Usually ships in 3-6 days

0

64

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

65

Toro 68-8340

DECAL-TORQUE

$23.99

$

In Stock, only 2 left!

0

66

Toro 111420

See Supercession: 302-11
(Superseded to 302-11)

$1.99

$

In Stock, Qty 5

0

Toro 55-4940

See Supercession: 55-4940-03
(Superseded to 55-4940-03)

Note: Not illustrated

$42.99

$

In Stock, only 1 left!

0

Toro 67-7660

SPINDLE HOUSING ASM

Note: Not illustrated

$1062.99

$

Usually ships in 3-6 days

0

Toro 67-7600

SPINDLE HOUSING ASM

Note: Not illustrated

$793.99

$

Usually ships in 3-6 days

0
